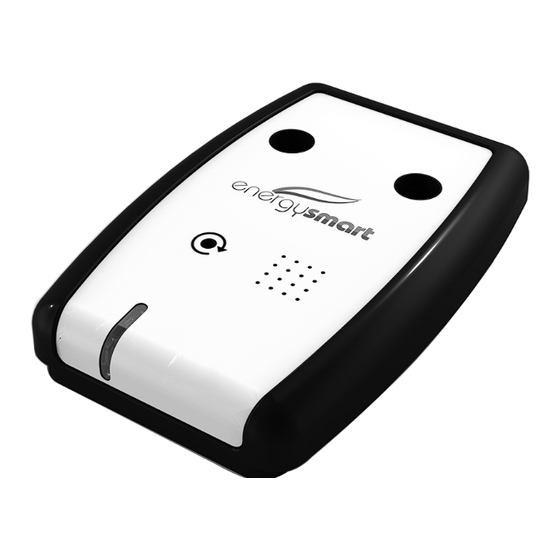

- Page 1 Installation, Operation and Troubleshooting Instructions Energy Smart Electric ® Water Heater Controller Table of Contents Installation and Setup, 2 Operation, 5 Troubleshooting, 7 Regulatory Notices, 11 ® 100261231...
- Page 2 WARNING! Even if the water heater’s temperature INSTALLATION AND SETUP control is set to a relatively low temperature, hot water can scald. Install thermostatic mixing valves at each point-of-use to reduce the risk of scalding. Get to know your Energy Smart ®...
- Page 3 icon will disappear from the screen. This You will connect to a different network during the indicates that the control buttons have been next step. unlocked. See Figure 3. Figure 4. Step 9: Touch the Grid Enabled button (top right). Example: List of SSIDs Displayed in The Grid Enabled button must be lit before Available Wireless Networks...
- Page 4 To get started with Iris , follow these steps: ® Figure 7. Step 1: Register, then sign in to your Iris account at: ® www.lowes.com/iris Step 2: Click the ‘Add Devices’ button.
- Page 5 OPERATION Status LED The green LED on top of the controller indicates its User Controls and Indicators connection status or error state as described below. See Figure 8. Reset Button Beeper See Troubleshooting for an explanation of each fl ash code (page 8).
- Page 6 Enable it as described in Enabled above. Estimated Hot Water Level To disable the controller so that the water heater can only The estimated hot water level may be viewed through Iris ® be controlled locally: This parameter is not confi gurable.
- Page 7 TROUBLESHOOTING Frequently Asked Questions The power to my house went out. When it came One of the parameters shown in Iris is different ® back on, I couldn’t control my water heater than what is displayed on the water heater’s through Iris .
- Page 8 Status LED Flash Codes Status LED: Brief fl ash On/Off Description Power Up Beeper One Brief Beep Reset Button Effect Notes / Remedy This fl ash code occurs when the controller is powering up. See Note 1 at the end of the troubleshooting section. Status LED 3 Seconds On, 3 Seconds Off Description...
- Page 9 Status LED Flash Codes (Continued) Status LED: Brightens gradually, dims suddenly. Description Access Point (AP) Mode Beeper None Reset Button Effect A reset will cause the controller to re-scan the WiFi networks. To reset the controller, press the reset button 8 times with a paper clip (about once per second) until the controller beeps.
- Page 10 2 Flashes, PAUSE, 3 Flashes, PAUSE, 3 Seconds On, Off. (Repeats.) Description No Connectivity Beeper None Button Press Effect None Notes / Remedy Call 855-469-IRIS. Help is also available at www.lowes.com/iris/support. Status LED: Brightens Gradually, Dims Gradually. Description Search Mode Beeper None Button Press Effect To change the controller’s state to Access Point (AP) mode, press the reset button 8 times...
- Page 11 Status LED: Description Power OFF Beeper None Button Press Effect None Notes / Remedy See Note 1. NOTES: 1. If power is lost and then turned back on again (power OFF/ON), the controller will be disabled and the water heater will be controlled locally.
- Page 12 Copyright © 2014 A.O. Smith Corporation. All Rights Reserved. Energy Smart is a registered trademark of American Water Heater Company. All Rights Reserved. ® IRIS and IRIS and Wave Design are trademarks or registered trademarks of LF, LLC. All Rights Reserved.
