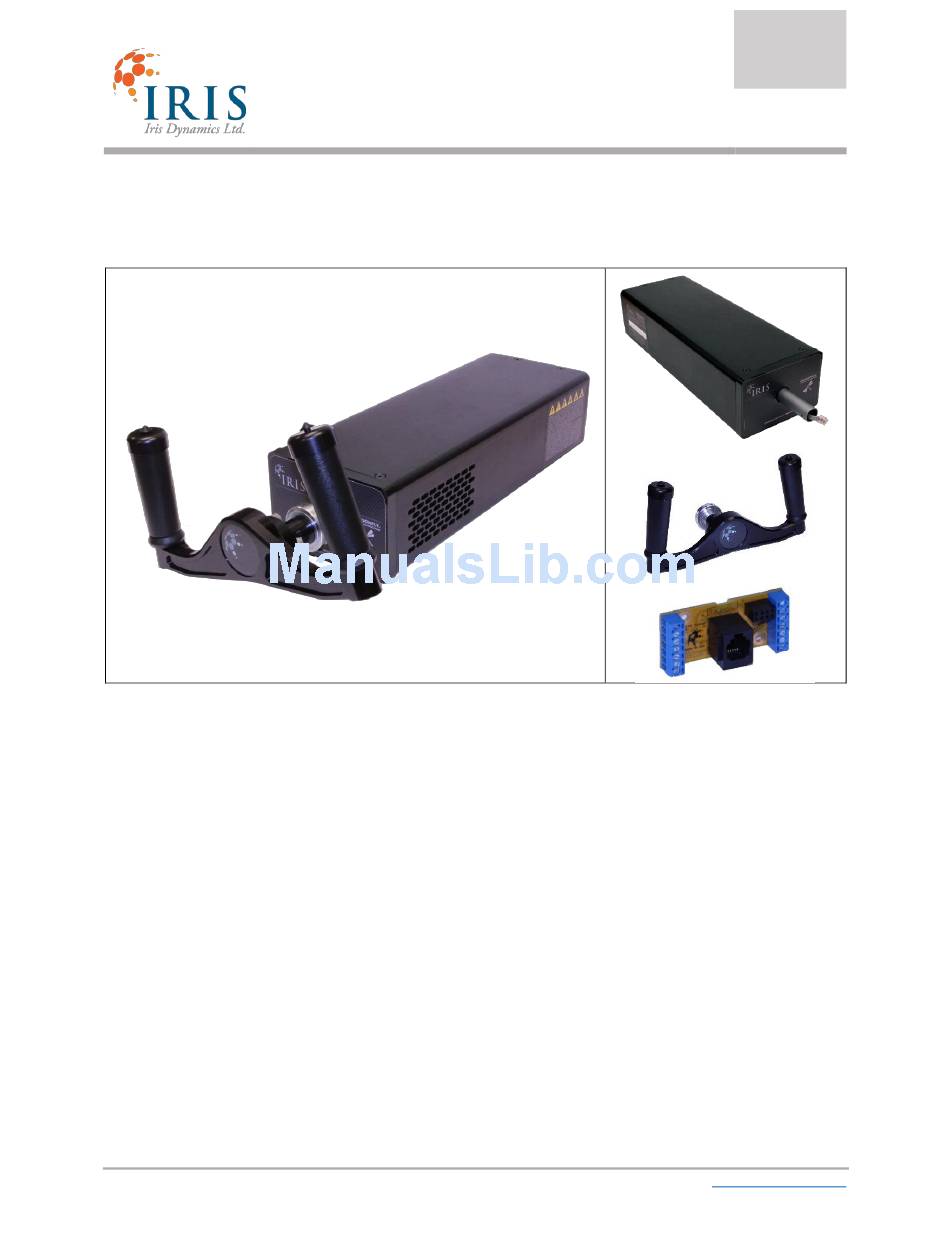

- Page 1 DragonflyVR™ Page 1 of 14 SETUP AND USER MANUAL DragonflyVR™ FLIGHT YOKE SYSTEM IDL-20004 FLIGHT YOKE BODY IDL-300-020 FLIGHT YOKE HANDLE IDL-30001 INTELLIGENT HANDLE BOARD SETUP AND USER MANUAL ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com...
- Page 2 DragonflyVR™ Page 2 of 14 SETUP AND USER MANUAL ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com...
-
Page 3: Table Of Contents
Right Side Handle – Other Functionality ......................11 States Explained ..............................12 6.1. Active State ..............................12 6.2. Standby State ............................. 12 6.3. Sleep State ..............................12 Software Updates ............................... 13 Maintenance ............................... 13 For More Information ............................14 ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com... -
Page 4: Safety Warning
DÉCONNEXION. VÉRIFIEZ QUE LA PRISE DE COURANT EST INSTALLÉE PRÈS DE L'ÉQUIPEMENT ET EST FACILEMENT ACCESSIBLE. POUR SUPPORT ET / OU SERVICE VOIR LA IRIS DYNAMICS LTD. SITE INTERNET (WWW.IRISDYNAMICS.COM) OU NOUS CONTACTER PAR EMAIL: SUPPORT@IRISDYNAMICS.COM. ©2016 Iris Dynamics Ltd. -
Page 5: System Components
The optional IDL-30001 Intelligent Handle Board allows you to integrate flight yoke handles from third-party manufacturers. The board supports up to 10 digital switch inputs and also provides 5 volt power and ground connections. ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com... -
Page 6: Unpacking, Setup, And First Use
Prior to powering on your unit you will need to attach the handle to the body. Included with the Flight Yoke Handle is a parts bag comprised of: • One 3/16” Allan (hex) key • One aluminum shaft collar clamp ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com... - Page 7 7. Tighten the socket cap screw in the clamping collar using the 3/16” Allan key. 8. Tighten the socket cap screw until the handle will not pull off the shaft. 9. Your Flight Yoke System is now assembled. ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com...
-
Page 8: Driver Installation
In this standalone mode the yoke acts as a traditional non control loading yoke with the added functionality of having moving trim. These default forces can be modified using serial. See Section 4, Commands, for more info. ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com... -
Page 9: The Directinput Standard
Tools -> Port -> [select the serial COM port] 4. Open the Serial Monitor by pressing the button in the top right corner, or by pressing [Ctrl]+[Shift]+[M] 5. Say hi! ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com... -
Page 10: Commands
Puts the yoke to sleep. settings Display the current state of user settings. trim_time 0.3-300 Change the amount of time required to trim the spring resting position of the yoke’s default spring force. This value is in seconds. ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com... -
Page 11: Status Led And Buttons
Right Side Handle – Other Functionality The Flight Yoke Handle features an identical 5-way hat switch on the right side that can be used for other functionality in your simulation software such as flaps, brakes, autopilot disconnect, look-around, etc. ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com... -
Page 12: States Explained
To wake the yoke up, perform a “control check” by moving the yoke forwards, backwards, and to its limit of travel left and right in a smooth motion. Once you’ve performed the control check, the yoke will wake up. ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com... -
Page 13: Software Updates
Visit IrisDynamics.com for the latest firmware build. Here’s how to install updated firmware on your device: 1. Download the new firmware file from the Iris Dynamics website. 2. Start Arduino. 3. With the flight yoke system connected, open the Arduino environment and select the following settings: a. -
Page 14: For More Information
9. FOR MORE INFORMATION DragonflyVR™ firmware, manuals, support, and http://www.irisdynamics.com/ user forums Using the XP Force plugin to integrate with X- http://www.fsmissioneditor.com/XPForce/ Plane Using the FS Force plugin to integrate with http://fs-force.com/ Microsoft Flight Simulator or Prepar3D ©2016 Iris Dynamics Ltd. 03-200-001_A0.docx www.irisdynamics.com...
