Summary of Contents for ROBBE Nine Eagles NE-480133
Page 1

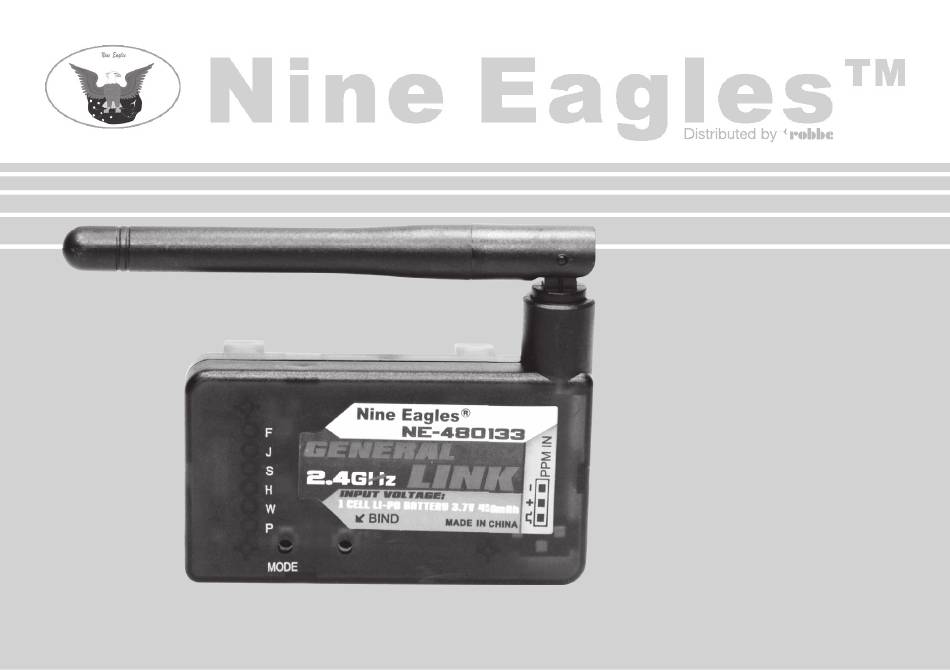

GENERAL LINK-Module 2.4GHz Operating Instructions NE480133...
Page 2
Regardless of the legal argument employed, our obligation to pay compensation is limited to the 1.0. Module functions and invoice value of those robbe products directly involved in the event in which the damage occur- controls red, unless otherwise prescribed by law. This does not apply if the company is deemed to have 2.0 Initial Setup...
Page 3
• The fluid electrolyte can also be removed from clothing and other objects by rinsing with copious amounts of water. LIABILITY EXCLUSION Since robbe Modellsport is not in a position to monitor the handling of these batteries, we expressly deny all liability and guarantee claims where the batteries have been incorrectly charged, discharged or handled.
Page 4
You will hear an audible warning if the module's operating voltage falls below 3.25 2-4-ghz.html V.
Page 5
Operating instructions General Link-Module No. NE480133 1.0. Module Functions and Controls A = Transmitter carry handle mounting C = Mode display F = 2.4 GHz-Aerial B = Battery Box D = Mode switch button G = PPM Signal socket E = Binding button 1.0 Fixing The module can either be fixed to the transmitter carry handle or to the rear of the case using hook and loop tape.
Page 6
Operating instructions General Link-Module No. NE480133 2.0 Initial Setup Important note: Make all the following work for the initial setting up of the modu- 2.1 Connecting and charging the battery le with the model switched off and with the flight battery discon- nected! Option 1 The LiPo battery is charged using the supplied USB charge adap-...
Page 7
Operating instructions General Link-Module No. NE480133 2.2.1 Preparing a Futaba transmitter (programming) 2.3.1 Transmitter-specific operating mode "P“ Ensure that your transmitter is generating a PPM signal. Many • Switch the transmitter on: the GENERAL LINK module is ready transmitters require the Trainer socket to be activated in the soft- for use.
Page 8
Modellsport Beteiligungs GmbH Gießen / HRB 5793 Managing Directors: E. Dörr Errors and technical modifications reserved. - Copyright robbe-Modellsport 2013 Duplication and copying of the text, in whole or in part, is only permitted with the prior written approval of robbe-Modellsport GmbH & Co. KG...
