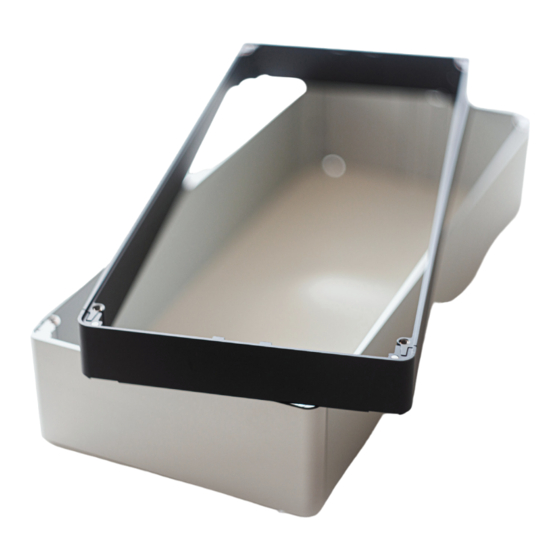

- Page 1 GHOST S1 TOPHAT Mk III LQ-GHS103-TH USER MANUAL (ENG)
- Page 3 GHOST S1 TOPHAT Mk III USER MANUAL BOX CONTENT 4x M3x4 button head 4x M3x8 button head LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 4 TOPHAT ASSEMBLY...
- Page 5 TOPHAT ASSEMBLY TOP POSITION...
- Page 6 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Unscrew the 8 countersunk screws holding the grill • Lift the grill away by pulling the rag tag in the back LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 7 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Place the Top Plate mounting platform on top of the case with the side lips pointing downwards (if necessary) LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 8 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Put the TopHat front and back gables on the case gables and slightly screw them down using the 4 of M3x8 button screws. LOUQE AB Designed in Sweden...
- Page 9 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Make sure the gables sit loose but not falling off • Slide down the TopHat side sheets into place LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 10 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Push each TopHat gable in to the TopHat side sheets, see that it sits well on your case • Screw 4 M3x8 button screws all the way down (the ones connecting to case)
- Page 11 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Connect TopHat gables to the side sheets by securing them with 4 of M3x4 button head screws in the middle LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 12 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Place the Grill on the TopHat and screw it down to the TopHat side sheets using 4 countersunk screws LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 13 TOPHAT ASSEMBLY BOTTOM POSITION...
- Page 14 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Turn the case upside down LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 15 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Remove the Bottom Plate from the case bottom view by unscrewing the 8 counter- sunk screws LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 16 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Put the TopHat front and back gables on the case gables and slightly screw them down using the 4 of M3x8 button screws. LOUQE AB Designed in Sweden...
- Page 17 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Make sure the gables sit loose but not falling off • Slide down the TopHat side sheets into place LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 18 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Push each TopHat gable in to the TopHat side sheets, see that it sits well on your case • Screw 4 M3x8 button screws all the way down (the ones connecting to case)
- Page 19 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Connect TopHat gables to the side sheets by securing them with 4 of M3x4 button head screws in the middle LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 20 GHOST S1 TOPHAT Mk III USER MANUAL ILLUSTRATION SCREWS ASSEMBLY STEPS • Put the Bottom Plate back into place and screw it down to the TopHat side sheets using 4 countersunk screws LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
- Page 21 LOUQE AB Designed in Sweden hello@louqe.com www.louqe.com...
