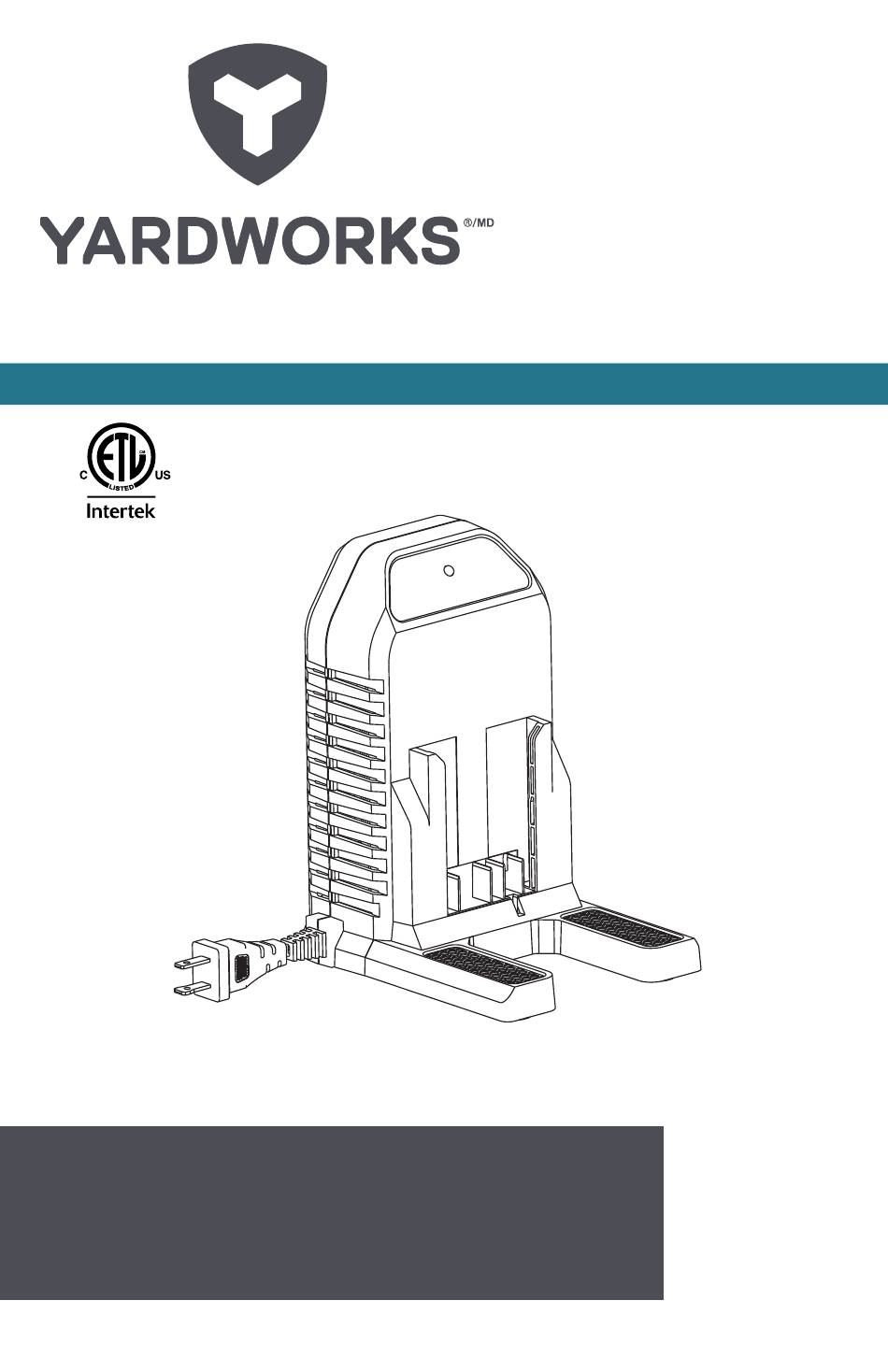

- Page 1 48V Max* Lithium-ion Battery Charger model number 060-1990-2 | contact us: 1.866.523.5218 3026035 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product.
- Page 2 060-1990-2 | contact us: 1.866.523.5218...
- Page 3 060-1990-2 | contact us: 1.866.523.5218 Introduction Safety Instructions and Symbols Product Specifications Product Diagram Operation Maintenance Storage Troubleshooting Exploded View Parts List Warranty...
- Page 4 Congratulations on your purchase of your new Yardworks tool. It has been designed, engineered ® and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please contact our Yardworks cus- ® tomer service line at 1.866.523.5218.
- Page 5 060-1990-2 | contact us: 1.866.523.5218 This device complies with Canadian ICES-001. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 6 060-1990-2 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product effectively and safely.
- Page 7 060-1990-2 | contact us: 1.866.523.5218 PRODUCT SPECIFICATIONS Charger input 120 V~,60 Hz, 110 W Charger output 48 V Charger battery Li-ion Charging time (approx.) Battery pack 060-1987-2 2.0 Ah 1 hr ABP4830HU 3.0 Ah 1 1/2 hrs 060-1988-0 4.0 Ah 2 hrs ABP4850HU 5.0 Ah...
- Page 8 060-1990-2 | contact us: 1.866.523.5218 Battery pack (not included) Charge indicator light Charger...
- Page 9 060-1990-2 | contact us: 1.866.523.5218 NOTE: Before using the tool, read the instruction book carefully. CHARGING THE BATTERY PACK NOTE: The battery in your new tool is not charged when it leaves the plant. Therefore it must be fully charged before using the first time.
- Page 10 060-1990-2 | contact us: 1.866.523.5218 CHARGING INDICATOR This charger is designed to detect some problems that can arise with battery packs. Indicator lights indicate problems (see table below). Light ON/ Flash Status Defective Battery. Red on Battery Temperature Protection.
- Page 11 060-1990-2 | contact us: 1.866.523.5218 5. When charging it is normal that the charger and battery pack may become warm to touch. 6. If the battery pack does not charge properly: a. Check current at power outlet by plugging in another appliance.
- Page 12 060-1990-2 | contact us: 1.866.523.5218 Store charger in a dry place. The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify/remedy the problem, contact Yardworks at 1.866.523.5218. ®...
- Page 13 060-1990-2 | contact us: 1.866.523.5218...
- Page 14 060-1990-2 | contact us: 1.866.523.5218 Item Description QTY. Support Leg Front Cover LED Panel Screw PCBA Screw Rear Cover Power Cord Electrode Holder...
- Page 15 060-1990-2 | contact us: 1.866.523.5218 THREE-YEAR LIMITED WARRANTY TRANSPORTATION CHARGES Transportation charges for the movement For THREE (3) years from the date of of any power equipment unit or attachment purchase within Canada, YARDWORKS are the responsibility of the purchaser.
- Page 16 060-1990-2 | contact us: 1.866.523.5218 FCC Part 15 Supplier’s Declaration of Conformity Product Description : Charger Model Number : 060-1990-2 Trade Name : Yardworks ® This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :...
