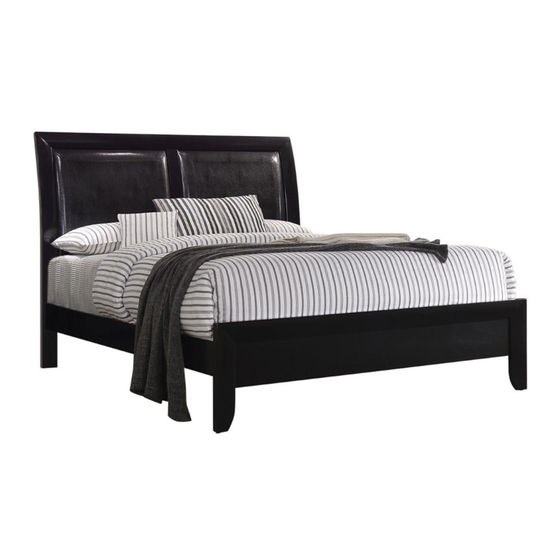

- Page 1 200701Q (B1-B3) QUEEN SIZE BED ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE www.coastercompany.com PAGE 1 OF 4 REVISION 0 : 01/05/2009 REVISION 1 : 01/09/2012 REVISION 1 : 01/09/2012...
- Page 2 ITEM : 200701Q (B1-B3) ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior start of assembly. 3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
- Page 3 **BACK VIEW **BACK VIEW **BACK VIEW **BACK VIEW IF PURCHASE HEADBOARD ONLY, SKIP BELOW STEPS 200701Q (B1-B3) - BOX 1 to BOX 3 STEP 3 Align and hook the bed rails to headboard and footboard. www.coastercompany.com www.coastercompany.com PAGE 3 OF 4...
- Page 4 ITEM : 200701Q (B1-B3) ASSEMBLY INSTRUCTIONS STEP 4 Screw in the bed slat support to bed slat. STEP 5 STEP 6 Align and fasten bed slats to bed rails using screw and Complete tighten with screw driver (Not included). www.coastercompany.com...
