HID iCLASS SE U90 Series Installation Manual

I N STAL L ATI ON G UI DE
Ultra High Frequency
iCLASS SE®

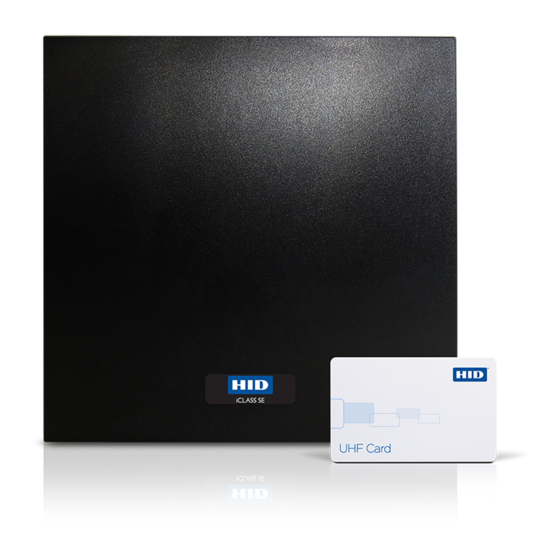

U90 (U90.915 & U90.865) Reader
Parts
1 - iCLASS SE Reader
1 - Installation Guide
2 - #6-32 x .375" Phillips machine screws
2 - #6-32 x .375" spanner security screw
2 - 7-pin Terminal connectors
1 - 10-pin Terminal connector
1 - Mounting gasket
1 - Back box
Specifications
PRODUCT BASE PART
NUMBER VOLTAGE (VDC)
U90 RDRSEU90
Relays
Three (3) each dry relays for operating external audio and visual indicators. Not to be used for Access
Control. Rated 30VDC, 2A resistive.
This Installation Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output
are fictitious. Specifications are subject to change without notice.
© 2014 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID logo, and iCLASS SE are trademarks or registered trademarks of HID Global in the U.S. and/or
other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
h id g l o b a l.co m
CURRENT
INPUT
Standby Max
AVG AVG
1
12 VDC 320mA 400mA 1.0 A
24 VDC 160mA 200mA 0.5 A
Standby AVG - RMS current draw without a card in the RF field.
1
2 Maximum AVG - RMS current draw during continuous card reads. Not evaluated by UL.
Peak - highest instantaneous current draw during RF communication.
3
An ASSA ABLOY Group brand
Recommended
• Cable, 5-9 conductor (Wiegand or Clock-and-Data)
• Linear DC power supply
• Metal or plastic junction box
• Security tool (for anti-tamper screw) HID 04-0001-03
• Drill with various bits for mounting hardware
• Mounting hardware
OPERATING
TEMPERATURE
PEAK
3
2
-30° to 150° F
(-35° to 65° C)
CABLE LENGTH
Power Supply Lines
40 ft (12 m) - 22 AWG
100 ft (30 m) - 18 AWG
Communication Lines
Wiegand / Clock-and-Data
500 ft (152 m) - 22 AWG
RS-485
4,000 ft (1,219 m) - 24 AWG
UL Reference Number Deciphering
x Reader Colors: K = Black
1
x Wiring: T = Terminal
2
x Radio band 8 = 865 to 867 MHz
3
9 = 902 to 928 MHz
PLT-01545 A.0
UL REF
NUMBER
U90Ax x x
1 2 3
