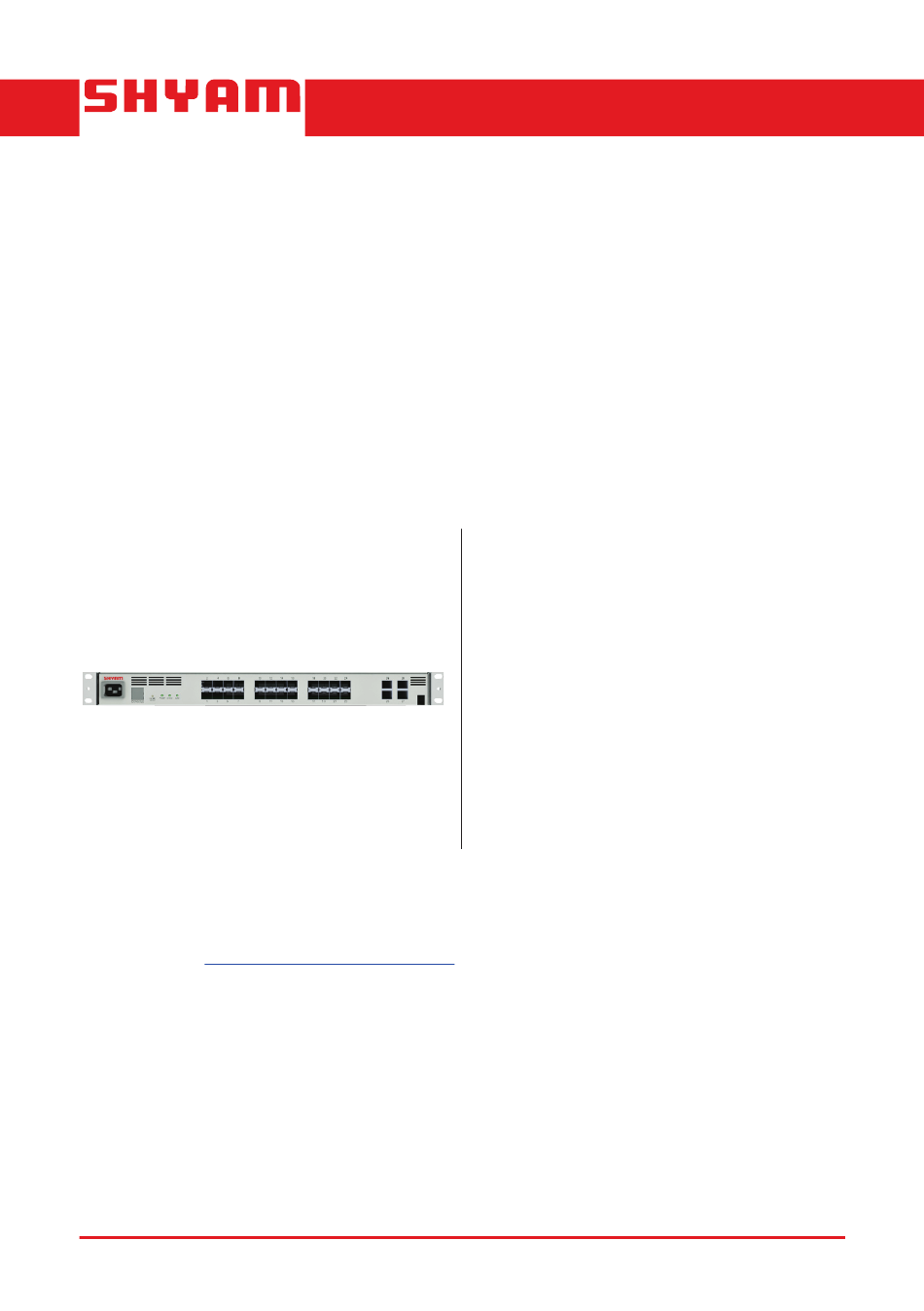

24 Port Ethernet Switch
For advanced settings and more detailed information, download the user
manual from www.shyamnetworks.com.
GS2400
Quick Start Guide
Package Contents
24 Port Ethernet Switch
(main unit)
AC/DC power cord
(corresponding to the model)
Ethernet Cable
Console Cable
Quick Start Guide
www.shyamnetworks.com
1
1
1
1
1
Advertisement
Table of Contents
Related Manuals for SHYAM Networks GS2400 Series
Summary of Contents for SHYAM Networks GS2400 Series
- Page 1 NETWORKS GS2400 24 Port Ethernet Switch Quick Start Guide Package Contents 24 Port Ethernet Switch (main unit) AC/DC power cord (corresponding to the model) Ethernet Cable Console Cable Quick Start Guide For advanced settings and more detailed information, download the user manual from www.shyamnetworks.com.
- Page 3 GS2400 NETWORKS 1. Hardware Overview Power Socket Factory Default Button WAN Ports Console Port Status LEDs LAN Ports SGS-24GF-2GF2GC-D Available Models MODEL DESCRIPTION SGS-24GF-2GF2GC-A LAN-24 fiber, WAN-2 fiber, 2 copper, AC input SGS-24GF-2GF2GC-D LAN-24 fiber, WAN-2 fiber, 2 copper, DC (55W max.) input SGS-24GC-2GF2GC-A LAN-24 copper, WAN-2 fiber, 2 copper, AC input SGS-24GC-2GF2GC-D...
- Page 4 GS2400 NETWORKS LED Behavior LED/BUTTON COLOR STATUS DESCRIPTION Indicates GS2400 is receiving power Green and is functioning properly. GS2400 is not powered on. SYSTEM Green The system is up and working. There is some problem with the switch such as the fans are not ALARM working, some hardware/software errors, and others.
- Page 5 GS2400 NETWORKS 2. Installing GS2400 GS2400 AC Power Input Computer Computer Computer Computer STEP 1 Place the switch on a flat surface or mount it on a rack. STEP 2 For each device you want to connect to the switch, insert one end of an Ethernet/ fiber cable into the port in the device and other end into the switch’s port.
- Page 6 GS2400 NETWORKS 3. Accessing the GS2400 GUI STEP 1 Power-up GS2400. STEP 2 Default IP of the system is 192.168.1.1. Give your system IP as 192.168.1.x where x is any integer from 1 to 254 except 1. iNote: If the IP address of GS2400 is 192.168.1.1 then the IP address of the system should be other than 192.168.1.1.
- Page 7 GS2400 NETWORKS 4. Quick Troubleshooting PROBLEM PROBABLE REASON RESOLUTION The PWR LED is ‘Off’. The switch has no power. • Make sure that power cord is properly connected to the switch. • Make sure that the power adaptor is properly connected to the functioning power outlet.
- Page 8 Product ______________________________________________________________________ Model No. _______________________________ Serial No. ___________________________ Dealer’s Stamp & Signature Customer Care, Shyam Networks (A Division of Vihaan Networks Ltd.) 21-B, Sec-18, Udyog Vihar, Gurgaon-122015 Haryana, India Email: customer.care@vnl.in All India Helpline No. - +91 124 309 2000 Ext. 2009, +91 9873573710 Manufactured by Vihaan Networks Ltd.
