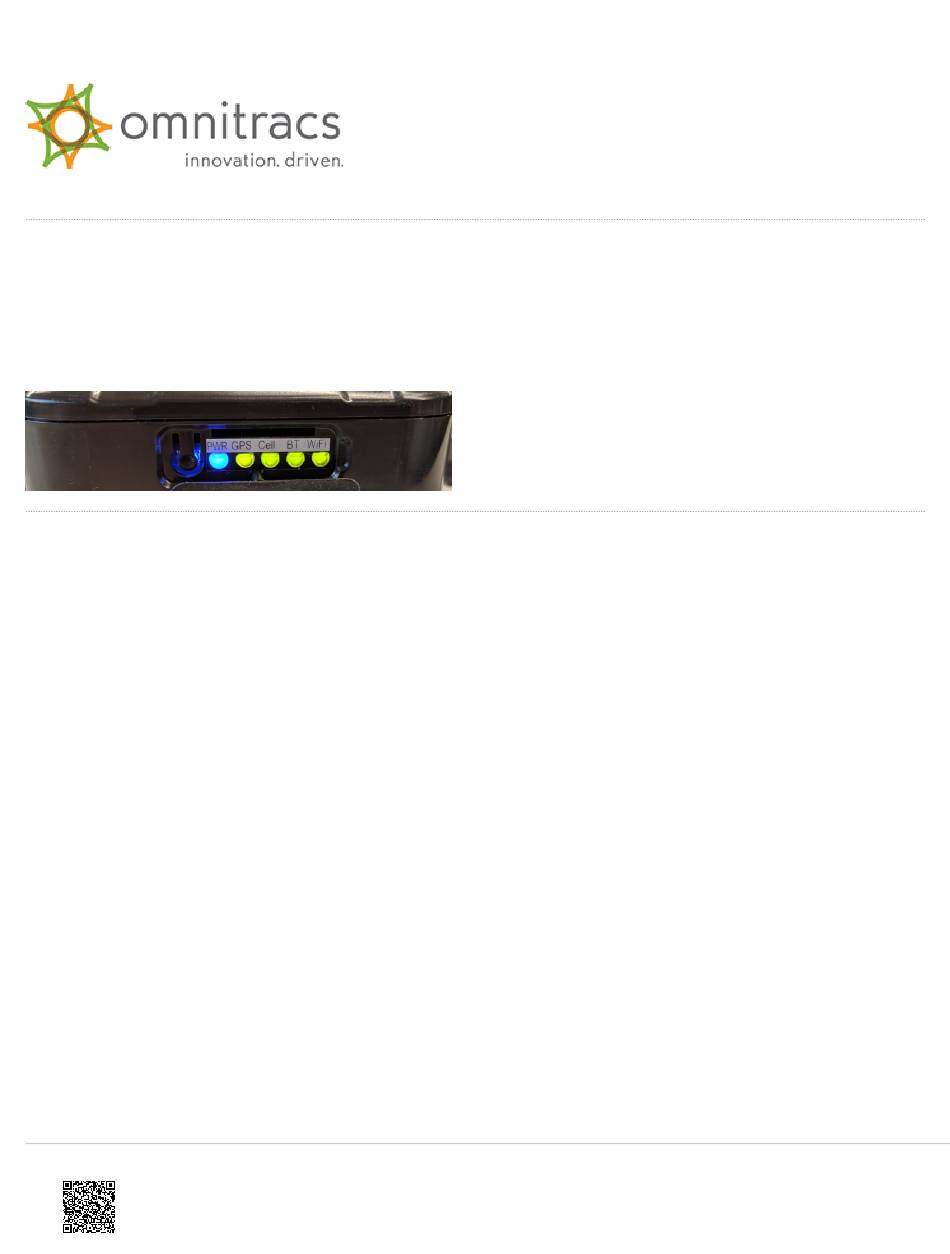

AMG-C Diagnostic LED Light Quick Reference Guide

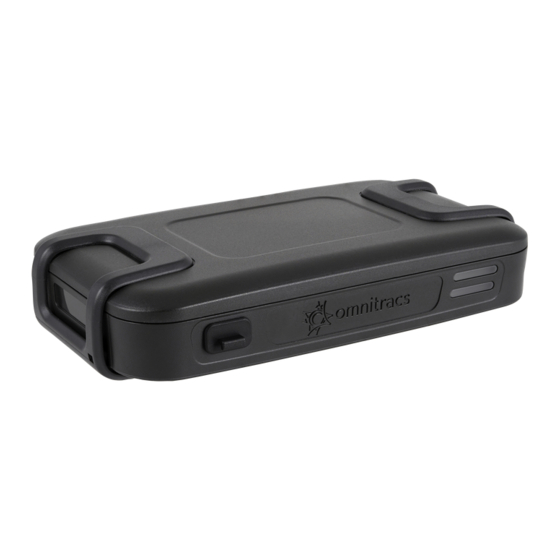

The diagnostic LED light indicators are located on the side of the AMG-C. Remove the cover to view the diagnostic
lights.
Each light is labeled. See the following sections to learn more about the operation of each indicator.
Power/VIOP LED
The PWR LED is known as either the Power LED or the VIOP LED. This is used to provide details of OS, App, and
VIOP states.
Off:
Blinking Red:
Blinking Red/Green/Blue:
Blinking Green/Blue:
Blinking Blue:
Blinking Green:
Solid Green:
Blinking Green/Red:
https://kb.omnitracs.com/Omnitracs_One/AMG-C/Beta/User_Manual/AMG-C_Diagnostic_LED_Light_Quick_Reference_Guide
Power Off
VIOP POST Boot Test failed
VIOP POST Boot Test in progress (occurs briefly after a power on)
OS Booting
PAPI link up, app not fully launched (not seen in normal operation)
App is up, normal operation, Ignition OFF
App is up, normal operation, Ignition ON
Bus abnormal/off condition
