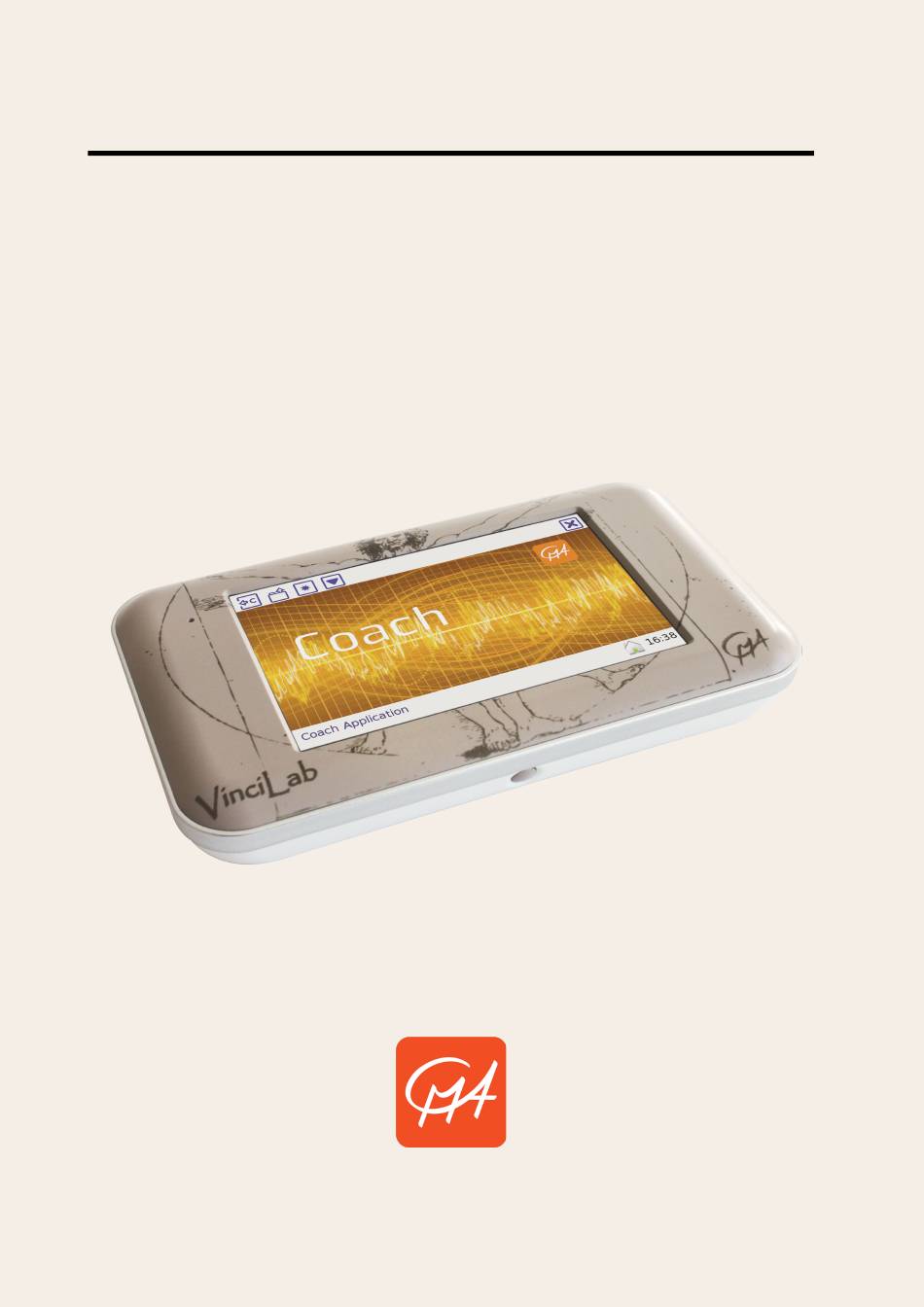

- Page 1 INCI LOGGER ’ UIDE CENTRE FOR MICROCOMPUTER APPLICATIONS https://cma-science.nl...
- Page 2 For our international users Check the CMA website https://cma-science.nl for the latest version of this manual and updates of Coach programs and apps. Aan onze Nederlandse gebruikers VinciLab wordt standaard uitgeleverd met Engelse handleiding. U kunt de laatste versie van de Nederlandse handleiding en de nieuwste updates van Coach programma’s en app’s downloaden van de CMA-website https://cma- science.nl.
-
Page 3: Table Of Contents
ABLE OF CONTENTS I. VINCILAB AT A GLANCE 1. Introduction 2. VinciLab overview II. GETTING STARTED 1. Turning VinciLab On and Off 2. Powering VinciLab 3. Home Screen 3.1. Applications ....................................... 9 3.2. Status bar ...................................... 1 0 3.3. Navigation ...................................... 1 1 4. Sensor inputs 4.1 Analog sensor inputs .................................. 1 1 4.2. Digital sensor inputs .................................. 1 2 4.3. Sensor detection .................................... 1 2 5. Built-in sensors 6. Signal generator 7. Using VinciLab with computers and tablets III. VINCILAB APPLICATIONS 1. Coach 2. My Files 3. Settings... - Page 4 8. Texts Screen 9. Images Screen 10. Web-pages Screen 11. Student Texts Screen 12. Processing and analysis tools 12.1. Select/Remove Data .................................. 3 8 12.2. Smooth ...................................... 3 9 12.3. Derivative ...................................... 3 9 12.4. Integral ...................................... 4 0 12.5. Slope ........................................ 4 0 12.6. Area ........................................ 4 1 12.7. Function Fit .................................... 4 1 12.8. Signal Analysis ..................................... 4 2 12.9. Statistics ...................................... 4 2 12.10. Histogram .................................... 4 3 V. USING VINCILAB WITH A COMPUTER AND A TABLET 1. Connecting VinciLab via the USB cable...
-
Page 5: Vincilab At A Glance
INCI AB AT A LANCE 1. Introduction VinciLab is a modern and advanced mobile graphic data acquisition system, which can be used in a variety of ways, standalone and with a computer and tablet, in the classroom and in the field. It is a handheld Linux device equipped with two processors: a main processor to control the device’s operating system and screen, and a measurement processor to control the measurement and control processes. It has 8 GB of internal memory 5.5 GB of which is available for user files. VinciLab has a 5” capacitive color touch screen that provides a high-resolution display (800 x 480 pixels) offering easy control of the device. For wireless connectivity VinciLab is equipped with Wi-Fi and Bluetooth. The dedicated desktop applications, pre-installed on VinciLab, offer tools for setting up the device, setting up wireless connections,... -
Page 6: Vincilab Overview
2. VinciLab overview Internal Microphone Capacitive Color Touch Screen for recording sound signals for viewing and controlling Power Button for turning VinciLab On or Off and for turning the screen On when it is timeout Analog Inputs A1, A2, A3, A4 Digital Inputs D1, D2 for connecting digital for connecting Motion Detectors analog sensors 6 | VinciLab User’s Guide... - Page 7 Audio Out Port USB Port output for AC and DC voltage signals, for connecting any USB peripherals like a mouse, for connecting to a power amplifier keyboard, USB flash drive, USB hub, etc. Mini USB Port Audio In Port for connecting a USB cable for charging for connecting or for communication with computer an external microphone Battery Compartment Speaker for the internal, lithium-ion rechargeable for playing audio battery (supplied with VinciLab) For VinciLab’s purchased starting from February 2019, in the VinciLab’s sold before the Audio Out Port (green connector) was used for connecting headphones or an external speaker. VinciLab User’s Guide | 7...
-
Page 8: Getting Started
ETTING STARTED 1. Turning VinciLab On and Off To turn VinciLab On • Press the Power Button once. • While VinciLab is booting the message ‘VinciLab is starting. Please wait.’ is displayed. • Wait until the device finishes its booting procedure and displays its starting Home Screen as shown on the image. Note: • The minimum battery level to start VinciLab is 1%. To turn VinciLab Off • Tap Shut Down in the status bar. • On the new screen tap: Shut Down to shut down VinciLab. -
Page 9: Home Screen
To charge battery Only use the USB cable and USB power adapter delivered with your VinciLab. • Connect the USB cable to the mini USB port of VinciLab. • Connect the other end of the USB cable to the USB power adapter. • Plug the USB power adapter into a standard power outlet. - or - • Connect the USB cable to the mini USB port of VinciLab. • Connect the other end of the USB cable into a USB port of your computer. Notice, that the efficiency of charging via a USB port, is limited by the maximal current provided by a USB socket (500 mA for USB 2.0 and 800 mA for USB 3.0). Battery life will depend on the screen brightness and on the sensors and features used, but typically you can expect to use VinciLab at least 4 hours without recharging it. To save power dim the brightness of the screen or turn off the screen when you do not need it. See also III. VinciLab Applications, 3. Settings. -
Page 10: Status Bar
Settings: Configuring the device to your preferences. Connections: Configuring the wireless connections. Web Browser: Accessing the Internet. Images: Browsing and displaying images. Media Player: Playing audio and video files. Calculator: Performing simple mathematical calculations. • Tap an application’s icon to launch the application. • Tap Back to return to the previous screen or option. • Tap Home to display the Home Screen. Detailed descriptions of applications are given in III. VinciLab Applications. 3.2. Status bar The icons in the status bar at the bottom of the Home screen give information about VinciLab: Icon Name Operation Coach Appears when Coach is running active Tap to switch back to Coach Volume Shows the status of Volume, On or Mute Tap the icon to change the Volume level... -
Page 11: Navigation
3.3. Navigation ! Touch screen best responds to a light tap from the pad of your finger. Using ARNING excessive force or a metallic object when pressing the touch screen may damage the glass surface and void the warranty. Tap Tap items to select or launch them. For example tap an item to select it, tap an application’s icon to launch the application or tap the on-screen keyboard to enter text or numbers. Flick or drag Flick or slide your finger vertically or horizontally across the screen. For example browse through images or scroll a long screen. -
Page 12: Digital Sensor Inputs
4.2. Digital sensor inputs VinciLab has two digital BT (left-hand) sensor inputs D1 and D2. The CMA BT digital Motion Detectors can be directly connected to these sensor inputs. 4.3. Sensor detection VinciLab supports sensor recognition and tries to identify sensors connected to inputs. • When Coach identifies the connected sensor then its name is automatically displayed in the Activity Screen tree and its digital display appears on the Sensors Screen. When the sensor is then disconnected its name and digital display disappear automatically. -
Page 13: Signal Generator
For the directions of x, y and z axes of the accelerometer see the image. Holding the VinciLab in the shown position should give the following values of the component accelerations: x-component ≈ 0 m/s y-component ≈ 0 m/s z-component ≈ -9.81 m/s 6. Signal generator Via the 3.5 mm Audio Out port VinciLab outputs DC and AC voltage signals between -5V and 5V. This functionality is present only on VinciLabs sold starting from February 2019 (the Audio Out port of these models has a blue connector). There are two channels available 7. Using VinciLab with computers and tablets VinciLab can be used with computers:... -
Page 14: Vincilab Applications
III. INCI PPLICATIONS Read this chapter to learn how to use VinciLab’s applications. 1. Coach Use Coach to create new Results, open pre-defined Activities, setup experiments, collect data, display and process the collected data, save the results. • To start tap Coach. The detailed description of Coach is given in IV. Coach Application. 2. My Files Use My Files to manage your files on VinciLab, to copy and delete folders and files, to send files by e-mail. - Page 15 To select folders/files • Tap to select desired folders/files. • Check marks appear in the check boxes and additional icons appear in the bottom bar. To copy selected items • First select items as described above. • Tap to copy the selected items. The clipboard icon changes into to indicate that something is placed on the clipboard. • Browse to the location where you want to copy the items and tap to paste the items in the selected location.
-
Page 16: Settings
3. Settings Use the Settings application to configure your VinciLab. • To start tap Settings. • Scroll down to see all options. 3.1. Device Settings Device settings include Sound and Display settings and Battery information. To set the sound level and enable system sounds • Tap and drag the Volume slider to set the volume level. • To play system sounds check Enable system sounds. To save power • Lower the brightness of the screen. Tap and drag the sliders to set the screen brightness when on battery power and when on external power. These settings become effective after leaving Settings. - Page 17 Note: • This language setting is only for the Desktop Applications, not for Coach. Language of Coach has to be set via the option Switch Language in the Main Tool menu of Coach. To set the date and time • Enter the current date/time by tapping and To set the homepage • Tap Homepage or . • Type in a webpage address you like to use as the Homepage for VinciLab Web Browser. • Confirm with To update VinciLab system and its applications • Connect to a Wi-Fi network. See ‘III. VinciLab Applications, 4.1. Wi-Fi’. • Tap Software Update or . • The Software Update screen appears and automatically lists all installed software packages (grey) and new available updates (black).
-
Page 18: Connections
4. Connections Use the Connections application to connect VinciLab to the Internet and to other wireless devices. • To start tap Connections. 4.1. Wi-Fi Wi-Fi wireless networking technology that provides access to local area networks. VinciLab supports the 802.11 /b/g/n Wi-Fi protocol. To turn Wi-Fi On and Off • To turn the Wi-Fi services on drag the Wi-Fi slider to the position ON. • VinciLab automatically scans for available Wi-Fi connections. The Wi-Fi icon at the right shows the signal strength; the more bars are displayed, the stronger the signal is. -
Page 19: Bluetooth
To turn Data Share On and Off • Make sure that VinciLab is connected to a network. • To allow data sharing drag the Data Share slider to the position ON. • VinciLab shows that VNC is running and displays its IP address. • Now you can use another device connected to the same network to view and control your VinciLab. To do so, start a VNC Viewer installed on such device and connect to VinciLab by providing its IP address. • To stop the data sharing drag the Data Share slider to the position OFF. Note: • VinciLab remembers the Data Share slider setting. 4.3. Bluetooth Bluetooth is a short-range wireless communications technology for exchanging information over a distance at most 100 m. VinciLab supports Bluetooth® 4.1. To turn Bluetooth On or Off • To turn Bluetooth On drag the Bluetooth slider to the position ON. • VinciLab automatically searches for Bluetooth devices nearby. • From the list of scanned devices, tap the target device, then follow the prompts to complete the pairing. • If the target device requires a PIN, enter a PIN for the target device and confirm with • When paired, the Bluetooth icon appears in the System Bar. • To turn Bluetooth off drag the Bluetooth slider to the position OFF. Bluetooth communication can be used e.g. to connect a wireless Bluetooth keyboard or mouse to VinciLab. -
Page 20: Images
To navigate • Tap Back in the window header to return to the previous page. • Tap Forward to go forward to a recent page. • Tap Refresh to refresh the connection. • Tap and drag your finger on the screen to navigate pages, and to reposition pages within the screen. • Tap a hyperlink to follow the link. To zoom • Use two fingers, such as your index finger and thumb, to make a pinch motion on the screen. See also ‘II. Getting Started, 3.3. Navigation’. 6. Images Use the Images application to view images stored on your device in the folder My Files/Media/Images. -
Page 21: Calculator
Stop to stop playback. Play to resume playback. Pause to pause playback Mute to mute the sound. • Tap and drag the Volume slider to set the playback sound volume. 8. Calculator Use the Calculator application to perform simple mathematical calculations. • To start tap Calculator. VinciLab User’s Guide | 21... -
Page 22: The Coach Application
OACH APPLICATION Read this chapter to learn how to work with the Coach Application on VinciLab. To start Coach • Tap Coach on the Home Screen. • The Main Screen of Coach opens. 1. Main Screen The Main Screen displays the Coach Title image, the Toolbar and the bottom bar. The Toolbar offers the following icons: Icon Tap this icon to: Exit Coach Open a Coach Activity or Result Create a new Coach Result Display the Main Screen Tool menu Exit Coach AIN CREEN OOL ENU - New - to create a new Result. - New (Sound Only) - to create a new Result for collecting data via the internal sound sensor. - Open … - to open a Coach Activity/Result (*.cma/*.cmr). - Open CMA Project… - to open a CMA Coach Activity/Result (*.cma/*.cmr). - Switch Language - to change the language of Coach User Interface. To reflect this language setting first close Coach and open it again. - Page 23 program (such activities have to be saved via the option File > Save for MoLab/VinciLab). Student users can open such Activities in the Coach application but cannot overwrite them. Instead Student users save the results of their work in Coach Results. Exemplary CMA Coach Activities and Results are stored in the CMA Coach Projects folder. This folder can be opened directly via the menu option Open CMA Project available in the Main and Activity Screen Tool menus. Coach Activities and Results can be stored in the VinciLab’s user folder My Files > Coach.
-
Page 24: Typical Measurement Procedure In The Coach Application
available diagrams, etc. - tap this icon to open the Tool menu with specific options. In the bottom bar the following icons may be present: Icon Tap this icon to: Start the measurement Grey when no sensor(s) connected/selected Interrupt the measurement at any time Appears after the measurement is started Take a manual measurement Appears in the manual measurement mode Stop manual measurement Appears in the manual measurement mode Open the Measurement Settings Go to the Home Screen Tap to switch back to Coach 3. Typical measurement procedure in the Coach Application • Turn VinciLab on by pressing its power button. Wait until the Home Screen appears. • Ensure VinciLab has sufficient battery power or is connected to a power supply. • On the Home Screen tap to open Coach. • Connect the desired sensor(s) to the sensor input(s) of VinciLab. • Open a new Coach Result: - Tap or Tap and select New. If you only want to work with the internal sound sensor select New (Sound Only). - Page 25 2. When a sensor is not identified then it has to be manually selected from the Sensor Library: go to Sensors Screen, tap and select Sensor Settings, tap the sensor input tab to which the sensor is connected, tap Choose (or None) and select the desired sensor from the list. or • Open a ready-to-go Coach Activity or Result: - Tap or Tap and select Open or Open CMA Project….
-
Page 26: Activity Screen
When tapping and starting a new data collection run, existing data is ARNING • overwritten by the new data without any warning. To avoid losing any data always save your Result first. • The measurement stops when the specified measurement time (time-based measurement mode) or specified number of samples (manual measurement mode) has been reached. If you want to interrupt the measurements process tap • To save your result go to the , tap or tap and select Save or Save As…. Note: • To avoid loss of data, for instance in case of empty battery, the Coach Application will save intermediate results during measurements longer than 10 minutes. Saving of the Result file, will be done each minute (in case of new data). The last saved file can be found in My Files/DataRecovery/last_result.cmr. - Page 27 CTIVITY CREEN OOL ENU - New - to open a new Result. - New (Sound Only) - to open a new Result with the internal sound sensor. - Open … - to open a Coach Activity/Result. - Open CMA Project… - to open a CMA Coach Activity/Result. - Save … - to save the existing Result. - Save as … - to name and save the existing Result. - Delete … - to delete a current Activity/Result (*.cma/*.cmr file). - Activity Options - to set the Activity options. - Close - to close the existing Activity/Result and return to the Main Screen. - Quit Coach - to quit Coach Application. At the right the following icons are present: Icon Tap this icon to: Open a new Result Open an Activity/Result, see below Save the current Result Close the current Activity/Result Exit Coach After you have chosen the Open option the Open an Activity dialog is displayed. In this dialog tap: to go one level up, • to create a new folder(s), • to open the folder with the CMA •...
-
Page 28: Sensors Screen
5. Sensors Screen The Sensors Screen is used to show live data measured by the connected sensor(s) and set the measurement and sensors. A digital display appears automatically when VinciLab identifies the sensor. For a sensor, which is not identified, a digital display will be created only after selecting a sensor from the VinciLab Sensor Library. The live sensor readings are not stored in VinciLab’s memory. - Page 29 A. Automatically recognized sensors When the connected sensor is identified its information appear in the respective tab of the Sensor Settings dialog. B. NOT automatically recognized sensors When a connected sensor is not identified (an older type of sensor or a sensor whose EEPROM memory cannot be read) then the sensor has to be set up manually. Tap Choose or tap None. • Tap the name of the desired sensor • to select it and confirm with . C. Own sensors Users can create their own sensors and add them for use in Coach. Since analog inputs of VinciLab measure voltage signals in two ranges, between 0 .. 5 V or -10 .. 10 V, it is important to indicate which voltage range is used by a new...
-
Page 30: Sensor Calibration
X, Y, or Z and tap the checkbox Enabled to make the sensor ready for measurement. Internal microphone Tab A2 has additional button Enable Internal microphone, which switches this output to measure via the Internal microphone. This allows using internal microphone with combination with other sensors. The Activity Sound only allows to measure only with the internal microphone. It has only tab Internal, which displays settings of the internal microphone. Note that if an external microphone is connected via Audio In port then the internal microphone is disconnected and the external microphone is used instead. Options of the Sensor Settings dialog: Sensor: displays the sensor’s name, number and brand. Range: displays the sensor range, for sensors with the EEPROM memory this is the range stored in the EEPROM (selected by default). Most sensors have more measurement ranges. - Page 31 the mathematical relation between the voltage values produced by the sensor (in most cases) and the values of the physical quantity measured. There are two ways to perform a calibration: • By providing a calibration function: method Function. • By providing calibration points in the calibration table: method Points (not possible for the EEPROM memory). These points can be: - measured, the sensor voltage value is measured and the value of the corresponding quantity is typed. In this case the sensor has to be connected to the active interface. Such a calibration is the most accurate calibration. - Keyed in, both the sensor voltage value and the value of the corresponding quantity are typed. The best function fit, through the calibration points, is calculated according to the least-squares method.
-
Page 32: Measurement Settings
adjusted accordingly. It is not possible to edit quantity, minimum and maximum of the sensor range and function type. This is because the EEPROM calibration has a specific (fixed) format. • You may use the Get from Library button to load an existing calibration from CMA Sensor Library. •... - Page 33 the suffix ‘(Standard)’ from the diagram’s name and makes it a user-defined diagram. On starting a measurement graph(s) are drawn in pre-defined diagrams. Notice that when starting a new measurement run, the existing data is overwritten by the new data without warning. You can collect several measurement runs for comparison by using the Copy column option from the Tool menu. • Tap to go to the Diagrams Screen. • Tap again to see all available diagrams and to select another diagram. • Tap to open the Tool menu. IAGRAMS CREEN OOL − Zoom to Fit (only for a diagram with data) - to optimally zoom in the graph. − Zoom Out (only when in zoomed state) - to return to the previous zoom state. − Scan (only for a diagram with data) - to read co-ordinates of points in the graph. When scan is started use Stop Scan - to stop the scan. − Erase all Values (only for a diagram with data) - to remove all data. − Sketch - to draw a prediction graph or a graph, which can be converted to real data. After the sketched graph is created use: o Convert Sketch to Table - to convert the sketch to real data, or o Erase Sketch - to remove the sketch.
-
Page 34: Tables Screen
At the right the following icons are present: Icon Tap this icon to: Re-scale the horizontal and vertical axes to optimally display the graphs Return to the original scale. Active only after a zoom Switch the grid on and off Draw a prediction graph or a graph, which can be converted to real data (toggle) Stop drawing a sketch graph (toggle) Change the display settings of the diagram Scan - read co-ordinates of points in the graph (toggle) (Active only for a diagram with data) Stop scanning (toggle) Go directly to the data processing and analysis tools 7. Tables Screen The Table Screen is used to display measured or calculated data in tables. Here you can also manage table rows, create new tables, import data from and export data to csv file and perform data processing and analysis. -
Page 35: Texts Screen
ABLE CREEN OOL − Erase all Values (only for a table with data) - to remove all data from the activity. − Import Table - to import data from csv (text) file, after this action a new table with data will be added. − New Table… - to create a new table. − Delete Table - to delete the displayed table. − Edit Table … - to edit the displayed table. − Process/Analyze - to select data processing and analysis tools. − Import CSV File - to import data from csv (text) file, after this action new columns with data will be added to the existing table. − Export CSV File – to export data into csv (text) file − Data Rows - to add, delete and sort table rows. − Edit - to edit table cells. − Copy column (only for a table with data) - to keep previous run(s) active. At the right the following icons are present: Icon Tap this icon to:... -
Page 36: Images Screen
9. Images Screen The Images Screen is used to display photos and images (bmp, gif, jpg and png files). By default there is no image in a new Result created on VinciLab; the Image Screen is empty. • Tap to go to the Images Screen. • Tap again to see all available images and to select another image. • Tap to open the Tool menu. MAGES CREEN OOL ENU... -
Page 37: Student Texts Screen
AGES OOL ENU New Web Page… - to add a new web page via http link. Delete Web Page - to delete a pre-defined web page. Edit Title … - to edit the title of the pre-defined web page. Home Page – to set the displayed web page as the Home page (only one per Activity/Result). Back – to return to the last viewed web page. Forward - to forward again to the viewed web page. Home - to return to the Home page. Refresh - to refresh a web page. Copy URL - to copy URL address. At the right side of the Web-pages Screen the following shortcuts are available: Icon Tap this icon to: To return to the last viewed web page To forward again to the viewed web page To return to the Home page To refresh a Web page To stop loading the current Web page (toggle) To zoom in a Web page To zoom out a Web page 11. Student Texts Screen The Student Texts Screen is used to display texts, which can be edited by student users. Student users can also add their own texts. By default an empty Student Text is included in a new Result, allowing direct typing of student... -
Page 38: Processing And Analysis Tools
• Tap to open the Tool menu. EXTS CREEN OOL New Student Text… - to add a new Student text. Delete Student Text - to add a new Student text. Edit Title… - to edit the title of the selected Student text. Cut - to cut a selection of text. Copy - to copy a selection of text. Paste - to paste a selection of text. Undo - to undo the last action. Text size - to select the font size used in (all) Students Texts. 12. Processing and analysis tools Data collected in measurements can be processed and analyzed with the advanced data processing tools of the Coach Application. These tools are available under the option Process/Analyze in the Tool menu of the Diagrams and Tables Screens or via the shortcut icons. -
Page 39: Smooth
For the Point-by-point method: select points by tapping a point in the graph or by • using the small icons: select all, deselect all, select even, select odd, select/deselect a point. Use – and + buttons to accurate select points. Tap to confirm or to close the dialog without changes. • In the next dialog select Keep selected or Delete selected and confirm with • 12.2. Smooth The Smooth tool is used to create a smooth curve that fits a rough or limited set of measured points. The smoothed graph may consist of (much) more points than the original data set and can successively be processed. -
Page 40: Integral
method of calculating the graph of the derivative (Differences or Smooth). • When desired, edit the Quantity and Unit. • Tap to calculate the derivative graph. • Tap to confirm or to close the dialog without changes. • Select either Add graph or New diagram and confirm with 12.4. Integral The Integral tool is used to calculate the function (the primitive function) whose derivative is equal to the displayed graph. Such an integral function can be determined for a constant of integration. To calculate an integral graph Select Process/Analyze > Integral. • In the top left drop-down list select the • graph of which you want to calculate the integral. -
Page 41: Area
slope. Use – and + buttons to accurate select the point. A line appears in the diagram. Rotate the line until it is positioned correctly along the graph. To find a slope automatically tap . Tap the point in which you want to determine • the slope, the slope is calculated and displayed in the graph. Read the value of the slope in the Slope field. You can copy the value of the slope to • the clipboard by tapping . Tap to close the dialog. • 12.6. Area The Area tool is used to determine an area between the displayed graph, the horizontal axis and two boundary lines. To determine an area Select Process/Analyze > Area. • In the top left drop-down list select the • graph from which you want to determine an area. -
Page 42: Signal Analysis
To automatically determine the fit: • - tap , Coach automatically estimates the best initial parameter values of the fit function; in some cases this is already the optimal fit. - tap to refine the suggested fit. To manually determine the fit: • - When the pin “is opened” you can shift the fit-function around. Touch the fit- function and move up/down and left/right. - When the pin “is closed” you can shape the fit-function around the fixed pinpoint. Tap the pin to close it, touch the fit-function and stretch up/down and left/right. -
Page 43: Statistics
12.9. Statistics The Statistics tool displays statistical information about the diagram/table as a whole or about a selection of data in the table. To display statistics For the whole data set: select Process/Analyze > Statistics. • For a selection of data: with your finger drag a selection in the table and then select Process/Analyze > Statistics. You can copy the statistics information to the clipboard by • Tapping . Click to close the dialog. 12.10. Histogram The histogram tool is used to create a statistical histogram - a graphical representation of the data distribution. The range of the variable (column) is divided into equal size bins for which the frequency of occurrence is counted. The height of the diagram bar is equal to the frequency of occurrence within the bin. To determine a histogram Select Process/Analyze > Histogram. •... -
Page 44: Using Vincilab With A Computer And A Tablet
SING INCI AB WITH A COMPUTER AND A TABLET 1. Connecting VinciLab via the USB cable Before you start using VinciLab with a computer via the USB cable we recommend to first install the latest version of the Coach 7 or Coach 7 Lite software on your computer. In most cases the VinciLab installation is automatically executed the first time VinciLab is connected to the USB port of the computer. After successful installation VinciLab is shown under Network adapters (Windows)/Ethernet cards (MAC). Windows Device Manager Mac System Information If the installation process is not successfully performed in Windows (VinciLab is marked by yellow exclamation sign) then the driver has to be installed manually. • Go to Control Panel and start Windows Device Manager. •... -
Page 45: Transferring Files Between Vincilab And A Computer
Give Coach (Coach7.exe) permission for such communication. 3. VinciLab makes use of Microsoft RNDIS drivers, some older versions of the RNDIS software may give problems on Windows computers. There is a hotfix available at: http://support.microsoft.com/kb/2477042) for Windows 7, Vista Windows Server 2008 R2, Windows Vista or Windows Server 2008. After installation of the hotfix use the Device Manager to uninstall the VinciLab driver while VinciLab remains connected to the computer via the USB cable. Then disconnect the USB cable from the computer and connect it again to use the new Microsoft RNDIS driver. Always restart VinciLab after a failed attempt to connect VinciLab in Coach or ARNING after you change the hardware settings in Coach. 3. Transferring files between VinciLab and a computer Transferring files between VinciLab and a computer are only possible via the USB connection. To get access to the VinciLab’s user folder ‘My Files’ in Windows Explorer... -
Page 46: Using Vincilab For Data Collection With Computers And Tablets
moved between the ‘My Files’ folder on VinciLab and the computer. The ‘My files’ folder consists of some pre-defined folders: • Coach - the default folder used for storing user’s Coach Activities and Results files. This is the default folder used in the Coach Application for saving User’s files. • Media - with folders Audio, Images, Video used for storing audio, images and video files. Files from Images subfolder are by default displayed in the Images Application and files from Audio and Video are by default displayed in the Media Player Application. Be careful when deleting files or folders in the ‘My files’ folder and do not ARNING remove the predefined folders ‘Coach’ and ‘Media’. Removing these folders may cause some of VinciLab applications to not work properly. -
Page 47: Typical Measurement Procedure In Coach 7
in Connections on VinciLab). Accept with OK. 4.2. Typical measurement procedure in Coach 7 • Turn VinciLab on by pressing its power button. Wait until the Home Screen appears. • Start Coach 7 (or Coach 7 Lite) on your computer/tablet. • If needed set the connection for VinciLab communication, see the previous chapter 4.1. Communication with Coach 7. • In Coach open an Activity/Result for measurement or create a new measurement Activity/Result (Author mode only). • Connect sensor(s) to the sensor input(s) on VinciLab. • VinciLab automatically detects the connected sensor(s) and displays the sensor icons of the identified sensors on the VinciLab screen panel. The sensors, which are not automatically identified, have to be selected from the Coach Sensor Library. -
Page 48: Activities For Vincilab
• The measurement is stopped when the specified measurement time (time-based) or specified number of samples (manual) has been reached. If you want to interrupt the measurements process, click the Stop button or press <Esc>. • Save your result via the File menu options Save or Save As…. The file will be saved in cma7/cmr7 format. ! Coach on VinciLab does not read cma7/cmr7 files. If you want to use your ARNING Activity/Result on VinciLab you have to save the file via the menu option Save for MoLab/VinciLab. 4.3. Activities for VinciLab The Coach 7 program or Coach 7 App offers more features than the Coach Application on VinciLab. One of the most important is the Author mode with the possibility of creating Coach Activities and Results for VinciLab. Such Activities (*.cma files) and Results (cmr.* files) can be copied to the VinciLab folder ‘My Files/Coach’ or a USB flash memory and opened in the Coach Application on VinciLab. -
Page 49: Technical Specifications
ECHNICAL SPECIFICATIONS 1. Key features Linux PERATING YSTEM 5” (800 x 480 pixel) capacitive color touch screen ISPLAY Main and Measurement processors ROCESSORS ARM Cortex A8 1000 MHz and DSP 120 MHz 8 GB, of which 5.5 GB user memory in the ‘My Files’ folder EMORY Expandable with a USB flash drive Rechargeable battery Li-ion 3.7 V, 4000 mAh OWER USB Power Adapter (100-240 V AC, DC 5V/2A) Wi-Fi 802.11 b/g/n ONNECTIVITY Bluetooth® 4.1 Mini USB port also used for powering OMPUTER CONNECTION Full USB for USB peripherals PORT Audio In: for external microphone THER PORTS Audio Out: DC and AC voltage signals between -5 .. 5V (only on VinciLabs sold starting February 2019) 4 analog BT (right-hand) inputs, each can work as a counter ENSOR INPUTS 2 digital BT (left-hand) inputs Microphone, max. frequency 44 100 Hz UILT IN SENSORS 3-axis Accelerometer (± 20 m/s , ± 40 m/s , ± 80 m/s ), max. frequency 400 Hz 12 bits RESOLUTION Max. 1 MHz, 4 inputs simultaneously AMPLING FREQUENCY Dedicated Desktop Applications... -
Page 50: Working Conditions And Maintenance
2. Working conditions and maintenance For your safety and that of your equipment, follow these rules for handling, for cleaning VinciLab, and for working more comfortably. ! Your VinciLab is designed to be operated on a desk or hand-held. ! Your VinciLab is not waterproof. Precautions must be taken to ensure that liquid cannot enter the unit. ! Do not expose VinciLab to extreme heat or cold sources and to direct sunlight for extended periods of time. ! Operating VinciLab outside the following ranges may affect performance: o Temperature: 5° to 40° C. o Relative humidity: 0% to 90% (noncondensing) ! Never force a connector into a port. When connecting a sensor, make sure that the sensor cable connector matches the port, and that you have positioned the... -
Page 51: Battery Precautions
WARRANTY DISCLAIMER: PROPER USE OF A TAP-SCREEN Please note that a touch screen responds best to a light tap from the pad of your finger or a special non-metallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the glass surface and void the warranty. 5. Battery precautions • Do not place the battery in or near fire, on stoves or other high temperature locations such as direct sunlight. Doing so may cause the battery to generate heat, explode or ignite, or generate a toxic gas if placed in contact with fire. • In the event the battery leaks and the fluid gets into one's eye, do not rub the eye. Rinse well with water and immediately seek medical care. If left untreated, the battery fluid could cause damage to the eye. • Discard batteries according to local regulations. 6. Safety Information VinciLab is developed and produced in conformity with CE regulations. - Page 52 This product is to be used for educational purposes only. It is not appropriate for industrial, medical, research, or commercial applications. 52 | VinciLab User’s Guide...
