APS Auto Parts Specialist IB20DCE8 Installation Instructions

For 2005-2018 toyota tacoma regular cab

Download this manual

Installation Instructions for IB20DCE8

Application: For 2005-2018 Toyota Tacoma Regular Cab

Estimated Time: 1 to 2 hours

by APS Auto Parts Specialist Inc.

Page 1 of 3

For 2005-2018 Toyota Tacoma Regular Cab

Disclaimer: Instructions intended for persons

aged 18+ please do not attempt without adult

supervision. Instructions are not intended to

replace professional installation. Damage

from improper installation, misuse or

modification to the product voids the

manufacturer's warranty.

(6",5",4")RUNNING BOARD

Rev:20181101

Need help?

Do you have a question about the IB20DCE8 and is the answer not in the manual?

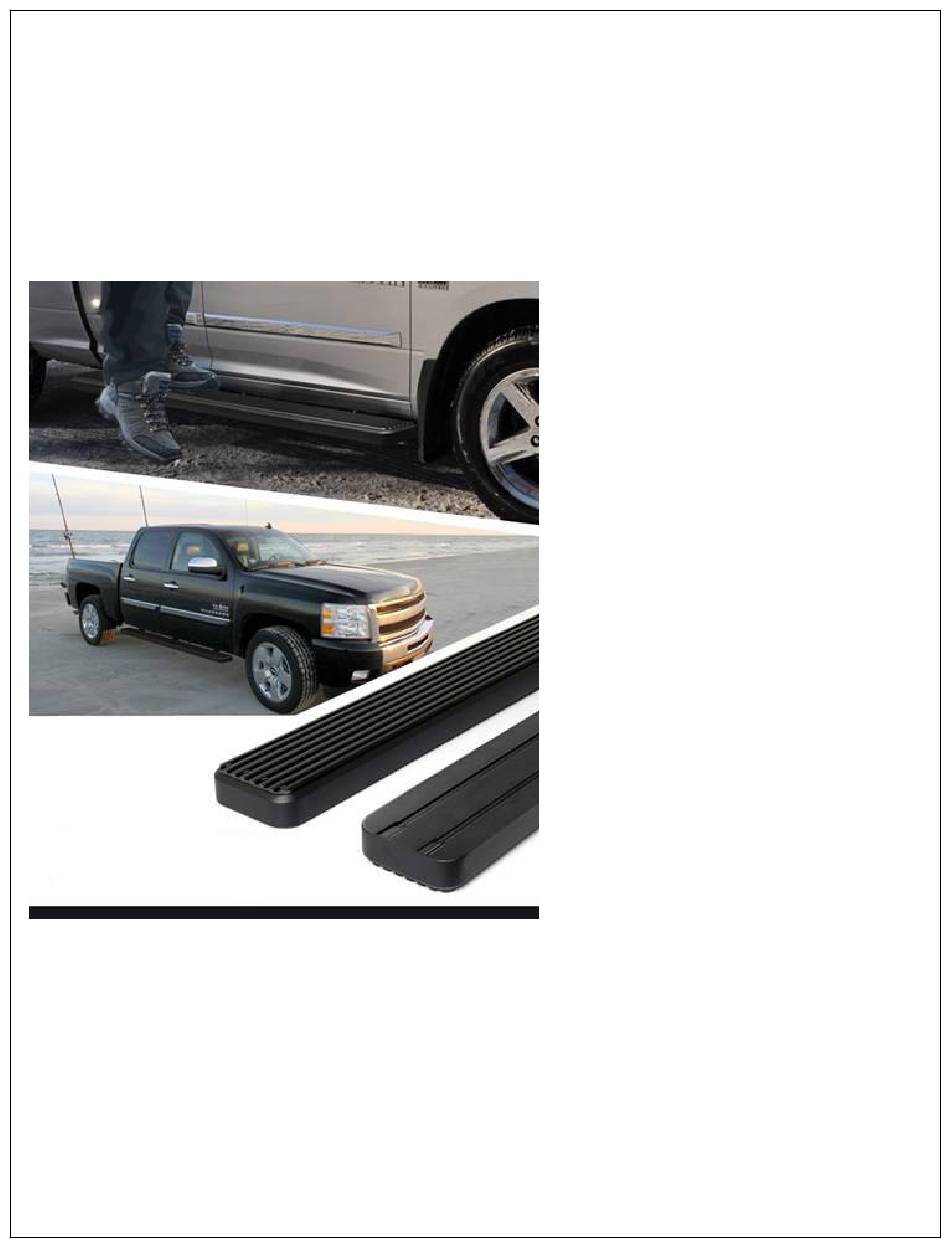

Page 1 (6”,5”,4”)RUNNING BOARD For 2005-2018 Toyota Tacoma Regular Cab Rev:20181101 Installation Instructions for IB20DCE8 by APS Auto Parts Specialist Inc. Application: For 2005-2018 Toyota Tacoma Regular Cab Estimated Time: 1 to 2 hours Disclaimer: Instructions intended for persons aged 18+ please do not attempt without adult supervision.
Page 2 (6”,5”,4”)RUNNING BOARD For 2005-2018 Toyota Tacoma Regular Cab Rev:20181101 PARTS LIST: Item QTY Description Item Description Running Board(use for left or right) M8 Lock Washers Driver Front Mounting Bracket(DFM) 8mm x 24mm OD x 2mm Flat Washers 16 M6X1.0 - 20mm T-Bolts Passenger Front Mounting Bracket(PFM) 16 M6 Flat Washers Driver Rear Mounting Bracket(DRM)
Page 3 (6”,5”,4”)RUNNING BOARD For 2005-2018 Toyota Tacoma Regular Cab Rev:20181101 Driver Side Installation Pictured Front Front Remove plastic plugs (if equipped) or hex bolts from threaded holes (Fig 2) Driver/Left Front Mounting Bracket (Fig 1) Driver/Left Front Mounting Location Pictured (2) M8 x 30mm Hex Bolts (2) M8 Lock Washers (2) M8 Flat Washers Front...
