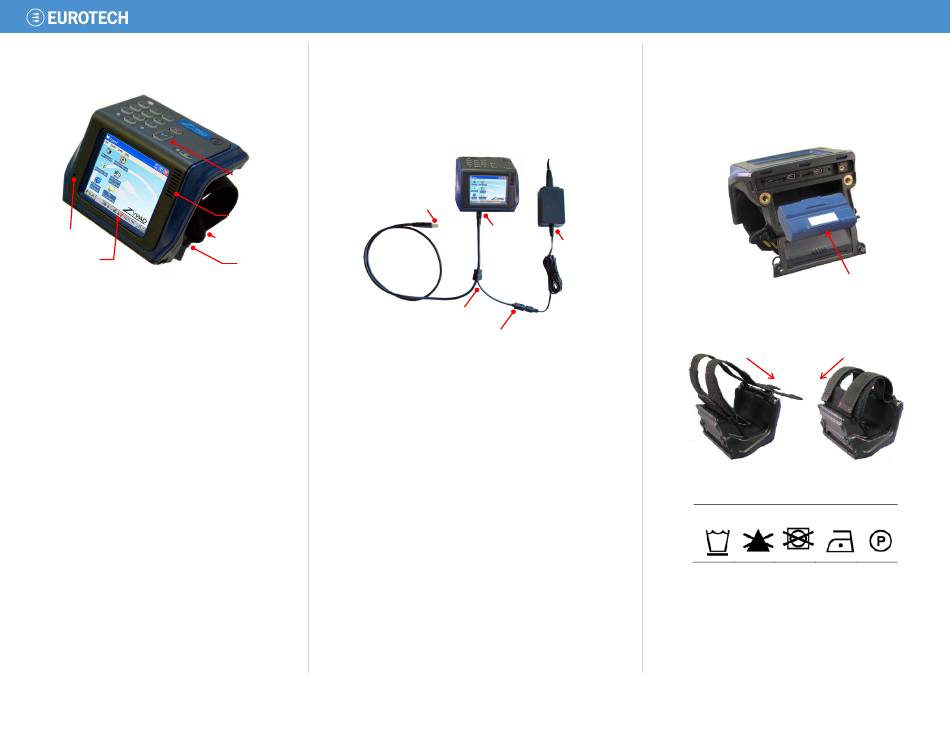

Eurotech Zypad WL15 Series Quick Start

Features
Microphone
Display and
Touchscreen
Zypad WL15xx Kit
Your kit includes the following components:
• Zypad WL15xx
• Wrist strap with armband
• Stylus
• Lithium-Ion battery pack
• AC adapter and regional power cord
• USB host cable (for terminal)
• Y-USB client cable (for USB & power)
For full product details, download the Zypad
WL15xx User Manual (#110125-0000) from the
Eurotech Support Forums.
Use only the Li-Ion battery pack provided by
Eurotech. Use of any other battery pack will
void your warranty and may damage your
system.
Observe the precautions detailed in the user
manual, as well as good technical judgment,
whenever this product is used.
Y-USB Client Cable
The Y-USB client cable allows for data
communication to a PC and fast charging
simultaneously. Note that the AC adapter can
connect directly to the USB device port, if the host
PC connection is not required.
Keypad
To Host PC
Speaker
Wrist Strap
Stylus
Y-USB Client Cable
Charging the Battery
The battery pack is discharged when shipped and
must be fully charged before first use. Charge the
battery using one of the following methods:
Method
Battery charger station
USB device port directly to AC adapter
USB device port to host PC using
Y-USB client cable
Recovering from a Low Charge
If the battery drains below 10% charge during
system use, complete the following steps to reboot
the system and recharge the battery pack:
1. Remove the battery pack for 15 sec. minimum.
2. Plug the AC adapter into the USB device port.
3. Boot the system.
4. Install the battery pack to recharge.
Page 1
USB
Device Port
AC
Adapter
Power Supply Port
Charging Time
(Max Hours)
6
6
11
Page 2
Zypad WL15xx - Quick Start
Assembling your Zypad
Installing the Battery
Install the battery by aligning it with the
enclosure and pressing it into place. Secure
the external locking screws.
Installing the Wrist Strap
Fasten the wrist strap to the strap holders and
adjust for a comfortable fit on either arm.
The wrist strap can be removed for machine
washing.
Machine Washing Care Labels
40
Replacing the Battery
The Zypad WL15xx supports "hot-swapping"
the battery when in Suspend mode. For
instructions, refer to the Zypad WL15xx User
Manual.
