BACK PAGE
COVER PAGE
TGAES OPEN PATH
The following items for the TGAES may be ordered:
COMBUSTIBLE GAS DETECTOR
Accessories:
Functional Test Filter, P/N 120-0056

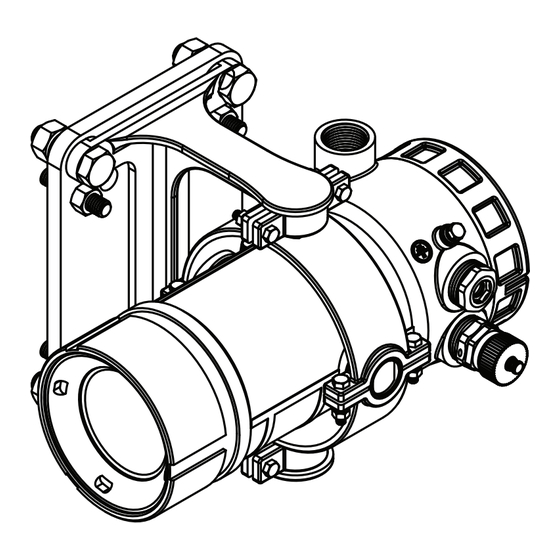

TGAES Open Path Gas Detector Set (Methane), P/N 100-0023-02
Visor, P/N 125-0006
TGAES Open Path Gas Detector Set (Propane), P/N 100-0024-01
Aperture Attachments (set), P/N 125-0017
Mounting Plate, 120-0084
Contact ESP Safety:
USA
555 North First Street
San Jose, CA 95112
USA
Tel: (408) 886-9746
Fax: (408) 668-0848
email: info@espsafetyinc.com
ESP
SAFETY INC
Advertisement
Related Manuals for ESP Safety TGAES 100-0023-02
Summary of Contents for ESP Safety TGAES 100-0023-02
- Page 1 TGAES Open Path Gas Detector Set (Methane), P/N 100-0023-02 Visor, P/N 125-0006 TGAES Open Path Gas Detector Set (Propane), P/N 100-0024-01 Aperture Attachments (set), P/N 125-0017 Mounting Plate, 120-0084 Contact ESP Safety: 555 North First Street San Jose, CA 95112 Tel: (408) 886-9746 Fax: (408) 668-0848 email: info@espsafetyinc.com...
- Page 2 MECHANICAL INSTALLATION: MECHANICAL INSTALLATION: 1. Pole mounting of the TGAES requires the use of the supplied mounting plate. 1. The Receiver (RX) and Transmitter (TX) must be placed at equivalent elevations. Pole mounting of TGAES: 3-inch (nominal) pipe U-Bolts (Typ. of 4ea) Mounting Plate (Typ.
