SeaSTAR OPTIMUM EPS Installation Manual page 39

notIce
For clarity only positive wire
connections are shown.
PORT
ENGINE
SW
+
PORT
12V BATTERY

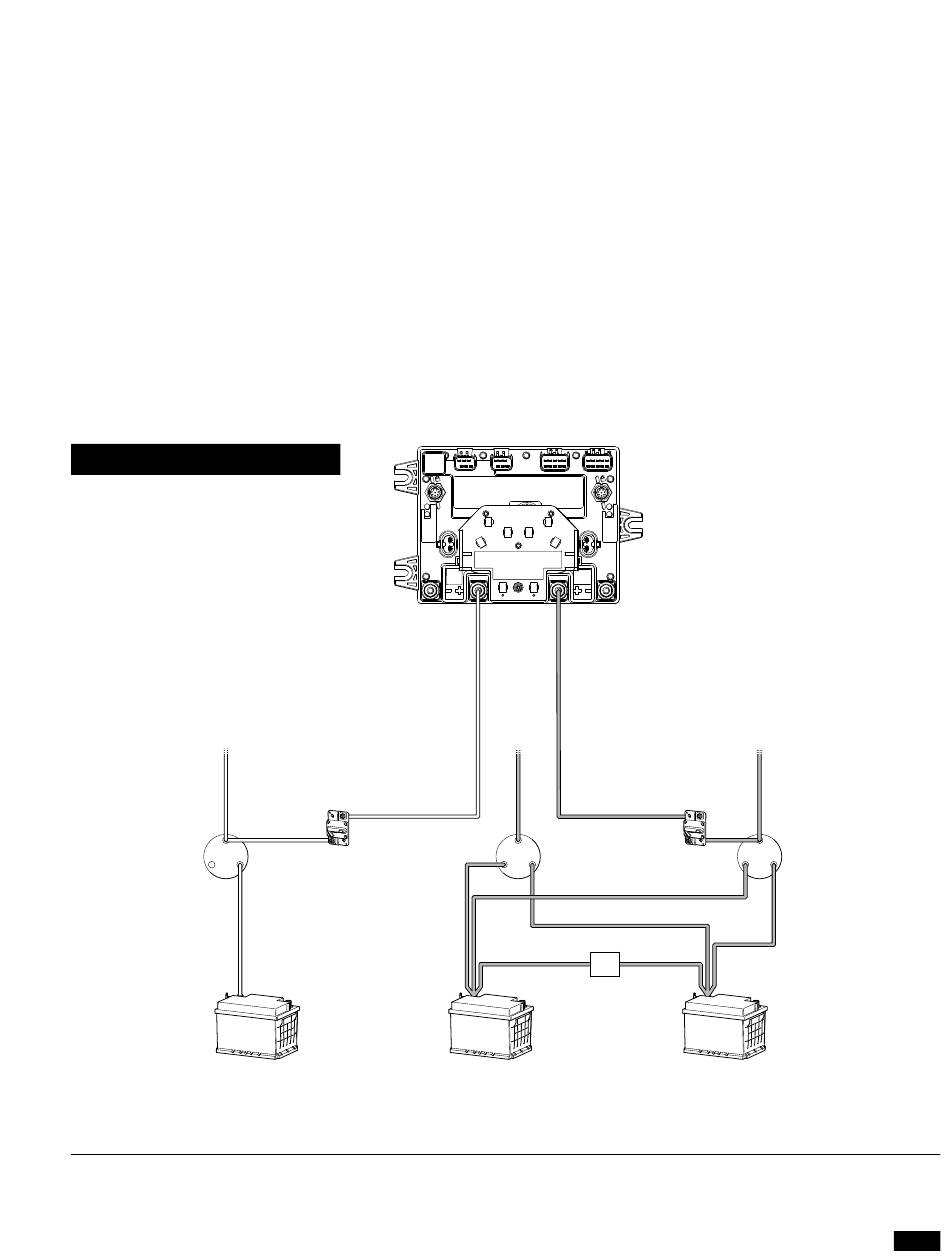

Figure 4-15. Sample triple engine connection with ACR.
© 2014 SeaStar Solutions
triple and quad engine applications
To prevent the Optimus EPS/360 system from draining batteries while
trolling on a single motor, it is necessary to connect the batteries in
such a way that the PCM is always connected to a battery being charged.
Figure 4-15 illustrates a possible triple engine connection using
battery switches with a combine function and an automatic charging
relay (ACR). In this example, if the user is trolling on the center engine
the ACR will detect that the starboard battery is being discharged
and connect it to the center battery. This ensures that the steering
system will not deplete the battery.
PORT
SIDE
– +
Breaker
+
–
12V BATTERY
Optimus Installation Manual, Rev. E
PCM
+ –
CENTER
ENGINE
SW
ACR
–
CENTER
STARBOARD
SIDE
STARBOARD
ENGINE
Breaker
SW
+
–
STARBOARD
12V BATTERY
4-17
