EastLink DCX 700 Setup Manual

Digital TV Setup Guide
Write down your HD Receiver Serial Number here for reference:
Your Serial Number is a 12 digit code located on the bottom of your HD Receiver either starting with a GI or an M
What's Included
Install Kit
Easy Setup Guide
Power Cord
Audio/Video Cables
HD Receiver
1
Let's Get Started
(A) Locate the coax cable going from the cable wall outlet to
your TV (or other device)
Disconnect the coax cable from your TV (or other device)
(B) Take the coax cable that you disconnected from your TV
(or other device) and connect it to the [CABLE-IN] port on the
HD Receiver.
2
Getting Connected
A
(A) Connect one end of the HDMI cable provided with your
install kit to the port on the back of the HD Receiver.
(B) Take the other end of the HDMI cable and connect it to
the [HDMI 1] port on the back of your TV. Make sure your TV
is on HDMI 1 input.
OR
2
Connect This Way
B
(C) Do the same process with the Audio Video Cables.
(D) Attach the power cord to the back of the HD Receiver.
Plug the other end of the power cord into the power outlet.
3
1..2..3...ACTIVATE!
(A) To activate your HD Receiver ensure that your TV is on the correct input
(B) Please call 1-866-238-2390 to activate your HD Receiver. Remember to have your EastLink account number and the serial
number of the receiver.
(C) Install the batteries provided in the remote. Your remote control is automatically programmed to work for your HD Receiver.
(D) Please follow the instructions on the back of the remote to program it for your device (TV, VCR, etc)
(E) Please note it may take several minutes for your HD Receiver information to upload. If you are having technical problems
with your equipment please call 1-866-238-2390

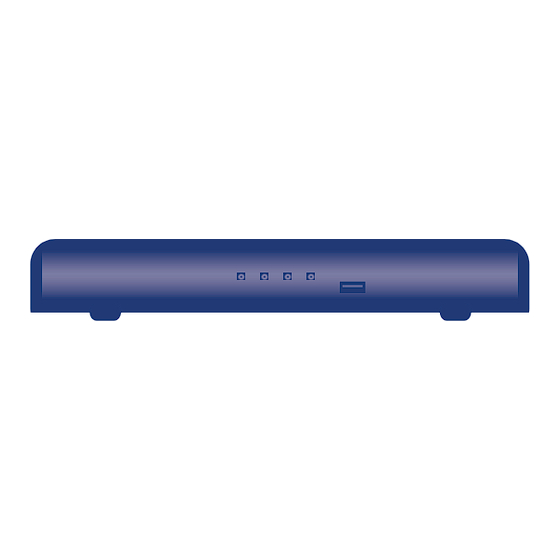

High Definition Receiver
HDMI Cord
2 AA Batteries
Remote
A Few Recommendations
Before You Begin
You will need access to a working electrical outlet
Place HD Receiver in a secure location where it can be easily
detected by the remote
Have your account number and the serial number of the
HD Receiverhandy to activate your receiver. Your Serial Number
is a 12 digit code located on the bottom of your HD Receiver
either starting with a GI or an M
NOTE: It may take several minutes for the Guide information to
upload after activation.
A
DISCONNECT
CABLE IN
HDMI
B
B
A
CABLE IN
HDMI
CABLE IN
HDMI
DID YOU KNOW: The HDMI
cable produces your picture
and sound.
C
D
D
HD Receiver.
HD Receiver.
HD Receiver.
