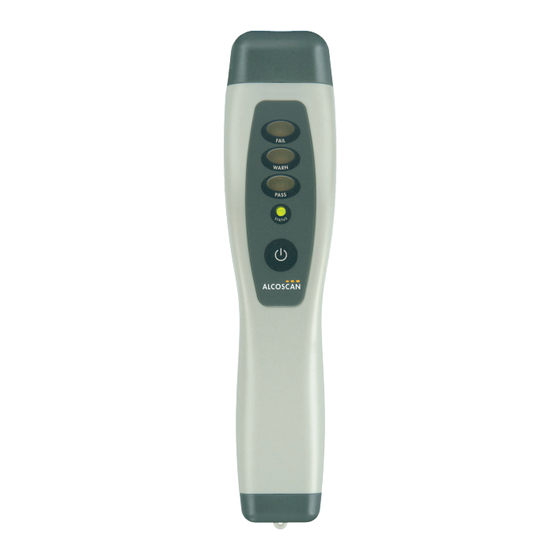

- Page 1 PASSIVE BREATH ALCOHOL TESTER Calibration manual...
- Page 2 Federal Communications Commission (FCC) Disclaimer Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operations are subject to the following 2 conditions: 1.
- Page 3 Systems is the trading style of Alcohol Countermeasure Systems Corp. © 2018 Alcohol Countermeasure Systems The information disclosed in this document is the valuable property of Alcohol Countermeasure Systems (International) Inc. and all copyright and other proprietary rights to this document are reserved. No reproduction...
- Page 4 ALCOSCAN BREATH ALCOHOL TESTER FEATURES...
-
Page 5: Table Of Contents
Safety and precautions ....................1 General........................1 Moisture, contamination and cleaning ..............1 Power ........................2 Alcohol reference solution ..................2 Introduction ........................3 Assistance........................3 When to calibrate the ALCOSCAN tester ..............3 Calibration ........................4 Calibration equipment ....................4 ALCOSIM simulator setup ..................5 Entering ADMIN mode....................7 Calibration procedure ....................8 Troubleshooting ......................9 ADMIN mode password input...................9... -
Page 6: Safety And Precautions
CAUTION – Hot Surface! Avoid contact with the ALCOSIM simulator heating element • Only use parts supplied by Alcohol Countermeasure Systems Corp • Ensure that the proper amount of solution is added; do not under-fill or over-fill the ALCOSIM simulator •... -
Page 7: Power
POWER • Check that the ALCOSIM simulator power ratings conform to the local supply rating • Power off the ALCOSIM simulator after use • When assembling, disassembling or preparing the ALCOSIM simulator for use, ensure that it is not plugged into an electrical outlet •... -
Page 8: Introduction
INTRODUCTION This guide describes the steps for calibrating the ALCOSCAN breath alcohol tester using the ALCOSIM breath alcohol simulator and an alcohol reference solution. NOTE: For information about the general usage of the ALCOSCAN tester and ALCOSIM simulator, refer to their respective instruction manuals. -
Page 9: Calibration
CALIBRATION The simulator calibration method uses a known water alcohol solution to produce an air to alcohol vapor. To simulate the human breath, this vapour is thermostatically maintained at a constant temperature of 34 °C. The result is an accurate method of recreating a known breath alcohol concentration (BrAC). -
Page 10: Alcosim Simulator Setup
It takes approximately 15 minutes for the solution to reach 34 °C. The current temperature is displayed on the LCD display • Replace the alcohol reference solution every 20 tests / 5 days to maintain proper alcohol concentration and accuracy ALCOSCAN... - Page 11 ALCOSIM SIMULATOR ASSEMBLY DIAGRAM Plastic tubing Round mouthpiece Diffuser Power cable CALIBRATION MANUAL...
-
Page 12: Entering Admin Mode
ENTERING ADMIN MODE The ALCOSCAN tester must be in ADMIN Mode in order to calibrate. Follow these steps to enter ADMIN Mode: Press the power button 4 times in quick succession and hold (click, click, click, click and hold). Release the power button when 1 beep is heard. -
Page 13: Calibration Procedure
NOTE: Ensure that the unit is within the ambient temperature range of 20 to 30 °C. Position the ALCOSCAN tester 10 cm away from the diffuser and ensure that drafts of air (e.g. from air conditioners, fans, etc.) cannot interfere with the sample. -
Page 14: Troubleshooting
ADMIN MODE PASSWORD INPUT The ALCOSCAN tester returns to a ready state if the password is not entered within 15 seconds. The tester will also return to a ready state after the password has been entered incorrectly with a “three beeps”... - Page 16 CAM-ENG-60-000712-C © 2018...
