- Page 1 TIM-900 Dispensing nozzle for oil and industrial fluids Installation and Use Manual BULLETIN M0095A REV.1...
-
Page 2: Table Of Contents
Table of Contents C Using the manual p. 3 D Getting to know the TIM-900 p. 4 Detailed information on the TIM-900 MANUAL and AUTO operation E Installing the TIM-900 p. 11 Requirements of the plant Line pressure relief Line flushing... -
Page 3: C Using The Manual
In the Table of Contents a symbol alongside each paragraph indicates the person this information is intended for. All paragraphs marked with this symbol concern the Operator. The operator is the person who uses the TIM-900 to carry out dispensing operations. Therefore the Operator is Operator not expected to read paragraphs other than those marked with this symbol. -
Page 4: D Getting To Know The Tim-900

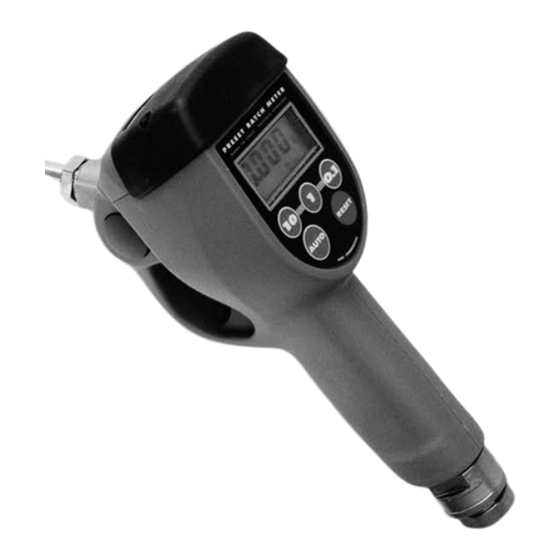

Getting to know the TIM-900 The TIM-900 is a dispensing nozzle for oils and other uids, to be installed as a nal shuto device at the end of pressurized exible hoses. -
Page 5: D1 Detailed Information On The Tim-900
PRESELECTED amount (AUTO mode). Detailed information on the TIM-900 Handle An external shock-resistant plastic cover contains all the components of the TIM-900 and provides an ergonomic handle. The battery pack The battery pack is placed in the front part of the handle and it is xed by means of four cross-head screws. - Page 6 Trigger The TIM-900 is equipped with a balanced valve, controlled by a trigger, which can be activated using just one nger. The trigger, protected against accidental starting, may be: Completely pulled Released Locked in open position The valve is in open...
- Page 7 TIM-900 uses the principle of the oval gears. Multi-position extension To guarantee an easy use, the TIM-900 is equipped with a multi-position extension. It can be positioned by the operator in 5 di erent pre-set positions within a 75°...
- Page 8 In addition the automatic dripples valve can be rotated of 240°.
-
Page 9: D2 Manual And Auto Operation
The TIM-900 has been designed to ensure the maximum safety during use and to avoid oil spillage due to an improper use or the Operator's carelessness. In particular the TIM-900 does not allow the valve to be locked in open position during MANUAL mode. This avoids a continuous dispensing should the Operator be absent or has not pre-set an automatic stop value (AUTO mode). - Page 10 Read the instructions given in paragraph F2 carefully before dispensing in AUTO mode. The TIM-900 allows the user to lock the trigger in open position only when the display shows the message AUTO. To lock the trigger in open position: * Pull it completely * Then release it.
-
Page 11: E Installing The Tim-900
Installing the TIM-900 This paragraph describes the necessary operations to be carried out when the TIM-900 is installed for the rst time on a new system or to replace an existing nozzle with the TIM-900. Requirements of the system The TIM-900 has been designed to... -
Page 12: E2 Line Pressure Relief
• Operate the valve of the nozzle to be replaced (or of the TIM-900 to be disassembled for maintenance reasons) dispensing into a suitable container in order to release the line pressure. -
Page 13: E4 Preliminary Checks On The Tim-900
To remove and re-install the lter refer Female thread 1/2" BSP to paragraph "H2". Female thread 1/2" NPT • Check that the TIM-900 to be installed is complete and in good condition, Warning making sure that the lter is clean and correctly installed (see paragraph “H2”). - Page 14 • Make sure that gasket B on the nut is in its seat. • Lubricate the gasket and its seat. Warning • Tighten end D on TIM-900 by means of two wrenches; An improper tightening of the while the rst one on outlet A blocks...
-
Page 15: E7 Air Purging From The Lines
After the installation of the nozzle a • With the shut-off valve still closed, certain quantity of air will be present insert the extension of the TIM-900 into both inside the exible hose the opening of a container of a suitable... -
Page 16: F Using The Tim-900
Using the TIM-900 Warning • The TIM-900 has been designed for professional use and must be used only by adult personnel properly trained for the intended purpose. • The TIM-900 must not be used outside the operating ranges (see Technical Data in paragraph M1) or for uids other than lubricants and antifreeze mixtures. - Page 17 To Dispence in AUTO mode To select a new PRESET value (for The TIM-900 allows the user to select example 12.3) use the numeric keys. the automatic stop value, "PRESET value", with di erent procedures: Direct setting of a new...
- Page 18 Selected value. yet entered the AUTO mode by con rming the displayed value. Selecting a PRESET value The TIM-900 allows the operator to use If the unit is o , type RESET the most frequently used PRESET values to re-start it.
- Page 19 AUTO LAST The blinking message AUTO Press AUTO again. The indicates that the phase for the TIM-900 displays the selection of the desired value is PRESET value stored in still in progress and that you AUTO 1:...
-
Page 20: F2 Dispensing In Auto Mode
The dispensed amount is added to the position. previous one in AUTO mode. The PRESET value previously set, • After this TIME OUT the TIM-900 still displayed in the Total, starts blinking to allows the user to continue the indicate that the pre-set value has been dispensing but only in MANUAL mode. -
Page 21: G Customizing The Tim-900
Customizing the TIM-900 means using the options o ered by the TIM-900 to guarantee an easy, handy and exact use. The customization of the TIM-900 can be carried out by the Manager using the customization Menu which permits the following customization functions: Setting the most frequently used PRESET Values. - Page 22 Press and hold down the AUTO key until the Simultaneously press the AUTO and TIM-900 displays: RESET keys and hold them down until the TIM-900 displays: Blinking Blinking point Now you have entered the following Now you have entered the following...
-
Page 23: G2 Frequently Used Preset Values
To exit from the customization mode, independent of the activity in progress, press RESET. The settings being displayed become immediately operational. Frequently used PRESET Values The TIM-900 allows the When the TIM-900 displays: Operator to store 5 different most frequently Blinking used PRESET values (AUTO 1…... - Page 24 If, for example, you want to assign the value 31.2 to AUTO 1 press: Blinking The TIM-900 will display: Press and hold down the AUTO key to go to the next activity. Warning Press RESET to By holding down the keys the exit from the value continues to vary.
-
Page 25: G3 Units Of Measurement
Units of Measurements The TIM-900 allows the user to select one of the following Units of Measurement: • QTS = QUARTS • PTS = PINTS • LIT = LITERS Press and hold down • GAL = GALLONS (U.S. Gallons) the AUTO key to go to the next activity. -
Page 26: G6 Stop Precision In Auto Mode
• As soon as the amount dispensed exceeds 99 Units, the TIM-900 displays only one decimal digit. Auto RESET The TIM-900 is equipped with an Auto Press AUTO again to go back RESET function. to the previous selection. When the function is activated, a few... - Page 27 Stop Precision factor, called PS factor. The Manager, during the customization of the TIM-900, can Go on pressing AUTO until the select a PS factor between ZERO desired PS factor value is reached.
-
Page 28: G7 Calibration
How to calibrate a calibrated container. The TIM-900 allows the user to carry out a rapid electronic calibration by During dispensing the modifying the Calibration Factor (K TIM-900 displays: Factor). - Page 29 Do not reduce the flow-rate to the calibration operation. reach the graduated area of the calibrated container. The TIM-900 is ready to accept the The correct technique to be used modification of the indicated value to at the final stages of the filling make it correspond to the real Value.
- Page 30 The TIM-900 display: The TIM-900 is ready to accept the direct New K Factor. modification of the After a few seconds the TIM-900 K Factor. automatically exits from the Press the "10" key to customization mode and starts increase the indicated using the new Calibration Factor.
-
Page 31: H Maintenance Of The Tim-900
Calibration factor. Maintenance of the TIM-900 The only routine maintenance operations required for the TIM-900 are: * the replacement of the batteries; * the cleaning of the lter. These activities can be easily carried out using standard tools. -
Page 32: H2 Cleaning The Filter
TIM-900, previously set, remains shown in the battery operational at the next re-starting. compartment. Cleaning the lter The TIM-900 is equipped with a check it each time a flow-rate removable filter for inspection and reduction is detected. cleaning, which is installed inside the To reduce the frequency of swivel. -
Page 33: L Product Identification
To clean or replace the filter: Warning A. Release the line pressure and * Do not use filters which have dismount the TIM-900 in compliance been damaged during improper with the instructions given in paragraph dismounting or cleaning operations. * Always reposition the filter with B. -
Page 34: M Construction Data
Construction data Technical data Indications: Measuring principle: Batch total: Oval gears oating point: 0.000 to 999.9 units Total/Resettable total: 999 999 units Flew Range: 1 to 30* liter/min Presettable amount: 0.26 to 7.9 gpm 0.1 to 99.9 units Pressure Range: Batteries: 50* to 7000 KPa 4 x AA size 1.5 Volt... -
Page 35: M2 Dimensions
Dimensions Ø BSP 1/2" Ø NPT 1/2"... -
Page 36: M3 Exploded Drawing And Spare Parts List
Exploded drowing and spare parts list Position No. Part description Q.ty Rubber Protection Filter Unit Locking Ring Battery Pack Batteries 1.5 V size AA Articulated End Warning When ordering spare parts, please always specify: - Position No. of spare part, - Model, - Serial No. -
Page 37: N Disposal
Disposal The components must be given to companies that specialise in the disposal and recycling of industrial waste and, in particular, the DISPOSAL OF PACKAGING. The packaging consists of biodegradable cardboard which can be delivered to companies for normal recycling of cellulose.
