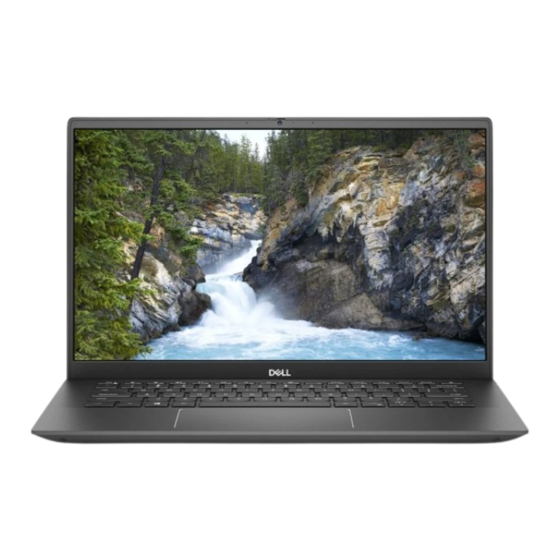

Vostro 5401
Service Manual
Regulatory Model: P130G
Regulatory Type: P130G001
July 2020
Rev. A01

Advertisement

Table of Contents
loading

Related Manuals for Dell Vostro 5401

Summary of Contents for Dell Vostro 5401

  • Page 1 Vostro 5401 Service Manual Regulatory Model: P130G Regulatory Type: P130G001 July 2020 Rev. A01...
  • Page 2 HOIATUS: HOIATUS tähistab teavet, mis hoiatab võimaliku varakahju või tervisekahjustuse või surma eest. © 2020 Dell Inc. või selle tütarettevõtted. Kõik õigused on kaitstud. Dell, EMC ja muud kaubamärgid on ettevõtte Dell Inc. või selle tütarettevõtete kaubamärgid. Muud kaubamärgid kuuluvad nende omanikele.

  • Page 3: Table Of Contents

    Contents Chapter 1: Arvutiga töötamine......................7 Ohutusjuhised..................................7 Enne arvuti sees toimetamist............................7 Ohutuse ettevaatusabinõud............................8 Elektrostaatilise lahenduse (ESD) kaitse........................8 Elektrostaatilise lahenduse (ESD) välikomplekt......................9 Pärast arvuti sees toimetamist............................9 Chapter 2: Major components of your system...................11 Chapter 3: Lahtivõtmine ja kokkupanek................... 13 Recommended tools................................
  • Page 4 Kõlarid....................................40 Removing the speakers (in 3-cell battery configuration)..................40 Installing the speakers (in 3-cell battery configuration).................... 41 Removing the speakers (in 4-cell battery configuration)..................42 Installing the speakers (in 4-cell battery configuration)................... 43 System fan................................... 45 Removing the system fan - UMA..........................45 Installing the system fan - UMA..........................
  • Page 5 Randmetoe ja klaviatuurisõlm............................90 Removing the palm-rest and keyboard assembly - UMA..................90 Installing the palm-rest and keyboard assembly - UMA.................... 91 Removing the palm-rest and keyboard assembly - discrete..................92 Installing the palm-rest and keyboard assembly - discrete..................93 Chapter 4: Tarkvara........................95 Windowsi draiverite allalaadimine............................
  • Page 6 BIOS-i välkmälu ülekirjutamine............................120 BIOS-i värskendamine (USB-võti)...........................120 Backup media and recovery options..........................120 Wi-Fi-toitetsükkel................................121 Releasing Ethernet (RJ-45) cable............................ 121 Chapter 7: Abi saamine.........................122 Delli kontaktteave................................122 Contents...

  • Page 7: Chapter 1: Arvutiga Töötamine

    Arvutiga töötamine Teemad: • Ohutusjuhised Ohutusjuhised Eeltingimused Et kaitsta arvutit viga saamise eest ja tagada enda ohutus, kasutage järgmisi ohutusjuhiseid. Kui pole teisiti märgitud, eeldatakse igas selle dokumendi protseduuris, et on täidetud järgmised tingimused. • Olete lugenud arvutiga kaasas olevat ohutusteavet. •...

  • Page 8: Ohutuse Ettevaatusabinõud

    4. Võtke kõik võrgukaablid arvuti küljest ära. ETTEVAATUST: Võrgukaabli lahti ühendamiseks ühendage kaabel esmalt arvuti küljest ja seejärel võrguseadme küljest lahti. 5. Ühendage arvuti ja kõik selle küljes olevad seadmed elektrivõrgust lahti. 6. Vajutage emaplaadi maandamiseks pikalt toitenuppu, kuni arvuti on lahti ühendatud. MÄRKUS: Elektrostaatilise lahenduse vältimiseks maandage ennast, kasutades randme-maandusriba või puudutades regulaarselt värvimata metallpinda samal ajal, kui puudutada arvuti taga olevat liidest.

  • Page 9: Elektrostaatilise Lahenduse (Esd) Välikomplekt

    • Kasutage korralikult maandatud kaabliga ESD-randmerihma. Juhtmeta antistaatiliste rihmade kasutamine ei ole enam lubatud, sest need ei paku piisavat kaitset. Korpuse puudutamine enne osade käsitsemist ei kaitse suurema ESD-tundlikkkusega komponente piisavalt. • Käsitsege kõiki staatilise elektri suhtes tundlikke komponente antistaatilises piirkonnas. Võimaluse korral kasutage antistaatilisi põranda- ja töölauamatte.
  • Page 10 Sammud 1. Ühendage arvutiga kõik telefoni- või võrgukaablid. ETTEVAATUST: Võrgukaabli ühendamiseks ühendage kaabel kõigepealt võrguseadme ja seejärel arvuti külge. 2. Ühendage arvuti ja kõik selle küljes olevad seadmed toitepistikusse. 3. Lülitage arvuti sisse. 4. Vajaduse korral kontrollige, et arvuti töötaks õigesti, käivitades funktsiooni SupportAssisti tugidiagnostika. Arvutiga töötamine...

  • Page 11: Chapter 2: Major Components Of Your System

    Major components of your system 1. Base cover 2. Battery 3. DC-in port 4. Heat sink 5. Memory module 6. Solid-state drive shield 7. M.2 2230 SSD 8. Speaker 9. System board 10. Touchpad 11. Palm-rest and keyboard assembly 12. Display assembly 13.
  • Page 12 18. M.2 2280 SSD NOTE: Dell provides a list of components and their part numbers for the original system configuration purchased. These parts are available according to warranty coverages purchased by the customer. Contact your Dell sales representative for purchase options.

  • Page 13: Chapter 3: Lahtivõtmine Ja Kokkupanek

    Lahtivõtmine ja kokkupanek Teemad: • Recommended tools • Screw list • tagakaas • • WLAN-kaart • Mälumoodulid • Pooljuhtketas • Kõlarid • System fan • Jahutusradiaator • Nööppatarei • I/O-paneel • Power button with fingerprint reader (optional) • DC-in port •...
  • Page 14 Table 1. Screw list (continued) Component Screw type Quantity Screw image Battery M2x3 WLAN M2x3 Solid-state drive -1 M2x3 Solid-state drive - 2 M2x3 Solid-state drive -2 support M1.6x2 bracket System fan M2x2 Heat sink - UMA M2x5.35 - captive Heat sink - discrete M2x5.35 - captive Hinge screws...

  • Page 15: Tagakaas

    tagakaas Removing the base cover Prerequisites Follow the procedure in before working inside your computer. About this task The figure indicates the location of the base cover and provides a visual representation of the removal procedure. Lahtivõtmine ja kokkupanek...

  • Page 16: Installing The Base Cover

    Steps 1. Remove the five screws (M2x4) that secure the base cover to the palm-rest and keyboard assembly. 2. Loosen the two captive screws (M2x8.8) that secure the base cover to the palm-rest and keyboard assembly. 3. Pry open the base cover starting from the recess at the hinge area and work your way around and follow the "guidance line" indicated in the image to remove the base cover.
  • Page 17 Lahtivõtmine ja kokkupanek...

  • Page 18: Aku

    Steps 1. Place the base cover on the palm-rest and keyboard assembly, and snap the base cover into place. 2. Tighten the two captive screws (M2x8.8) that secure the base cover to the palm-rest and keyboard assembly. 3. Replace the five screws (M2x4) that secure the base cover to the palm-rest and keyboard assembly. Next steps Follow the procedure in after working inside your...

  • Page 19: Removing The 3-Cell Battery - Uma/Discrete

    • Kui aku on paisumise tulemusena arvutis kinni, ärge üritage seda vabaks kangutada, kuna liitium-ioonaku torkamine, painutamine või purustamine võib olla ohtlik. Sellisel juhul võtke abi saamiseks ühendust Delli tehnilise toega. Vt www.dell.com/contactdell. • Ostke alati originaalakusid veebisaidilt www.dell.com Delli volitatud partneritelt või edasimüüjatelt.

  • Page 20: Installing The 3-Cell Battery - Uma/Discrete

    Installing the 3-cell battery - UMA/discrete Prerequisites NOTE: The battery type in your computer varies depending on the configuration ordered. If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the location of the 3-cell battery in an UMA configuration and provides a visual representation of the installation procedure.

  • Page 21: Removing The 4-Cell Battery - Uma/Discrete

    Removing the 4-cell battery - UMA/discrete Prerequisites NOTE: The battery type in your computer varies depending on the configuration ordered. 1. Follow the procedure in before working inside your computer. 2. Remove the base cover. About this task The figure indicates the location of the battery in a discrete configuration and provides a visual representation of the removal procedure. Steps 1.

  • Page 22: Wlan-Kaart

    About this task The figure indicates the location of the battery in a discrete configuration and provides a visual representation of the installation procedure. Steps 1. Place the battery on the palm-rest and keyboard assembly and align the screw holes on the battery with the screw holes on the palm- rest and keyboard assembly.

  • Page 23: Installing The Wlan Card - Uma

    Steps 1. Remove the single screw (M2x3) that secures the WLAN card bracket to the WLAN card. 2. Remove the WLAN card bracket from the WLAN card. 3. Disconnect the antenna cables from the WLAN card. 4. Slide and remove the WLAN card from the WLAN card slot. Installing the WLAN card - UMA Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.

  • Page 24: Removing The Wlan Card - Discrete

    Steps 1. Align the notch on the WLAN card with the tab on the WLAN card slot and insert the WLAN card at an angle into the WLAN card slot. 2. Connect the antenna cables to the WLAN card. 3. Align and place the WLAN card bracket on the WLAN card. 4.

  • Page 25: Installing The Wlan Card - Discrete

    Steps 1. Remove the single screw (M2x3) that secures the WLAN card bracket to the WLAN card. 2. Remove the WLAN card bracket from the WLAN card. 3. Disconnect the antenna cables from the WLAN card. 4. Slide and remove the WLAN card from the WLAN card slot. Installing the WLAN card - discrete Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.

  • Page 26: Mälumoodulid

    Steps 1. Align the notch on the WLAN card with the tab on the WLAN card slot and insert the WLAN card at an angle into the WLAN card slot. 2. Connect the antenna cables to the WLAN card. 3. Align and place the WLAN card bracket on the WLAN card. 4.

  • Page 27: Installing The Memory Modules - Uma

    About this task The figure indicates the location of the memory module and provides a visual representation of the removal procedure. Steps 1. Lift the mylar covering the memory module. 2. Using your finger tips gently pry the retention clips away from the memory module until the memory module pops up. 3.

  • Page 28: Removing The Memory Modules - Discrete

    Steps 1. Lift the mylar, and align the notch on the memory module with the tab on the memory-module slot. 2. Slide the memory module firmly into the slot at an angle. 3. Press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstall it.

  • Page 29: Installing The Memory Modules - Discrete

    About this task The figure indicates the location of the memory module and provides a visual representation of the removal procedure. Steps 1. Lift the mylar covering the memory module. 2. Using your finger tips gently pry the retention clips away from the memory module until the memory module pops up. 3.
  • Page 30 Steps 1. Lift the mylar, and align the notch on the memory module with the tab on the memory-module slot. 2. Slide the memory module firmly into the slot at an angle. 3. Press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstall it.

  • Page 31: Pooljuhtketas

    Pooljuhtketas Removing the M.2 2280 solid-state drive - UMA Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the base cover. 3. Disconnect the battery. About this task The figure indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the removal procedure. Steps 1.

  • Page 32: Removing The M.2 2230 Solid-State Drive - Uma

    Steps 1. Align the solid-state drive bracket to accommodate the M.2 2280 solid-state drive. 2. Replace the single (M2x3) screw to secure the solid-state drive module to the palm-rest and keyboard assembly. Next steps 1. Connect the battery. 2. Install the base cover.

  • Page 33: Installing The M.2 2230 Solid-State Drive - Uma

    Steps 1. Remove the single screw (M2x3) that secures the solid-state drive to the palm-rest and keyboard assembly. 2. Slide and remove the solid-state drive module from the solid-state drive slot on the system board. Installing the M.2 2230 solid-state drive - UMA Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.

  • Page 34: Removing The M.2 2280 Solid-State Drive - Ssd-1 - Discrete

    Steps 1. Align the solid-state drive bracket to accommodate the M.2 2230 solid-state drive. 2. Replace the single (M2x3) screw to secure the solid-state drive module to the palm-rest and keyboard assembly. Next steps 1. Connect the battery. 2. Install the base cover.

  • Page 35: Removing The M.2 2230 Solid-State Drive - Ssd-1 - Discrete

    About this task NOTE: Slot 1 supports both M.2 2230 and M.2 2280 SSD. The figure indicates the location of the solid-state drive in slot 1 and provides a visual representation of the alignment procedure to accommodate the M.2 2280 solid-state drive. Steps 1.

  • Page 36: Installing The M.2 2230 Solid-State Drive - Ssd-1 - Discrete

    Steps 1. Remove the single screw (M2x3) that secures the solid-state drive to the palm-rest and keyboard assembly. 2. Slide and remove the solid-state drive module from the solid-state drive slot on the system board. Installing the M.2 2230 solid-state drive - SSD-1 - discrete Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.

  • Page 37: Replacing The Ssd-1 Support Bracket

    Steps 1. Align the solid-state drive bracket to accommodate the M.2 2230 solid-state drive. 2. Replace the single (M2x3) screw to secure the solid-state drive module to the palm-rest and keyboard assembly. Next steps 1. Connect the battery. 2. Install the base cover.

  • Page 38: Removing The M.2 2280 Solid-State Drive - Ssd-2 - Discrete

    Steps 1. Slide and remove the SSD support bracket from the support bracket slot. 2. Depending on the type of solid-state drive (M.2 2230/ M.2 2280), align and insert the SSD support bracket into the support bracket slot. 3. Install the solid-state drive. Removing the M.2 2280 solid-state drive - SSD-2 - discrete Prerequisites...

  • Page 39: Installing The M.2 2280 Solid-State Drive - Ssd-2 - Discrete

    Steps 1. Remove the single screw (M1.6x2) that secures the solid-state drive module support bracket to the palm-rest and keyboard assembly. 2. Lift and remove the solid-state drive support bracket from the solid-state drive slot. 3. Remove the single screw (M2x3) that secures the solid-state drive module to the palm-rest and keyboard assembly. 4.

  • Page 40: Kõlarid

    Steps 1. Align the solid-state drive bracket to accommodate the M.2 2280 solid-state drive. 2. Replace the single screw (M2x3) that secures the solid-state drive module to the palm-rest and keyboard assembly. 3. Place the solid-state drive module bracket. 4. Replace the single (M1.6x2) screw to secure the solid-state drive bracket to the palm-rest and keyboard assembly. Next steps 1.

  • Page 41: Installing The Speakers (In 3-Cell Battery Configuration)

    Steps 1. Locate the speakers on your computer. 2. Disconnect the speaker cable from the connector on the system board. 3. Peel the adhesive tape that secures the speaker cable. 4. Unroute the speaker cables from the retention clips on the computer. 5.

  • Page 42: Removing The Speakers (In 4-Cell Battery Configuration)

    Steps 1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest and keyboard assembly. 2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly. 3. Connect the speaker cable to the system board. Next steps 1.

  • Page 43: Installing The Speakers (In 4-Cell Battery Configuration)

    About this task The figure indicates the location of the speakers in a system configuration with 4-cell battery and provides a visual representation of the removal procedure. Steps 1. Locate the speakers on your computer. 2. Disconnect the speaker cable from the connector on the system board. 3.
  • Page 44 About this task The figure indicates the location of the speakers in a system configuration with 4-cell battery and provides a visual representation of the installation procedure. Steps 1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest and keyboard assembly. 2.

  • Page 45: System Fan

    System fan Removing the system fan - UMA Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the base cover. 3. Remove the battery. About this task The figure indicates the location of the system fan and provides a visual representation of the removal procedure. Steps 1.

  • Page 46: Installing The System Fan - Uma

    5. Slide and lift the system fan off the palm-rest and keyboard assembly. Installing the system fan - UMA Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the location of the system fan and provides a visual representation of the installation procedure. Steps 1.

  • Page 47: Removing The System Fan - Discrete

    Next steps 1. Install the battery. 2. Install the base cover. 3. Follow the procedure in after working inside your computer. Removing the system fan - discrete Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the base cover.

  • Page 48: Installing The System Fan - Discrete

    3. Peel the adhesive tape, and unroute the I/O cable. 4. Remove the two (M2x2) screws that secure the system fan to the palm-rest and keyboard assembly. 5. Slide and lift the system fan off the palm-rest and keyboard assembly. Installing the system fan - discrete Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.

  • Page 49: Jahutusradiaator

    Next steps 1. Install the battery. 2. Install the base cover. 3. Follow the procedure in after working inside your computer. Jahutusradiaator Removing the heat sink - UMA NOTE: The heat sink type in your computer varies depending on the configuration ordered. Prerequisites 1.

  • Page 50: Removing The Heat Sink - Discrete

    About this task The figure indicates the location of the heat sink and provides a visual representation of the installation procedure. Steps 1. Place the heat sink on the system board and align the screw holes on the heat sink with the screw holes on the system board. 2.

  • Page 51: Installing The Heat Sink - Discrete

    Steps 1. In sequential order (as indicated on the heat sink), loosen the seven captive screws that secure the heat sink to the system board. 2. Lift and remove the heat sink off the system board. Installing the heat sink - discrete Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure.

  • Page 52: Nööppatarei

    Steps 1. Place the heat sink on the system board and align the screw holes on the heat sink with the screw holes on the system board. 2. In sequential order (as indicated on the heat sink), tighten the seven captive screws that secure the heat sink to the system board. Next steps 1.

  • Page 53: Installing The Coin-Cell Battery - Uma

    Steps 1. Disconnect the coin-cell battery cable from the I/O board. 2. Peel the coin-cell battery off the palm-rest and keyboard assembly. Installing the coin-cell battery - UMA Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the location of the coin-cell battery and provides a visual representation of the installation procedure.

  • Page 54: Removing The Coin-Cell Battery - Discrete

    Steps 1. Adhere the coin-cell battery to the slot on the palm-rest and keyboard assembly. 2. Route the coin-cell battery cable as illustrated and connect it to the I/O board. Next steps 1. Install the battery. 2. Install the base cover.

  • Page 55: I/O-Paneel

    About this task The figure indicates the location of the coin-cell battery and provides a visual representation of the installation procedure. Steps 1. Adhere the coin-cell battery to the slot on the palm-rest and keyboard assembly. 2. Route the coin-cell battery cable as illustrated and connect it to the I/O board. Next steps 1.

  • Page 56: Installing The I/O Board - Uma

    Steps 1. Locate the I/O board on your computer. 2. Lift the mylar cover. 3. Peel the adhesive tape to unroute the I/O cable. 4. Open the latch, and disconnect the I/O-board cable from the I/O board. 5. Remove the two screws (M2.5x4) and (M2x3) that secure the left display hinge to the computer. 6.
  • Page 57 Steps 1. Place the I/O board on the palm-rest and keyboard assembly. 2. Align the screw holes on the I/O board with the screw holes on the palm-rest and keyboard assembly. 3. Replace the three screws (M2x3) that secure the I/O board to the palm-rest and keyboard assembly. 4.

  • Page 58: Removing The I/O Board - Discrete

    Removing the I/O board - discrete Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the base cover. 3. Remove the battery. 4. Remove the system fan. 5. Remove the coin-cell battery. About this task The figure indicates the location of the I/O board and provides a visual representation of the removal procedure. Steps 1.

  • Page 59: Installing The I/O Board - Discrete

    8. Remove the three screws (M2x3) that secure the I/O board to the palm-rest and keyboard assembly. 9. Lift the I/O board off the palm-rest and keyboard assembly. Installing the I/O board - discrete Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the location of the I/O board and provides a visual representation of the installation procedure.

  • Page 60: Power Button With Fingerprint Reader (Optional)

    Next steps 1. Install the coin-cell battery. 2. Install the system fan. 3. Install the battery. 4. Install the base cover. 5. Follow the procedure in after working inside your computer. Power button with fingerprint reader (optional) Removing the power button and optional fingerprint reader - UMA Prerequisites 1.

  • Page 61: Installing The Power Button With Finger Reader - Uma

    4. Remove the two screws (M2x2.5) that secure the power button with optional fingerprint reader to the palm-rest and keyboard assembly. 5. Lift the power button with optional fingerprint reader, along with the fingerprint reader cable, off the palm-rest and keyboard assembly.

  • Page 62: Removing The Power Button And Optional Fingerprint Reader - Discrete

    Removing the power button and optional fingerprint reader - discrete Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the base cover. 3. Remove the battery. 4. Remove the system fan. 5. Remove the M.2 2280 SSD M.2 2230 SSD.

  • Page 63: Dc-In Port

    About this task The figure indicates the location of the power button with fingerprint reader and provides a visual representation of the installation procedure. Steps 1. Using the alignment post, place the power button with fingerprint reader on the palm-rest and keyboard assembly. 2.

  • Page 64: Installing The Dc-In Port - Uma

    About this task The figure indicates the location of the DC-in and provides a visual representation of the removal procedure. Steps 1. Locate the DC-in port on your computer. 2. Remove the two (M2.5x4) screws, and lift the metal hinge. 3.

  • Page 65: Removing The Dc-In Port - Discrete

    Steps 1. Place the DC-in port on the palm-rest and keyboard assembly. 2. Replace the single screw (M2x3) on the DC-in port using bracket. 3. Connect the DC-in cable to the system board. 4. Adhere the transparent sticker. 5. Lower the metal hinge. 6.

  • Page 66: Installing The Dc-In Port - Discrete

    About this task The figure indicates the location of the DC-in and provides a visual representation of the removal procedure. Steps 1. Locate the DC-in port on your computer. 2. Remove the two (M2.5x4) screws, and lift the metal hinge. 3.

  • Page 67: Puuteplaat

    Steps 1. Place the DC-in port on the palm-rest and keyboard assembly. 2. Replace the single screw (M2x3) on the DC-in port using bracket. 3. Connect the DC-in cable to the system board. 4. Adhere the transparent sticker. 5. Lower the metal hinge. 6.

  • Page 68: Installing The Touchpad - Uma

    3. Remove the battery. 4. Remove the speakers. About this task The figure indicates the location of the touchpad and provides a visual representation of the removal procedure. Steps 1. Peel adhesive tape, and unroute the speaker cable. 2. Remove the three (M1.6x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly. 3.
  • Page 69 About this task The figure indicates the location of the component and provides a visual representation of the installation procedure. Steps 1. Align and place the touchpad into the slot on the palm-rest and keyboard assembly. 2. Replace the two (M2x2) screws along with the bracket to secure the touchpad to the palm-rest and keyboard assembly. 3.

  • Page 70: Removing The Touchpad - Discrete

    Removing the touchpad - discrete Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the base cover. 3. Remove the battery. 4. Remove the speakers. About this task The figure indicates the location of the touchpad and provides a visual representation of the removal procedure. Steps 1.

  • Page 71: Installing The Touchpad - Discrete

    Installing the touchpad - discrete Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the location of the component and provides a visual representation of the installation procedure. Steps 1.

  • Page 72: Ekraanisõlm

    2. Install the battery. 3. Install the base cover. 4. Follow the procedure in after working inside your computer. Ekraanisõlm Removing the display assembly - UMA Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the base cover.
  • Page 73 Steps 1. Locate the display cable and display hinges on your computer. 2. Remove the transparent sticker covering the display cable to the system board. 3. Peel the tape that secures the display cable to the system board. 4. Open the latch, and disconnect the display cable from the system board. Lahtivõtmine ja kokkupanek...

  • Page 74: Installing The Display Assembly - Uma

    5. Remove the two screws (M2.5x4) and (M2x3) that secure the left-display hinge to the system board. 6. Remove the two screws (M2.5x4) that secure the right-display hinge to the system board. 7. Open the display hinges at an angle of 90 degrees. 8.

  • Page 75: Removing The Display Assembly - Discrete

    Steps 1. Place the display assembly on a clean and flat surface. 2. Align and place the palm-rest and keyboard assembly on the display assembly. 3. Using the alignment posts, close the display hinges. 4. Replace the two screws (M2.5x4) and (M2x3) that secure the left-display hinge to the system board. 5.
  • Page 76 Lahtivõtmine ja kokkupanek...
  • Page 77 Lahtivõtmine ja kokkupanek...

  • Page 78: Installing The Display Assembly - Discrete

    Steps 1. Locate the display cable and display hinges on your computer. 2. Remove the transparent sticker covering the display cable to the system board. 3. Peel the tape that secures the display cable to the system board. 4. Open the latch, and disconnect the display cable from the system board. 5.
  • Page 79 Lahtivõtmine ja kokkupanek...

  • Page 80: Emaplaat

    Steps 1. Place the display assembly on a clean and flat surface. 2. Align and place the palm-rest and keyboard assembly on the display assembly. 3. Using the alignment posts, close the display hinges. 4. Replace the two screws (M2.5x4) and (M2x3) that secure the left-display hinge to the system board. 5.
  • Page 81 6. Remove the M.2 2230 solid-state drive. 7. Remove the WLAN card. 8. Remove the system fan. 9. Remove the heat sink. 10. Remove the memory module. 11. Remove the display assembly. About this task The figure indicates the location of the system board and provides a visual representation of the removal procedure. Lahtivõtmine ja kokkupanek...

  • Page 82: Installing The System Board - Uma

    Steps 1. Remove two screws (M2.5x4), and lift the left hinge. 2. Remove the transparent sticker covering the display cable to the system board. 3. Open the latch, and disconnect the display cable from the system board. 4. Remove the transparent sticker covering the DC-in port cable to the system board. 5.
  • Page 83 Lahtivõtmine ja kokkupanek...
  • Page 84 Steps 1. Slide the ports on the system board into the slots on the palm-rest and keyboard assembly and align the screw holes on the system board with the screw holes on the palm-rest and keyboard assembly. 2. Replace the two screws (M2x3) that secure the system board to the palm-rest and keyboard assembly. 3.

  • Page 85: Removing The System Board - Discrete

    Next steps 1. Install the display assembly. 2. Install the memory module. 3. Install the heat sink UMA (based on configuration). 4. Install the system fan. 5. Install the WLAN card. 6. Install the M.2 2230 solid-state drive. 7. Install the M.2 2280 solid-state drive.
  • Page 86 Lahtivõtmine ja kokkupanek...

  • Page 87: Installing The System Board - Discrete

    Steps 1. Remove two screws (M2.5x4), and lift the left hinge. 2. Remove the transparent sticker covering the display cable to the system board. 3. Open the latch, and disconnect the display cable from the system board. 4. Remove the transparent sticker covering the DC-in port cable to the system board. 5.
  • Page 88 Lahtivõtmine ja kokkupanek...
  • Page 89 Steps 1. Slide the ports on the system board into the slots on the palm-rest and keyboard assembly and align the screw holes on the system board with the screw holes on the palm-rest and keyboard assembly. 2. Replace the two screws (M2x3) that secure the system board to the palm-rest and keyboard assembly. 3.

  • Page 90: Randmetoe Ja Klaviatuurisõlm

    2. Install the memory module. 3. Install the heat sink - discrete (based on configuration). 4. Install the system fan. 5. Install the WLAN card. 6. Install the M.2 2230 solid-state drive. 7. Install the M.2 2280 solid-state drive. 8. Install the battery. 9.

  • Page 91: Installing The Palm-Rest And Keyboard Assembly - Uma

    Steps After performing the steps in the pre-requisites, you are left with the palm-rest and keyboard assembly. Installing the palm-rest and keyboard assembly - UMA Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The figure indicates the location of the palm-rest and keyboard assembly and provides a visual representation of the installation procedure.

  • Page 92: Removing The Palm-Rest And Keyboard Assembly - Discrete

    Steps Place the palm-rest and keyboard assembly on a flat surface. Next steps 1. Install the system board. 2. Install the touchpad. 3. Install the DC-in port. 4. Install the power button with fingerprint reader. 5. Install the coin-cell battery. 6.

  • Page 93: Installing The Palm-Rest And Keyboard Assembly - Discrete

    7. Remove the SSD-2. 8. Remove the system fan. 9. Remove the heat sink discrete. 10. Remove the speaker (3-cell battery configuration 4-cell battery configuration). 11. Remove the coin-cell battery. 12. Remove the board. 13. Remove the power button with fingerprint reader.
  • Page 94 Steps Place the palm-rest and keyboard assembly on a flat surface. Next steps 1. Install the system board. 2. Install the touchpad. 3. Install the DC-in port. 4. Install the power button with fingerprint reader. 5. Install the board. 6. Install the coin-cell battery.

  • Page 95: Chapter 4: Tarkvara

    Windowsi draiverite allalaadimine Sammud 1. Lülitage sülearvuti sisse. 2. Avage veebiaadress Dell.com/support. 3. Klõpsake linki Product Support (Tugiteenused), sisestage oma sülearvuti hooldussilt ja klõpsake nuppu Submit (Edasta). MÄRKUS: Kui teil pole hooldussilti, kasutage automaattuvastuse funktsiooni või otsige loendist üles sülearvuti mudel.

  • Page 96: Chapter 5: Süsteemi Seadistus

    Süsteemi seadistus ETTEVAATUST: Kui te ei ole asjatundjast arvutikasutaja, ärge BIOS-i häälestusprogrammi sätteid muutke. Teatud sätted võivad põhjustada arvuti vale toimimise. MÄRKUS: Enne BIOS-i häälestusprogrammi muutmist soovitame BIOS-i häälestusprogrammi aknas oleva teabe üles kirjutada. Kasutage BIOS-i häälestusprogrammi järgmiseks otstarbeks. • Teabe saamiseks arvutisse paigaldatud riistvara kohta, näiteks muutmälu hulga ja kõvaketta suuruse kohta.

  • Page 97: Algkäivituse Järjestus

    Klahvid Navigeerimine Allanool Läheb järgmise välja juurde. Enter Valib valitud väljalt väärtuse (vajaduse korral) või järgib väljal olevat linki. Tühik Laiendab või ahendab ripploendit (selle olemasolul). Tab-klahv Läheb järgmisele fookusalale. Läheb eelmise lehe juurde, kuni kuvatakse põhiekraan. Klahvi Esc vajutamine põhiekraanil kuvab teate, mis palub salvestamata muudatused salvestada ja taaskäivitab süsteemi.

  • Page 98: Algkäivituse Konfiguratsioon

    Table 2. Overview Option Description ○ Battery Level ○ Battery State ○ Health ○ AC Adapter • Processor Information ○ Processor Type ○ Maximum Clock Speed ○ Minimum Clock Speed ○ Current Clock Speed ○ Core Count ○ Processor ID ○...

  • Page 99: Integreeritud Seadmed

    Tabel 3. Algkäivituse konfiguratsioon (jätkub) Valik Kirjeldus Turvaline algkäivitus Turvaline algkäivitus võimaldab süsteemil algkäivituda ainult valideeritud algkäivitustarkvaraga. Enable Secure Boot (Luba turvaline algkäivitus) – vaikimisi on see valik keelatud. MÄRKUS: Valiku Enable Secure Boot (Luba turvaline algkäivitus) lubamiseks peab süsteem olema UEFI algkäivitusrežiimis.

  • Page 100: Salvestusruum

    Salvestusruum Tabel 5. Salvestusruumi valikud Valik Kirjeldus SATA kasutamine Võimaldab konfigureerida sisemise SATA kõvakettakontrolleri töörežiimi. Valikud on järgmised. • Disabled (Keelatud) • AHCI • RAID On (RAID sees) – valik RAID sees on vaikimisi lubatud. MÄRKUS: SATA on konfigureeritud RAID-režiimi toetama. Mäluliides Võimaldab lubada või keelata mitmesugused sisemisi draive.

  • Page 101: Toitehaldus

    Tabel 7. Ühendus (jätkub) Valik Kirjeldus Valikud on järgmised. • Disabled (Keelatud) • Enabled (Lubatud) • Enabled with PXE (Lubatud PXE-ga): see valik on vaikimisi lubatud. Wireless Device Enable (Juhtmevaba seadme lubamine) Võimaldab lubada või keelata integreeritud raadiovõrguseadised. Valikud on järgmised. •...

  • Page 102: Turve

    Võimaldab ühendada Delli USB-C doki süsteemi äratamiseks ooterežiimist. C Dock Vaikimisi on valik Wake on Dell USB-C Dock (Ärata Delli USB-C-doki ühendamisel) lubatud. MÄRKUS: See funktsioon toimib ainult siis, kui on ühendatud vahelduvvoolu-toiteadapter. Kui vahelduvvoolu-toiteadapter eemaldatakse enne ooterežiimi sisenemist, eemaldab BIOS akutoite säästmiseks toite kõigist USB-pesadest.

  • Page 103: Parool

    Tabel 9. Turve (jätkub) Valik Kirjeldus • Attestation Enable (Atesteerimise lubamine) – see valik on vaikimisi lubatud. • Key Storage Enable (Võtmesalve lubamine) – see valik on vaikimisi lubatud. • SHA-256 – see valik on vaikimisi lubatud. • Clear (Eemalda) •...
  • Page 104 Tabel 10. Turve (jätkub) Valik Kirjeldus MÄRKUS: Administraatori parooli kustutamine kustutab süsteemi parooli (kui see on määratud). Administraatori parooli saab kasutada ka kõvakettaparoolide kustutamiseks. Seetõttu ei saa te administraatori parooli määrata, kui süsteemi või kõvaketta parool on määratud. Seega tuleb administraatori parool määrata esimesena, kui seda on vaja kasutada koos süsteemi parooli ja/või kõvaketta parooliga.

  • Page 105: Värskendamine Ja Taastamine

    BIOSConnect – vaikimisi on see valik lubatud. Dell Auto OS Recovery Opsüsteemi automaatse taastamise läve häälestusvalikud võimaldavad juhtida SupportAssist System Threshold (Delli Resolution Console’i ja Dell OS Recovery Tooli. operatsioonisüsteemi Valikud on järgmised. automaatse taastamise lävi) •...

  • Page 106: Klaviatuur

    Tabel 12. Süsteemihaldus (jätkub) Valik Kirjeldus Valikud on järgmised. • Disabled (Keelatud) – see valik on vaikimisi lubatud. • Every Day (Iga päev) • Weekdays (Tööpäevadel) • Select Days (Valitud päevadel) Klaviatuur Tabel 13. Klaviatuur Valik Kirjeldus Numbriluku lubamine Võimaldab süsteemi algkäivituse ajal lubada või keelata numbriluku. Enable Numlock (Luba numbrilukk) See valik on vaikimisi lubatud.

  • Page 107: Eelkäivituse Käitumine

    Tabel 13. Klaviatuur (jätkub) Valik Kirjeldus • 5 sekundit • 10 seconds (10 sekundit) – see valik on vaikimisi lubatud. • 15 sekundit • 30 sekundit • 1 minut • 5 minutit • 15 minutit • Never (Mitte kunagi) MÄRKUS: Kui valitud on Never (Mitte kunagi), jääb taustvalgustus alati sisse, kui süsteem on akutoitel.

  • Page 108: Virtualiseerimise Tugi

    Virtualiseerimise tugi Tabel 15. Virtualiseerimise tugi Valik Kirjeldus Intel Virtualization See valik määrab, kas süsteem võib töötada virtuaalarvuti ekraanil (VMM). Vaikimisi on valik Enable Technology Intel Virtualization Technology (VT) (Luba Inteli virtualiseerimistehnoloogia (VT)) lubatud. VT for Direct I/O See valik määrab, kas süsteem saab rakendada virtualiseerimistehnoloogiat otsese S/V jaoks; Inteli (Virtualiseerimistehnoloogia meetod mälu vastenduse S/V jaoks.

  • Page 109: Süsteemi Logid

    BitLockeri koos TPM-iga lubamine või keelamine Windowsis. Sammud 1. Taaskäivitage arvuti. 2. Avage veebiaadress Dell.com/support. • Sisestage Service Tag (Seerianumber) või Express Service Code (Kiirteeninduskood) ja klõpsake nuppu Submit (Esita). • Klõpsake käsku Detect Product (Tuvasta toode) ja järgige ekraanil kuvatavaid juhiseid.

  • Page 110: Baasvahetussüsteemi (Bios-I) Värskendamine Süsteemides, Millel On Lubatud Bitlocker

    Most Dell systems built after 2012 have this capability and you can confirm by booting your system to the F12 One-Time Boot Menu to see if BIOS UPDATE is listed as a boot option for your system. If the option is listed, then the BIOS supports this BIOS update option.
  • Page 111 The Flash BIOS opens. 4. Click Flash from file. 5. Select external USB device. Süsteemi seadistus...
  • Page 112 6. Once the file is selected, double-click the flash target file and click Submit. 7. Click Update BIOS for the system to reboot and flash the BIOS. Süsteemi seadistus...

  • Page 113: Süsteemi Ja Seadistuse Parool

    8. Once complete, the system reboots and the BIOS update process is completed. Süsteemi ja seadistuse parool Tabel 18. Süsteemi ja seadistuse parool Parooli tüüp Kirjeldus Süsteemi parool Parool, mille peab sisestama, et süsteemi sisse logida. Seadistusparool Parool, mille peab sisestama, et näha ja muuta arvuti BIOS-i sätteid. Oma arvuti kaitsmiseks saate määrata süsteemi- ja seadistusparooli.

  • Page 114: Olemasoleva Süsteemi Seadistuse Parooli Kustutamine Või Muutmine

    2. Valige suvand System/Admin Password (Süsteemi/administraatori parool) ja looge parool väljal Enter the new password (Sisesta uus parool). Süsteemi parooli määramiseks lähtuge järgmistest põhimõtetest. • Paroolis võib olla kuni 32 märki. • Parool võib sisaldada numbreid 0–9. • Sobivad ainult väiketähed, suurtähed pole lubatud. •...

  • Page 115: Chapter 6: Tõrkeotsing

    Tõrkeotsing Teemad: • Built-in self-test (BIST) • Emaplaadi sisseehitatud enesetest (M-BIST) • Ekraanipaneeli toitesiini sisseehitatud enesetest (L-BIST) • Ekraanipaneeli sisseehitatud enesetest (LCD-BIST) • Outcome • SupportAssisti tugidiagnostika • SupportAssisti tugidiagnostika käitamine • Süsteemi diagnostika märgutuled • Operatsioonisüsteemi eemaldamine • BIOS-i välkmälu ülekirjutamine •...

  • Page 116: Emaplaadi Sisseehitatud Enesetest (M-Bist)

    Emaplaadi sisseehitatud enesetest (M-BIST) See ülesanne Sammud 1. M-BIST-i käivitamiseks vajutage pikalt korraga klahvi M ja toitenuppu. 2. Emaplaadi rikke korral süttib aku oleku tuli merevaigukollaselt. 3. Probleemi lahendamiseks vahetage emaplaat välja. MÄRKUS: Kui emaplaat töötab korralikult, siis aku oleku LED-tuli ei sütti. Ekraanipaneeli toitesiini sisseehitatud enesetest (L-BIST) See ülesanne Järgmised sammud...

  • Page 117: Ekraanipaneeli Toitesiini Sisseehitatud Enesetest (L-Bist)

    Ekraanipaneeli toitesiini sisseehitatud enesetest (L-BIST) See ülesanne Järgmised sammud L-BIST (LCD toitesiini test) on ühe LED-veakoodi diagnostika täiendus, mis käivitatakse POST-i käigus automaatselt. L-BIST isoleerib, kui LCD saab toidet emaplaadilt. L-BIST kontrollib, kas emaplaat varustab LCD-d toitega, tehes LCD toitesiini testi. Kui LCD-l puudub toitevarustus, vilgub aku oleku LED-tuli [2,8] LED-veakoodi.

  • Page 118: Outcome

    3. Ekraanipaneel hakkab kuvama ühtlast värvi või vaheldumisi eri värve. MÄRKUS: Värvide järjestus võib olenevalt erinevatest ekraanipaneeli tootjatest erineda. Kasutaja peab üksnes veenduma, et värvid kuvataks õigesti ilma moonutuste või graafiliste anomaaliateta. 4. Arvuti taaskäivitub pärast viimase ühtlase värvi kuvamist. Outcome About this task The following table shows the outcome of running different types of BIST.
  • Page 119 Väljas • Toiteadapter on ühendatud ja aku on täielikult laetud. • Arvuti töötab akutoitel ja aku laetuse tase on üle 5%. • Arvuti on unerežiimis, talveunerežiimis või välja lülitatud. Rikkele viitamiseks vilgub toite ja aku oleku märgutuli merekollaselt koos piiksatuskoodidega. Näiteks vilgub toite ja aku oleku märgutuli merekollaselt kaks korda, millele järgneb paus ja seejärel vilgub valgelt kolm korda, millele järgneb paus.

  • Page 120: Operatsioonisüsteemi Eemaldamine

    Backup media and recovery options It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows. Dell proposes multiple options for recovering Windows operating system on your Dell personal computer. For more information, see...

  • Page 121: Wi-Fi-Toitetsükkel

    Wi-Fi-toitetsükkel See ülesanne Kui teie arvutil puudub Wi-Fi-ühenduse probleemide tõttu ligipääs internetile, võib teha Wi-Fi-toitetsükli protseduuri. Järgmine protseduur annab juhised Wi-Fi-toitetsükli tegemiseks. MÄRKUS: Mõni internetiteenuse pakkuja ehk ISP (Internet Service Provider) pakub kombineeritud modemi/ruuteri seadet. Sammud 1. Lülitage arvuti sisse. 2.

  • Page 122: Chapter 7: Abi Saamine

    MÄRKUS: Kui teil pole aktiivset Interneti-ühendust, võite leida kontaktteavet oma ostuarvelt, saatelehelt, tšekilt või Delli tootekataloogist. See ülesanne Dell pakub mitut veebi- ja telefonipõhist toe- ning teenindusvõimalust. Saadavus võib riigi ja toote järgi erineda ning mõned teenused ei pruugi olla teie piirkonnas saadaval. Delliga müügi, tehnilise toe või klienditeeninduse küsimustes ühenduse võtmiseks: Sammud 1.

Table of Contents
