PulseWorx PIM-E Installation Manual And Owner's Manual

FUNCTION
The PIM-E is a special Powerline
Interface Module containing a
built-in M1XSP Serial Port chip.
This all-in-one device makes it
easy to permanently connect the
ELK M1 Control to a UPB
network. Simply locate
convenient unused AC Power
Outlet, connect a cable from the
M1 data bus to the four (4) terminals on the PIM-E, and
perform an M1 data bus enrollment.
capability of the M1 data bus makes it possible to locate the
PIM-E virtually anywhere, without a lot of complex or ugly
cabling or connections. UPB utilizes the AC wiring circuit for
transmission, without new or additional wiring, and without
radio frequency signals.
with UPStart configuration software.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If the product is exposed to water
or other liquid, turn off the circuit breaker and unplug the
product immediately.
3. Never use products that have been dropped or damaged.
4. Do not use this product outdoors.
5. Do not use this product for other than its intended
purpose.
6. To avoid any risk of fire, burns, personal injury or electric
shock, install this product out of the reach of small
children.
7. Do not cover product with any material when in use.
8. This product uses grounded plugs and sockets to reduce risk
of electric shock. These plugs and sockets fit only one way.
If they do not fit, consult an electrician.
SAVE THESE INSTRUCTIONS.
INSTALLATION
This device is designed for indoor use only. Follow these steps
to connect the PIM-E module to the ELK M1 Control.

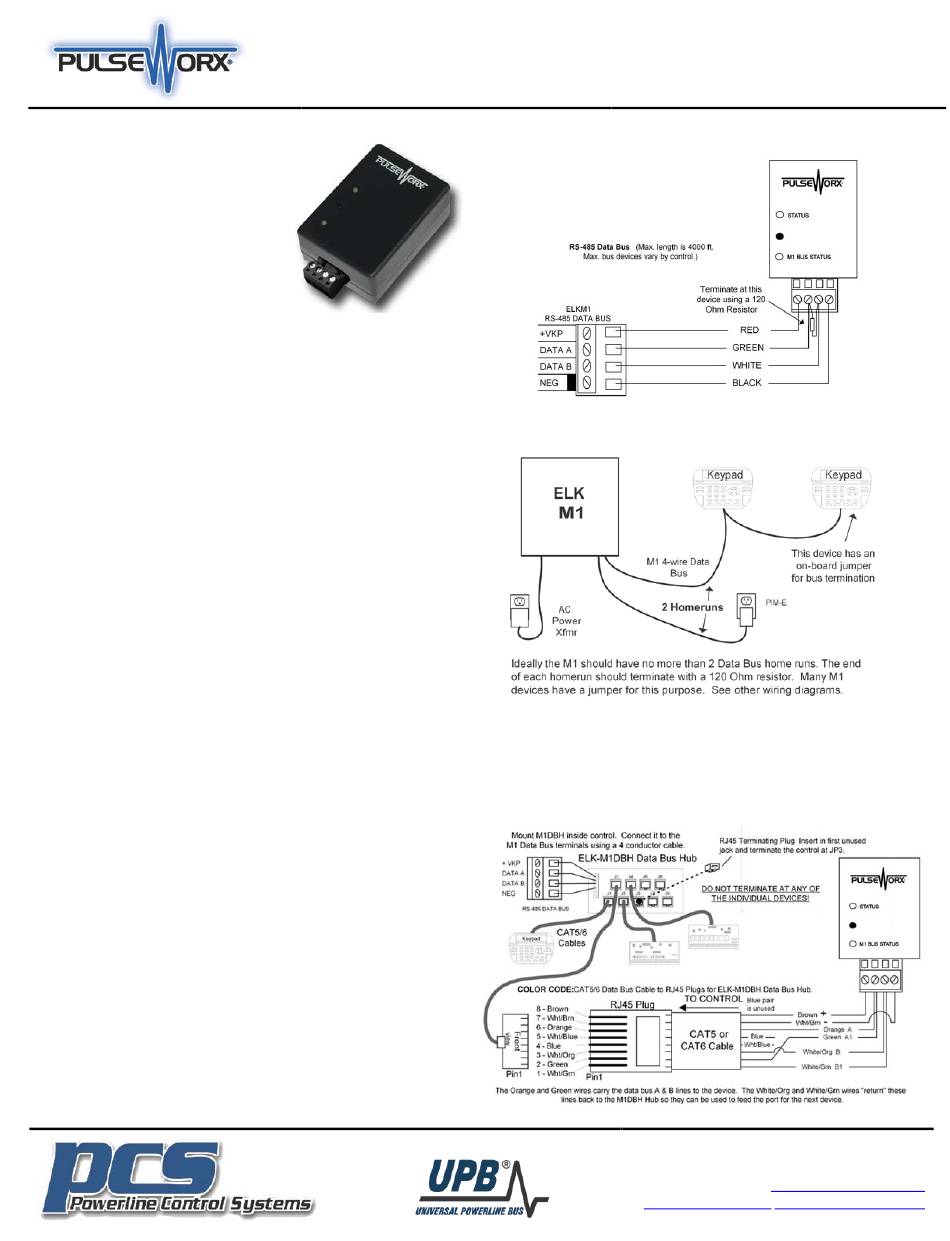

1. Connect a four-conductor cable from the M1 RS485 Data
bus to the four (4) terminals on the bottom of the PIM-E.
Observe polarity and color code from diagram.
2. Plug PIM-E into any grounded wall outlet. The Status LED
should start blinking and then stay solid blue.
Model: PIM-E
Powerline Interface Module
ELKM1 Data Bus
a
The long distance
Note: The PIM-E will not work
©2010 Powerline Control Systems, Inc. All Rights Reserved.
Connecting to M1 Control using a single homerun cable.
M1 application using two (2) data bus homerun cables
Connecting devices on an ELK-M1DBH Data Bus Hub
An ELK-M1DBH Data Bus Hub (Optional) Can be used to connect data bus
devices using Cat5/6 cables. Devices appear to be in daisy chain because 1
wire pair returns the data bus back where it's used to feed next device OR
gets terminated by special RJ45 Plug. Only 6 of the 8 total conductors are
used.
