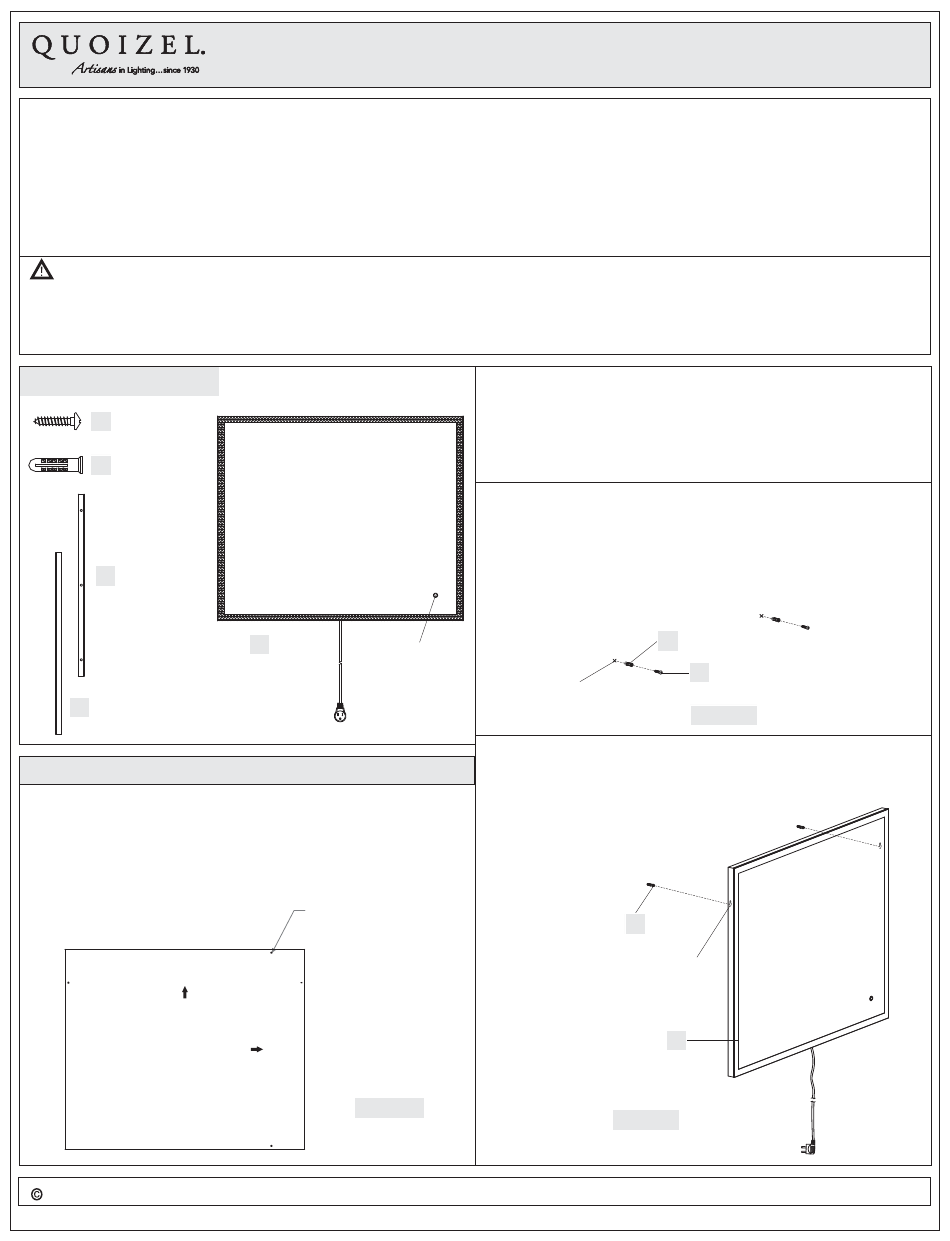

Quoizel QR3703 Installation Manual

Please go to www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses,
drill bit and drill.
Light Source: Integrated LED 30W
Estimated Assembly Time:
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Missing Parts? Contact your original place of
purchase.
Note: This mirror can be mounted over an electrical outlet box or on the wall and plugged into an outlet.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Package Contents
Screw
A
x 5
Wall Anchor
B
x 5
Cord Cover
C Backplate
x 1
Cord Cover
D
x 2
SEPARATE MIRROR AND BACKPLATE
Step 1A - Identify Locations for Wall Anchors
A. The template is provided to assist you in mounting the mirror. The
template is a full size drawing of your mirror and includes the wall
anchor mounting locations that can easily be transferred to the wall,
or use the mirror backplate.
TEMPLATE
2018 QuoizelInc.
for product cleaning tips. Go to the
30-45 minutes
Mirror
E
x 1
Touch Switch
Mark Wall Anchor
Locations On The Wall
At Arrow Locations
Figure 1A
visit us on-line at www.quoizel.com
Installation Guide #IS-QR3703
For Style QR3703
Care + Maintenance selection.
(Step 1A Continued)
Place the template or the mirror back plate on the wall in the location
selected for the mirror. Make sure the template or mirror back plate
is level and in the correct position. Secure the template to the wall
then mark the locations of the 4 wall anchors as indicated on the
template. Remove the template from the wall.
Step 2A - Installing 4 Wall Anchors and Screws
A. Using a 1/8" drill bit, drill holes at each (2) locations marked on the
wall surface.
B. Insert Wall Anchors (B) into drilled holes completely.
C. Thread Screws (A) into Wall Anchors (B) and leave approximately
3mm extending from wall surface.
Mark
-
STEP 3A Final Mirror Assembly
A. With the help of another person place the
keyholes on the back of the mirror onto
the Screws (A). Making sure each hole is
securely hung onto the Screws (A)
before letting go of the mirror backplate.
1of3
B
A
Figure 2A
A
Keyhole
E
Figure 3A
ReleasedDate:2018-04-18
marking pen, 1/ " 8
