2,4GHz radio
Intellitec 1/10 models comes with this radio. The radio is easy to handle and has several functions to trim the model to
suite your driving style.
Bind radio with receiver
This step is already done from the factory and does not need to be done before driving.
If you for some reason need to re-bind the radio with receiver, follow these steps:
A) Mount batteries in the radio and have it powered off.
B) Insert the matching lines to the channel BIND/CH3 port of the receiver.
C) Connect the receiver battery to VCC port of the receiver and two LED are flashing which
means the receiver is put in binding mode.
D) Press the binding button on the radio and power it up.
E) Note the LED on receiver. If the LED have stopped flashing within 5 seconds
the binding was successful.
F) Remove the matching line from receiver.
G) Connect a servo to the receiver and test the function.
H) If process fails - repeat step A-F.
Trouble shooting
Please read this section if you are having trouble with your model.
Problem
The model does not move.
The model does not follow your
driving input.
The front and rear wheels rotate in
opposing directions.

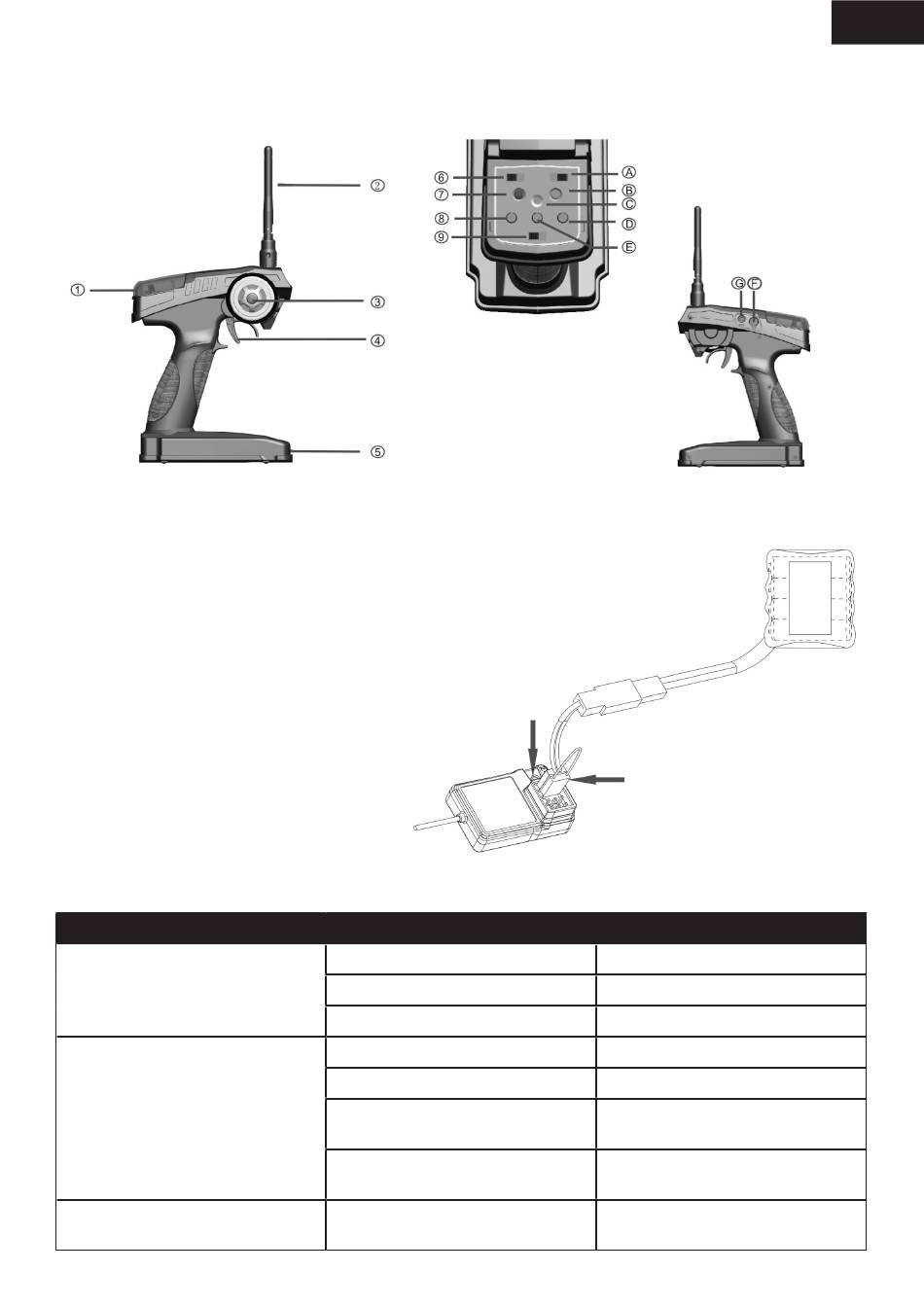

1. Control box
2. 2,4GHz antenna
3. Steering wheel
4. Throttle trigger
5. Battery box
Cause
Radio is turned off.
Battery is not pluged in.
Battery is not charged.
Radio is turned off.
Reverse switches are set incorrectly.
The radio end-point-adjustment is
set incorrectly.
Weak batteries in model or radio.
The differential are placed incorrect.
6. Steering reverse
7. Power LED
8. Steering trim
9. Power switch
A. Throttle reverse
B. Power check
C. Bind
D. Dual Rate
E. Throttle trim
LED
Matching line
Receiver
Solution
Turn on both radio and receiver.
Check batteries.
Charge the battery.
Turn on both radio and receiver.
Check the reverse switches.
Check the Dual Rate switches.
Replace batteries and charge main
battery.
Place the differential the correct way.
EN
F. Charging input
G. DSC for simulator
Battery
