ORIOLUS BA-10 (OAK) Quick Manual

Portable Headphone Amplifier
BA-10 ( OAK )
Quick Guide
■INCLUDED ITEMS
・BA-10 ・AC adapter

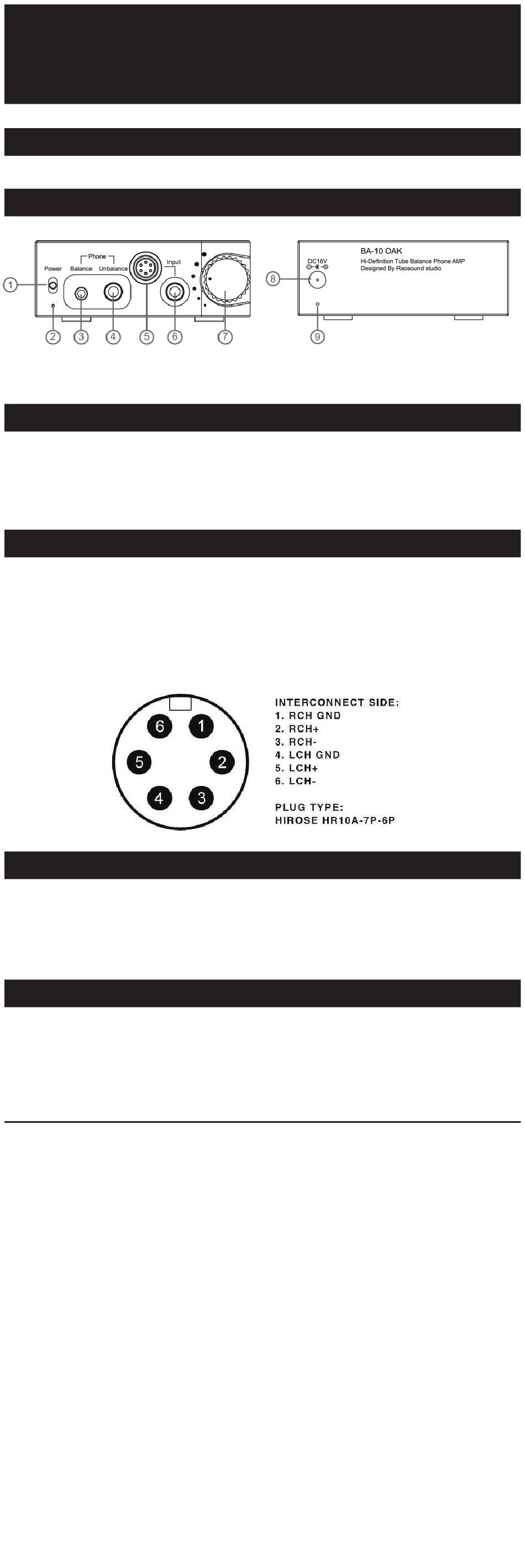

■PARTS AND CONTROLS
①Power switch
④Normal 3.5mm headphone jack
⑦Volume knob
■CHARGING THE UNIT
① Turn off the unit.
(The battery charges while the unit is on. )
② Connect the 16v 1A~ AC adapter.
Charge indicator lights up in red.
Charging is completed in about 4 hours (The time is up to the AC adapter). The indicator turns off
when the battery is completely charged.
■CONNECT THE AUDIO DEVICE
Normal connection:
Connect the unit to the device by the Normal 3.5mm line-in jack on the front panel.
(The analog cable is an optional accessory.)
Balanced connection:
Connect the unit to the device by the Balanced line-in Jack(HIROSE) on the front panel.
(The unit is using the special HIROSE 6pins mini XLR type jack for the balanced mode. And the HIROSE
cable is an optional accessory.)
■Listening to music with the headphones
Normal connection:
Connect the headphones to the unit by the Normal 3.5mm headphone jack on the front panel.
Balanced connection:
Connect the headphones to the unit by the 2.5 mm TRRS balanced jack (A&K type, from tip R-/R+ /L+ L-)
on the front panel.
■Specifications
Supported impedance: 8~300Ω
S/N ratio: 110dB
Maximum output: 250mW+250mW (32Ω)
THD+N: <0.05%
Battery: built-in lithium polymer rechargeable battery, approx 7hr battery life
Charging time: approx 4 hours
Size and weight: W74 x H26 x D135mm, 350g
Oriolus Japan
www.en.oriolus.jp
・Silicone Belts
Front Side
②Power indicator
⑤Balanced line-in Jack(HIROSE)
⑧Power charge port
Cyras Co., Ltd.
Zipcode: 110-0016
Address: 5F, Nichiei-intec Okachimachi No.2 BLDG,
3-42-5, Taito, Taito-District, Tokyo, Japan
Tel: +81368699631
EMAIL: info@oriolus.jp
Oriolus
Rear Side
③2.5mm TRRS balanced jack
⑥Normal 3.5mm line-in jack
⑨Power charge indicator
