Summary of Contents for Juntek DPM8600
- Page 2 DPM8600 Series Programmable Digital DC Power Supply Wireless Controller Quick Guide Rev1.0 May 2020...
-
Page 3: Guaranty And Declaration
Copyright Hangzhou Junce Instruments Co., Ltd. all right reserved. Trademark Information JUNTEK is a registered trademark of Hangzhou Junce Instruments Co., Ltd. Notices JUNTEK products are covered by P.R.C. patents, issued and pending. This document replaces all previously published documentation. -
Page 4: Safety Requirement
Do not touch exposed junctions and components when the unit is powered on. Do Not Operate With Suspected Failures. If you suspect that any damage may occur to the instrument, have it inspected by JUNTEK authorized personnel before further operations. Any maintenance,... - Page 5 Do not expose the battery (if available) to high temperature or fire. Keep it out of the reach of children. Improper change of a battery (lithium battery) may cause an explosion. Use the JUNTEK specified battery only. Handle with Caution.
-
Page 6: Notices
Hangzhou Junce Instruments Co., Ltd. Notices 1. Make sure that the input power adapter is correct. This instrument adopts DC5V power adapter. 2. The shell of the instrument is fragile and easy to corrode. Please don't hit or close to chemicals to avoid corrosion. 3. -
Page 7: Table Of Contents
Hangzhou Junce Instruments Co., Ltd. Contents Guaranty and Declaration.................I Safety Requirement..................Ⅱ Safety Regulations and Operation............Ⅱ Notices.....................Ⅳ Inspection......................2 Chapter 1 DPM8600 Series Products Overview ..........3 Specifications.....................4 Panel Introduction..................4 Operation Instrcutions................8 Button Lock Function................14 Chapter 2 Wireless Controller Instructions.............14 Product Specification................14 Module Description...................15 Display Interface Description..............16... -
Page 8: Inspection
Hangzhou Junce Instruments Co., Ltd. Inspection When you get a new DPM8600 series programmable digital power supply, it is recommended to inspect the instrument according to the following steps. Inspect the Packaging If the package has been damaged, do not dispose the damaged package or cushioning materials until the shipment has been checked for completeness and has passed both electrical and mechanical tests. -
Page 9: Chapter 1 Dpm8600 Series Products Overview
Hangzhou Junce Instruments Co., Ltd. Chapter 1 DPM8600 Series Products Overview DPM8600 series power supply is a type of affordable programmable DC power supply with high performance. With superb performance specifications, pure and reliable output, and clear user interface, equipped with RS485... -
Page 10: Specifications

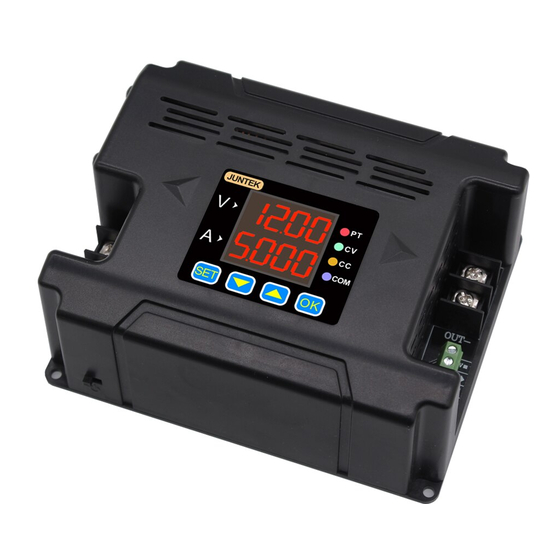

Hangzhou Junce Instruments Co., Ltd. Specifications DPM8605 DPM8608 DPM8616 DPM8624 DPM8650 Model (DPM8605 (DPM8608 (DPM8616 (DPM8624 (DPM8650 -485) -485) -485) -485) -485) Input voltage 10-75V 10-75V 10-75V 10-75V 10-75V Output voltage 0-60V 0-60V 0-60V 0-60V 0-60V Output current 0-5A 0-8A 0-16A 0-24A... - Page 11 CC: Constant current indicator. The CC indicator is on, indicating constant current output. COM: Communication indicator. When there is a command input, the COM indicator will be on, indicating normal communication. 2. Module Introduction Figure 2-1 Illustration of DPM8600 series power supply (DPM8605 / DPM8608)
- Page 12 Description Switch Indicator ① ⑥ Negative input terminal Positive output terminal ② ⑦ Positive input terminal Negative output terminal ③ ⑧ Communication Interface ④ ⑨ Function buttons ⑤ ⑩ Figure 2-2 Illustration of DPM8600 series power supply (DPM8616 / DPM8624)
- Page 13 Hangzhou Junce Instruments Co., Ltd. Table 2-2 DPM8600 series power supply description(DPM8616 / DPM8624) Item Description Item Description Switch Indicator ① ⑥ Negative input terminal Positive output terminal ② ⑦ Positive input terminal Negative output terminal ③ ⑧ Communication Interface ④...
-
Page 14: Operation Instrcutions
Hangzhou Junce Instruments Co., Ltd. 3. Display Introduction Table 2-4 Display description of DPM8600 series power supply Display content Display content Display Display introduction introduction Denote the voltage value Fast discharge ON Denote the current value Voltage and current upper... - Page 15 Hangzhou Junce Instruments Co., Ltd. 1. Connect the input and output correctly, and reverse connection is strictly prohibited. Ensure that the input voltage is within the required range. The input voltage must be 0.5V or more above the output voltage. Note: Input voltage range: 10V~75V;...
- Page 16 Hangzhou Junce Instruments Co., Ltd. 2. Store and Load Function Operating Instructions Press the up or down button on the voltage and current display interface to enter saving and loading functions, as well as the temperature display and calibrating functions. The specific operations are as follows: Pres Press...
- Page 17 Hangzhou Junce Instruments Co., Ltd. Press to enter the calibrating Press to observe the function, and then press the current temperature of button to calibrate the displayed the power device. data. For calibrating details, please refer to the function introduction below.
- Page 18 Hangzhou Junce Instruments Co., Ltd. The specific operating are following: Press and hold the button Boot default Press the button to enter the voltage and current interface shortly to enter the upper and lower limits saving factory reset interface. interface. Use the Use the button to change the sub-options.
- Page 19 Hangzhou Junce Instruments Co., Ltd. Press the button shortly to enter Press the button shortly to the communication address selection enter the baud rate selection interface. There are a total of 99 interface. There are 7 groups of communication addresses from 01 to baud rates in Kbps.
-
Page 20: Button Lock Function
Hangzhou Junce Instruments Co., Ltd. set voltage and current value will be directly turned on after the power is turned on without any operation. Button Lock Function Pressing and holding the OK button can lock the buttons. When the button is locked, press and hold the OK button again to cancel the button lock. -
Page 21: Module Description
Hangzhou Junce Instruments Co., Ltd. Module description Figure 1-1 Wireless controller panel structure description Figure 1-2 Wireless controller interface description... -
Page 22: Display Interface Description
Hangzhou Junce Instruments Co., Ltd. Display Interface Description Label Description Label Description Product model Signal indication ○ ○ Button lock Addresses 01-99 ○ ○ Channels 01-30 Battery capacity ○ ○ Output voltage Output current ○ ○ Output power Voltage setting ○... - Page 23 Hangzhou Junce Instruments Co., Ltd. value. Press button A, the cursor appears at the current setting position, rotate the knob to change the value, press the left and right buttons to change the step value. Press OK to turn the output on or off. The voltage and current setting display interfaces are as follows: Current setting status Boot default connection status...
- Page 24 Hangzhou Junce Instruments Co., Ltd. Press the button to Press the button and enter the function, and the cursor will appear at change the parameters position through the left and right function option box. buttons or the knob. 3.Quick Load The data of M1, M2, M3, M4 storage location can be loaded by pressing M1, M2, M3, M4 .
-
Page 25: Function Instruction
Hangzhou Junce Instruments Co., Ltd. When adjust voltage and current to reach When the upper and lower limits are the same value,it is the upper limit, is displayed , the displayed as lower limit is displayed as Function Instruction Number Function Function Instruction... -
Page 26: Chapter 3 More Product Information
Chapter 3 More Product Information For more information about this instrument, please refer to the relevant manual by logging in to the official website of JUNTEK (www.junteks.com) to download them. "DPM8600 Host Computer Software" provides the host computer software related to this product.
