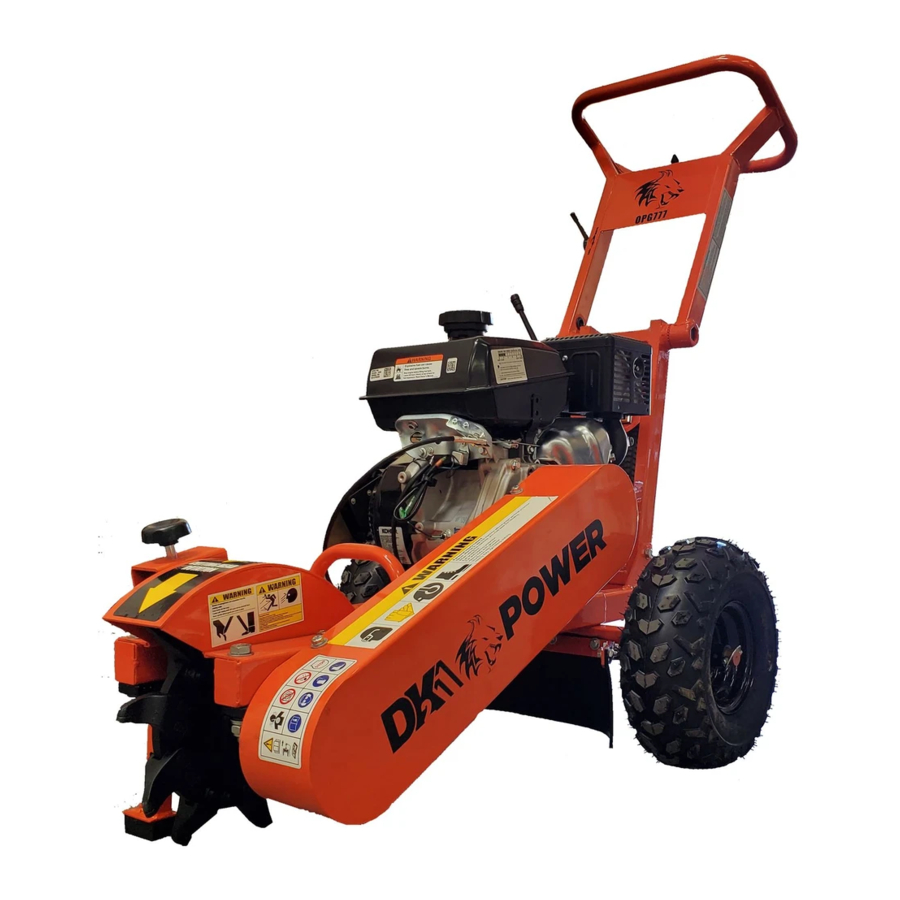

COMMERCIAL STUMP GRINDER
STUMP GRINDER ASSEMBLY GUIDE
MODEL: OPG777
3.5 CUT 14HP STUMP GRINDER
6245 Industrial Parkway
Whitehouse, OH 43571
CONTACT US
DK2 USA EAST
3.5 WIDE CUT
TOWABLE
14HP KOHLER ENGINE
1
REV 2 – 7-14-20
Advertisement
Table of Contents
Related Manuals for DK2 Power OPG777
Summary of Contents for DK2 Power OPG777
- Page 1 STUMP GRINDER ASSEMBLY GUIDE MODEL: OPG777 3.5 CUT 14HP STUMP GRINDER DETAIL K2 INC. DK2 POWER USA DETAIL K2, INC. DK2 USA EAST 4301 S Valley View Blvd STE 10-11 1080 Clay Avenue Unit 2 6245 Industrial Parkway Las Vegas, NV 89103...
- Page 2 Open and unpack all items. Leave lots of working space. Inspect all parts. NOTE: UPON INSPECTION OF PARTS IF YOU FIND ANY MISSING PARTS PLEASE CALL DK2 POWER AT 702-331-5353 OR CONTACT US VIA OUR WEBSITE WWW.DK2POWER.COM DO NOT RETURN TO THE STORE...
- Page 3 STEP 2: INSTALL AXLE AND WHEELS 1. Grease or OIL the axles (grease not included). 2. Pin ONLY the axle to allow the wheel to spin freely. PIN WHEEL AND AXLE FOR WHEEL BRAKE DURING GRINDING ONLY. 3. During transport in trailer or pickup PIN BOTH WHEELS for dual wheel brakes.
- Page 4 STEP 3: HANDLE MOUNTING 1. Mount the handle tower assembly with the bolts provided. 2. Connect the 2 wire connectors.
- Page 5 STEP 4: SECURE THE THROTTLE CABLE 1. SECURE THE THROTTLE CABLE WITH THE LOOP WIRE CLAMP PROVIDED ON THE CHASSIS.
- Page 6 STEP 5: TOW BAR ASSEMBLY 1. INSTALL THE TOW BAR OFF ROAD ONLY...
- Page 7 STEP 7: READ THE KOHLER ENGINE MANUAL SUPPLIED WITH YOUR UNIT FOR FULL ENGINE OPERATION, SAFETY, AND MAINTENANCE. Air Filter – Summer and Winter Positions GAS – USE MID GRADE OR HIGHER CHOKE – LEFT IS ON / RIGHT IS OFF (RUN POSITION) GAS ON/OFF SWITCH –...
- Page 8 PARTS DIAGRAM...
- Page 9 PART NUMBERS engine 36 engine pulley M10 locknut 37 key 010 lockwasher 38 engine spacer washer 01O*02O*1.5 39 bolt M8*65 Bolt M8*25 40 wheel axle 8 lockwasher 41 bolt M10*125 washer 08*016*1.5 42 leather protect sheet protection sheet plate 43 leather protect sheet fixed plate protection sheet 44 M8 locknut 10 knob o50...
- Page 10 OPERATION – BEFORE TURNING KEY AND PULL STARTING ENGINE CLEAR AREA OF ALL PEOPLE AND PROPERTY THAT COULD BE DAMAGED. THINK SAFETY. CHIPS ARE FLYING PROJECTILES AND CAN CAUSE INJURY. WEAR SAFETY GLASSES, HEARING PROTECTION, AND GLOVES DO NOT WEAR LOOSE FITTING CLOTHES THAT COULD GET STUCK IN THE MACHINE MOVING PARTS, ONLY CHIP WOOD, CHILDREN SHOULD NOT RUN THIS EQUIPMENT, STAY ALERT OF YOUR SURROUNDING AND PERSONS THAT COULD APEAR IN THE CHIP PATH WHILE YOU ARE WORKING.
- Page 11 TROUBLE SHOOTING GUIDE QUICK START SETUP • ADD 10W30 OIL TO ENGINE • ADD GAS • RAISE UP KICK STAND • TURN KEY ON • TURN GAS ON • HALF THROTTLE (CHOKE OPTIONAL FOR COLD STARTS) • TIP THE UNIT BACK WITH THE CUTTERS OFF THE GROUND •...
- Page 12 CHECK YOUR 4 ENGINE MOUNTING BOLTS, LOOSE ENGINE BOLTS WILL CREATE LOOSE BELT TENSION. REMOVE 4 COVER BOLTS AND REMOVE BELT COVER LOOSEN 4 ENGINE MOUNTING BOLTS ADJUST BOLTS TO MOVE THE ENGINE - CHANGING TENSION ON BELTS. USE DK2 POWER OEM REPLACEMENT BELTS FOR TOP PERFORMANCE...
- Page 13 LIFT THE KICK STAND WHEN GRINDING • CHANGE YOUR FIRST OIL AFTER 5 HOURS, THEN PER THE ENGINE MANUAL • USE DK2 POWER OEM REPLACEMENT PARTS FOR TOP PERFORMANCE • DON’T GRIND SAND, ROCKS OR DIRT, IT WILL DULL OR DAMAGE YOUR TEETH •...
- Page 14 If within three (3) years from the original date of purchase this OPG777 fails due to defect in material or workmanship, Detail K2 will repair, replace, or supply any covered defective part at our option. DK2 POWER OPG777 is 3-years parts only warranty no labor.
- Page 15 STEP 6: QUICK START GUIDE 1. ADD GAS MID GRADE AND 10W30 OIL TO EITHER ONE OF THE YELLOW PLUGS. 2. YOUR GRINDER WON'T START ON LOW OIL. MAKE SURE YOUR OIL IS FULL – HALFWAY UP THE FILLER NECK. 3.
