DORMEO Lumi OFD-LUM552-BLK Quick Manual

OPERATING INSTRUCTIONS

1. To Adjust Seat Height:

While seated, lean forward and reach under the right side of
the chair to find the handle. Flip the handle down and raise
your body up slightly to allow the chair to rise to the desired
height. To lower the seat, flip the handle down while applying
more weight downward on the seat. The chair will descend until
the handle is released or the chair reaches the bottom position.

2. To Operate Tilt Lockout:

Lean back to allow the chair to tilt backwards. Press the button
on the height adjustment handle to lock the chair angle while
the desired position is reached. Once you want to release the
mechanism from the lock position, press the button (If press
the button, apply more weight backward onto the backrest
cushion and then release, the backrest cushion will come back
to normal position.)
Note: The force of the backrest can adjust automatically to the
individual weight.

3. To Adjust Seat Depth:

Reach under the left side of the chair to find the handle. Lift the
handle and adjust the seat depth short enough to enable your
legs to move freely under the chair. To adjust seat depth, lift the
handle and slide the seat into the preferred position. Located
desired position and release handle to lock.

4. To Adjust Arm Height:

Pull up the buttons and hold to allow the arms to move up and
down freely and then release the button once the desired
height is reached.
5. 360° Swivel:
360° seat swivel.

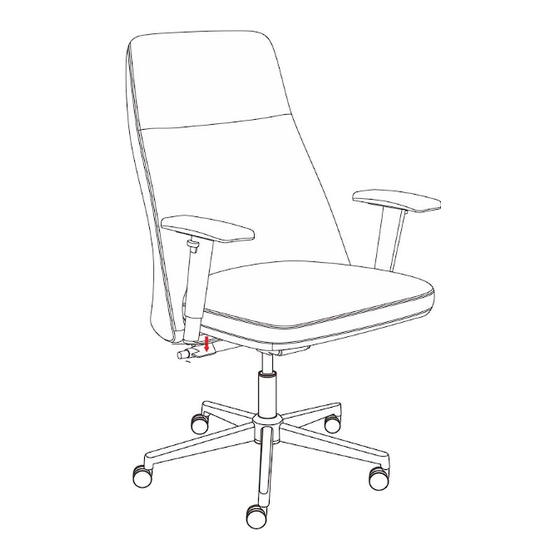

Model Number: OFD-LUM552-BLK
Lumi Executive Chair
