BELT ADJUSTMENT

6mm Allen Wrench
The running belt is pre-adjusted to the running deck at the factory, but after prolonged
use it can stretch and require readjustment. To adjust the belt, turn on the main power
switch of the treadmill and let the belt run at a speed of 4.0-6.0 KPH. Use the Allen

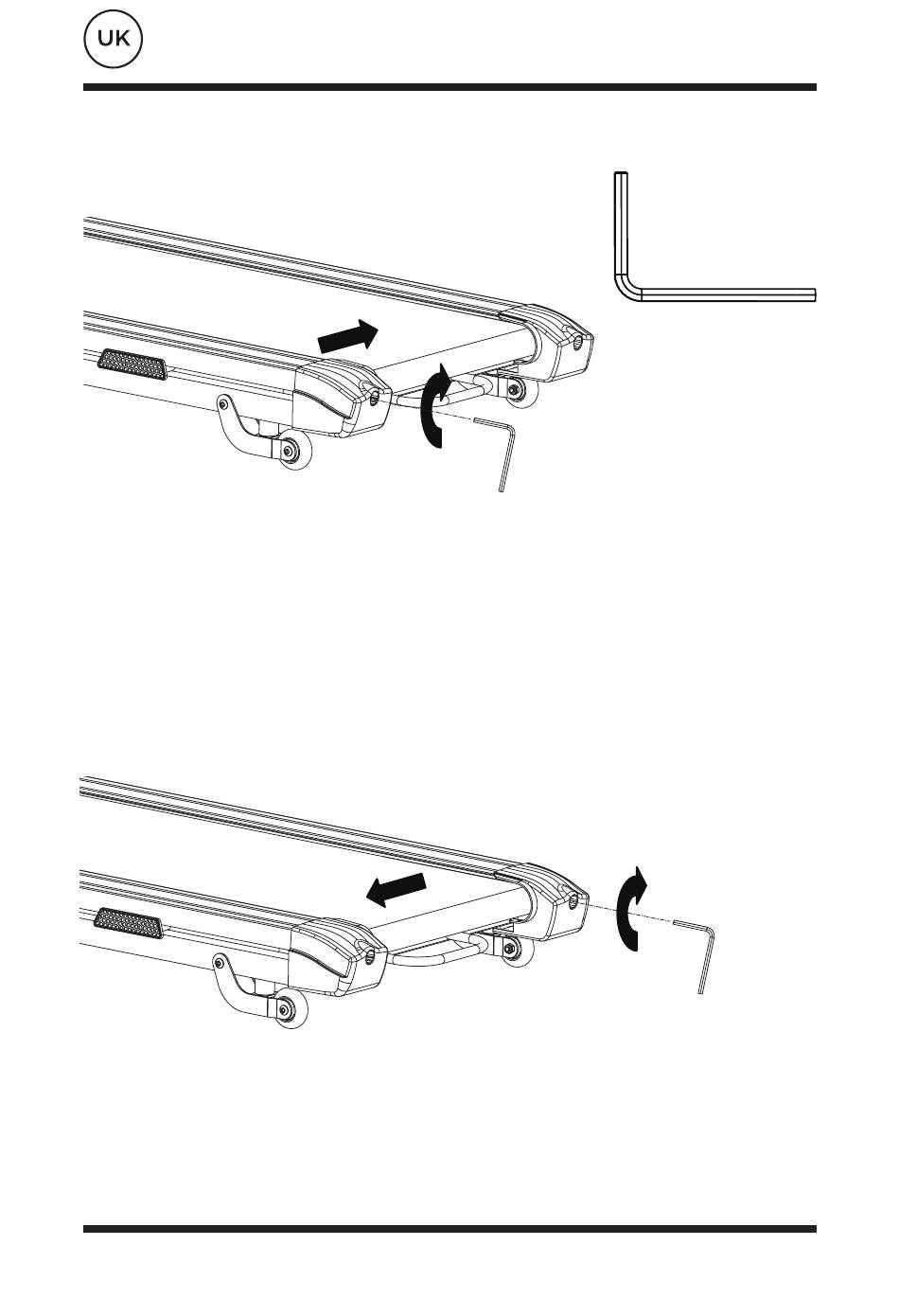

Wrench provided to turn the rear roller adjustment bolts in order to centre the belt. If
the running belt is shifting to the left, turn the left adjustment bolt 1/4 turn clockwise,
and the running belt should start to correct itself.
If the running belt is shifting to the right, then turn the right adjustment bolt 1/4 turn
clockwise, and the belt should start to correct itself. Keep turning the adjustment bolts
until the running belt is properly centered.
