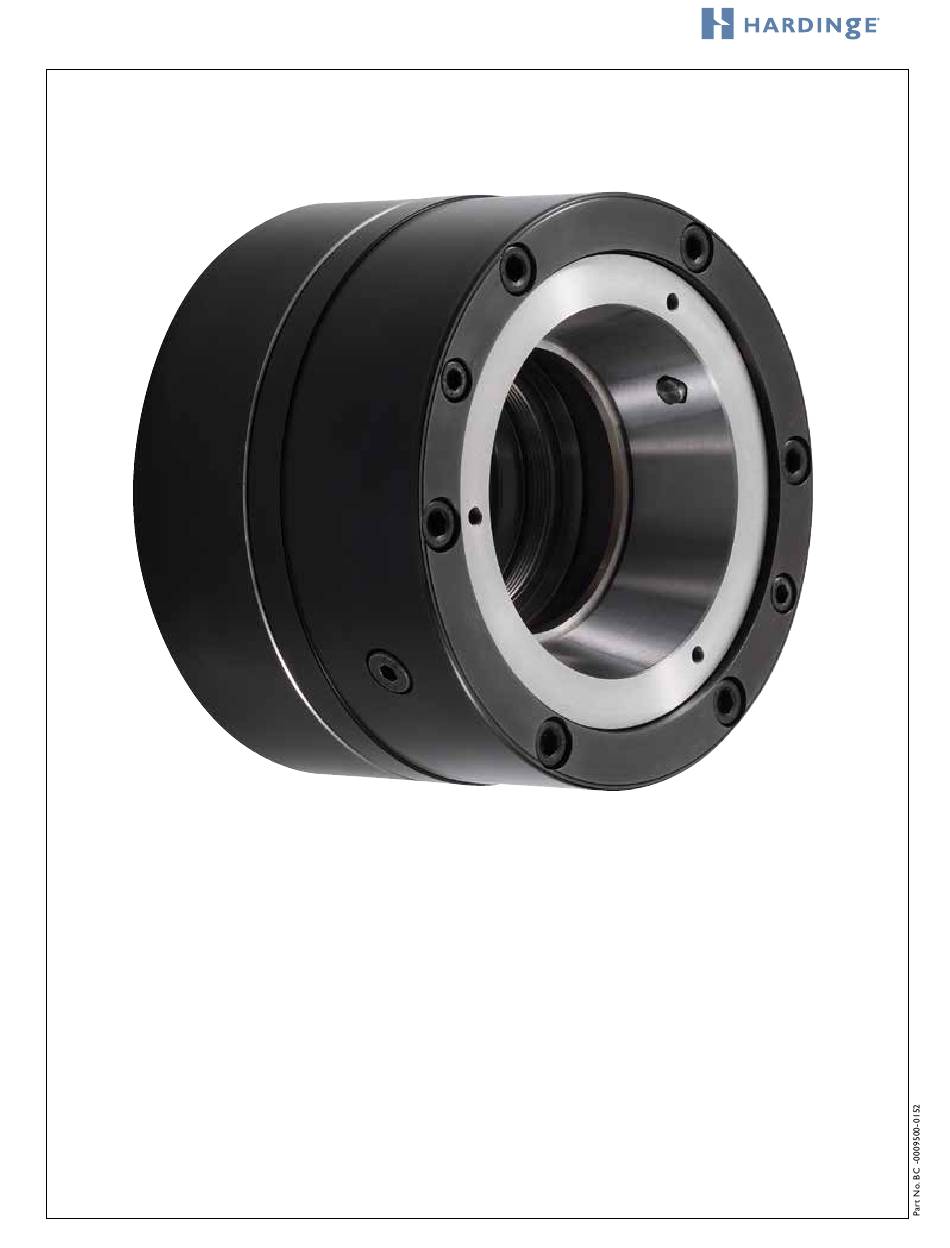

65mm FlexC
Collet System Style DL
Instructions B-152C
®
Hardinge FlexC™ Dead-Length
Collet System
Style DL — 65mm
Installation Instructions
and Parts Lists
Hardinge Inc. One Hardinge Drive, Elmira, New York U.S.A. 14902-1507 800.843.8801 (Canada 800.468.5946) www.shophardinge.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hardinge FlexC Dead-Length 65
Summary of Contents for Hardinge FlexC Dead-Length 65
- Page 1 ™ 65mm FlexC Collet System Style DL Instructions B-152C ® Hardinge FlexC™ Dead-Length Collet System Style DL — 65mm Installation Instructions and Parts Lists Hardinge Inc. One Hardinge Drive, Elmira, New York U.S.A. 14902-1507 800.843.8801 (Canada 800.468.5946) www.shophardinge.com...
-
Page 2: General Safety Information
Their outstanding characteristics include parallel workpiece clamping, superb accuracy with a minimum of deformation of the work piece, and quick-change capability. If the Hardinge FlexC style DL Collet System is used as a dead-length system the work stop is inserted into the workstop adapter with the part stop wrench included. When part length control is not required the work stop can be removed. - Page 3 The Hardinge FlexC Collet System requires a drawbar linkup to mate the specific machine drawbar (varies by machine brand and model) to the FlexC clamping sleeve. This linkup can be ordered from Hardinge or can be made by the customer.
- Page 4 M8x70 SHCS (26ft-lb/36Nm) MS-0313617 M6x16 Flathead Screw MS-0104019 M10x25 SHCS (40ft-lb/54Nm) MS-0103622 M6x40 SHCS MS-0103625 M6x55 SHCS * No additional charge unless a drawbar linkup is required. Hardinge Inc. One Hardinge Drive, Elmira, New York U.S.A. 14902-1507 800.843.8801 (Canada 800.468.5946) www.shophardinge.com...
- Page 5 M8x70 SHCS (26ft-lb/36Nm) MS-0313617 M6x16 Flathead Screw MS-0104222 M12x40 SHCS (60ft-lb/81Nm) MS-0103622 M6x40 SHCS MS-0103625 M6x55 SHCS * No additional charge unless a drawbar linkup is required. Hardinge Inc. One Hardinge Drive, Elmira, New York U.S.A. 14902-1507 800.843.8801 (Canada 800.468.5946) www.shophardinge.com...
- Page 6 M8x70 SHCS (26ft-lb/36Nm) MS-0313617 M6x16 Flathead Screw MS-0104622 M16x40 SHCS (90ft-lb/122Nm) MS-0103622 M6x40 SHCS MS-0103625 M6x55 SHCS * No additional charge unless a drawbar linkup is required. Hardinge Inc. One Hardinge Drive, Elmira, New York U.S.A. 14902-1507 800.843.8801 (Canada 800.468.5946) www.shophardinge.com...
- Page 7 M8x70 SHCS (26ft-lb/36Nm) MS-0313617 M6x16 Flathead Screw MS-0104020 M10x30 SHCS (40ft-lb/54Nm) MS-0103622 M6x40 SHCS MS-0103625 M6x55 SHCS * No additional charge unless a drawbar linkup is required. Hardinge Inc. One Hardinge Drive, Elmira, New York U.S.A. 14902-1507 800.843.8801 (Canada 800.468.5946) www.shophardinge.com...
-
Page 8: Installation
Clean and lightly oil the collet head and the body before installing. keyway Hardinge Inc. One Hardinge Drive, Elmira, New York U.S.A. 14902-1507 800.843.8801 (Canada 800.468.5946) www.shophardinge.com... - Page 9 Tighten the locking screw by hand to ensure that there will be no movement in the dead-length work stop. Remember to replace the seal #17 before inserting your collet head. Failure to use the seal may cause malfunction of the collet system. Hardinge Inc. One Hardinge Drive, Elmira, New York U.S.A. 14902-1507 800.843.8801 (Canada 800.468.5946) www.shophardinge.com...
