Dimension in mm(inch)
Remote-controller
transmitter,KZQ-8YKC-1
working frequency :2.4GHz
power:CR2032(3V)button lithium battery
Remote range:≤15m
Ta:0℃~35℃
Memory fuction: Last setting will be saved
Switching power: Up to 2.5A.
1
Battery installation
4
6
On/Off button
6
.a

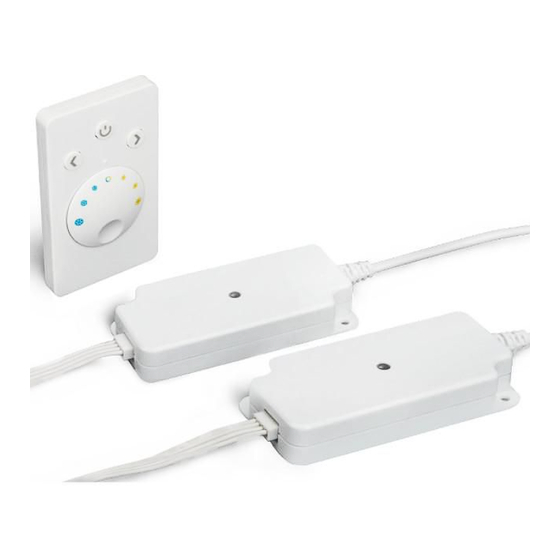

Emotion remote controll system
Holder
2
6
.b
Increases
brightness
Indicator
Color
Temperature
6
.c
Wheel
6
.d
Receiver
KZQ-9XJC
Application:To control the color temperature adjustable LED lamps
Load:DC 12V or 24V color temperature adjustable LED lamps
Rated supply
Rated load
12VDC
24VDC
5
LED Driver
30W
60W
3
Receiver
Press to decrease by 10% brightness,
there are 10 brightness levels.
Hold down to decrease brightness
gradually down to 10%.
Press to increase by 10% brightness,
there are 10 brightness levels.
Hold down to increase brightness
gradually down to 10%.
Warmwhite
Coolwhite
Rotate to select the desired color temperature
with the indicator line.
L&S 2.08.0244.00.00
Distributor
Advertisement
Related Manuals for L&S Emotion
Summary of Contents for L&S Emotion
- Page 1 Emotion remote controll system Dimension in mm(inch) Remote-controller Holder Receiver transmitter,KZQ-8YKC-1 KZQ-9XJC working frequency :2.4GHz Application:To control the color temperature adjustable LED lamps power:CR2032(3V)button lithium battery Load:DC 12V or 24V color temperature adjustable LED lamps Remote range:≤15m Rated supply Rated load Ta:0℃~35℃...
- Page 2 The transmitter can control multi route color temperature adjustable LED Lamps Match the slave receiver to transmitter with receiver within the remote range Connect color temperature If you need this function , please go with step8 and step9. adjustable LED lamps Slave Receiver Remote range ≤...
Need help?
Do you have a question about the Emotion and is the answer not in the manual?
Questions and answers

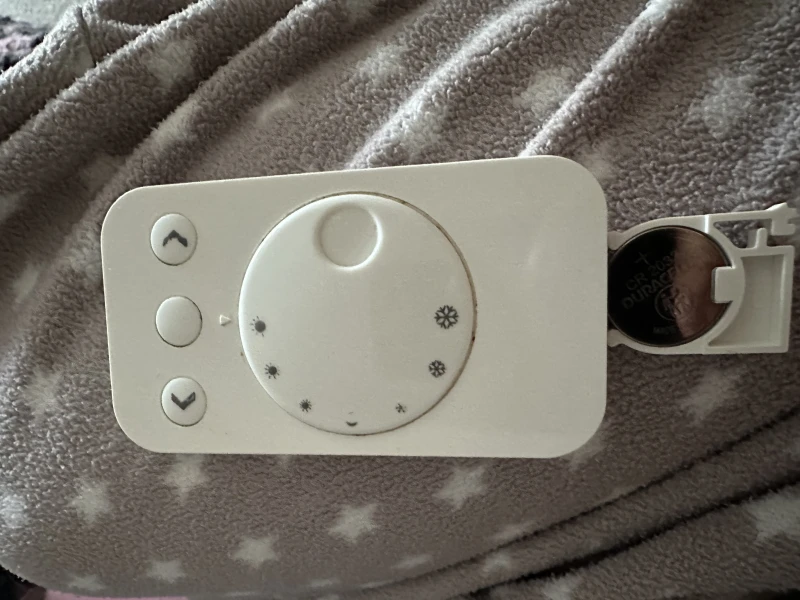

My remote is not working and I’ve changed battery - can you help
To fix a non-working L&S Emotion remote after changing the battery:
1. Ensure the new CR2032 (3V) battery is installed correctly.
2. Press any button to wake up the remote if it's in sleep mode (it goes dormant after 60 seconds of inactivity).
3. Confirm the transmitter is properly connected to power.
4. Press the test button for 5 seconds; if the indicator light flashes after 5 seconds, the transmitter is working well with the receiver.
5. If not working, re-match the remote to the receiver by following the “Match the master receiver to transmitter” step, ensuring the original master receiver is powered on.
If these steps do not restore function, further troubleshooting may be needed.
This answer is automatically generated
Same problem here. Put the driver in the wall i can't reach it anymore expect destroying the wall. Any other options to make it work?
