Network Security

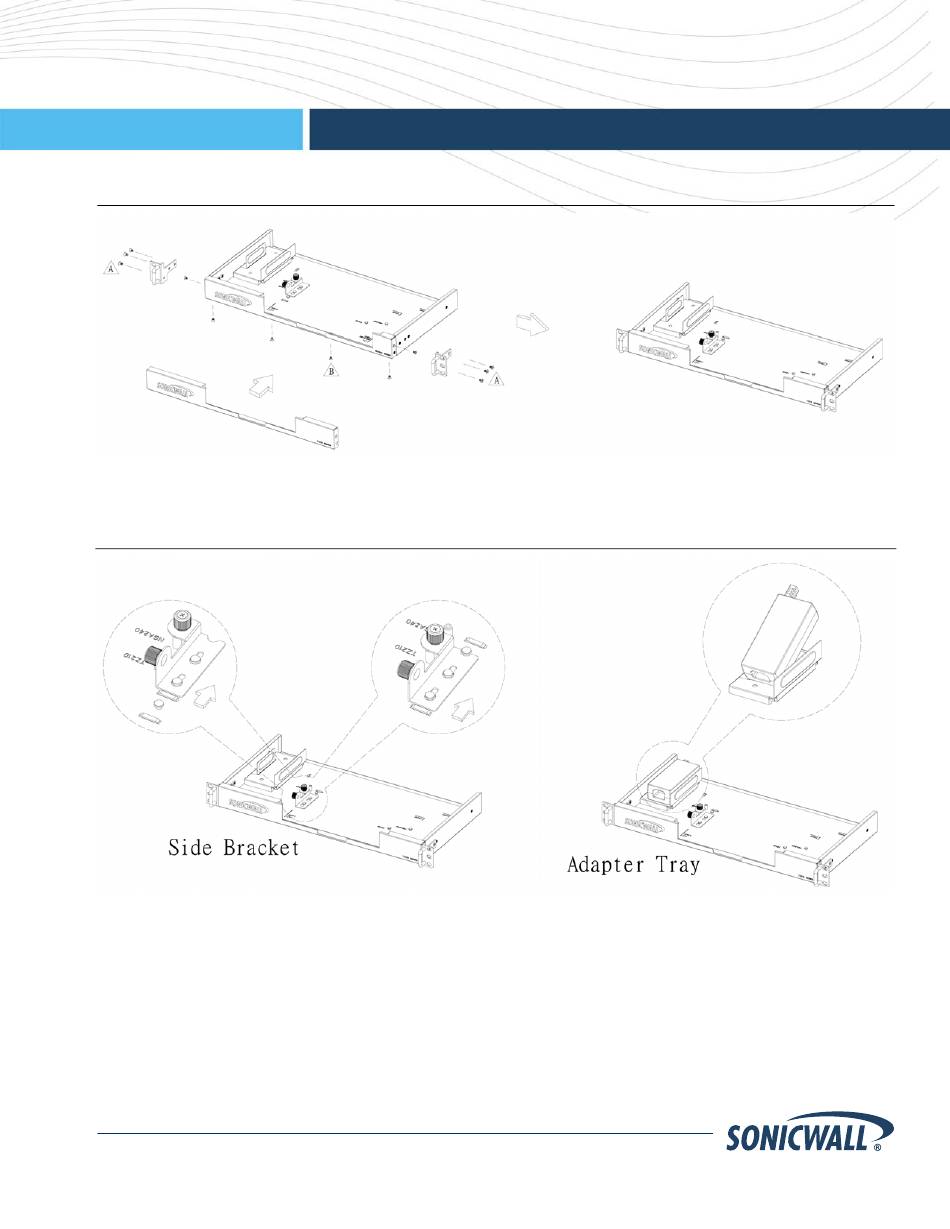

Step 1 – Replace Front Panel
1. Remove the six (6) M4 screws from the rack ears (A).
2. Remove the six (6) M3 screws from the bottom and sides of the front panel (B).
3. Replace the existing front panel with the TZ 210 front panel and re-fasten all screws.
Step 2 – Reposition Side Bracket
4. Un-fasten the side bracket and move it to the NSA 210 position as marked on the tray chassis.
5. Re-fasten the side bracket
6. Insert the adapter Tray
SonicWALL TZ 210 Rackmount Tray Assembly – Installation Guide
Installation Guide
SonicWALL TZ 210 Rackmount Tray Assembly
Advertisement
Table of Contents
Related Manuals for SonicWALL TZ 210
Summary of Contents for SonicWALL TZ 210
- Page 1 1. Remove the six (6) M4 screws from the rack ears (A). 2. Remove the six (6) M3 screws from the bottom and sides of the front panel (B). 3. Replace the existing front panel with the TZ 210 front panel and re-fasten all screws. Step 2 – Reposition Side Bracket 4.
- Page 2 7. Align front the panel of the NSA 240 appliance and place the unit flush with the bottom of the tray. 8. Slide the appliance to the left until it is flush against the screw mounting hardware. 9. Fasten the mounting screws until firm. ______________________ Last updated: 9/2/2009 Prepared by: PLydon SonicWALL TZ 210 Rackmount Tray Assembly – Installation Guide...
