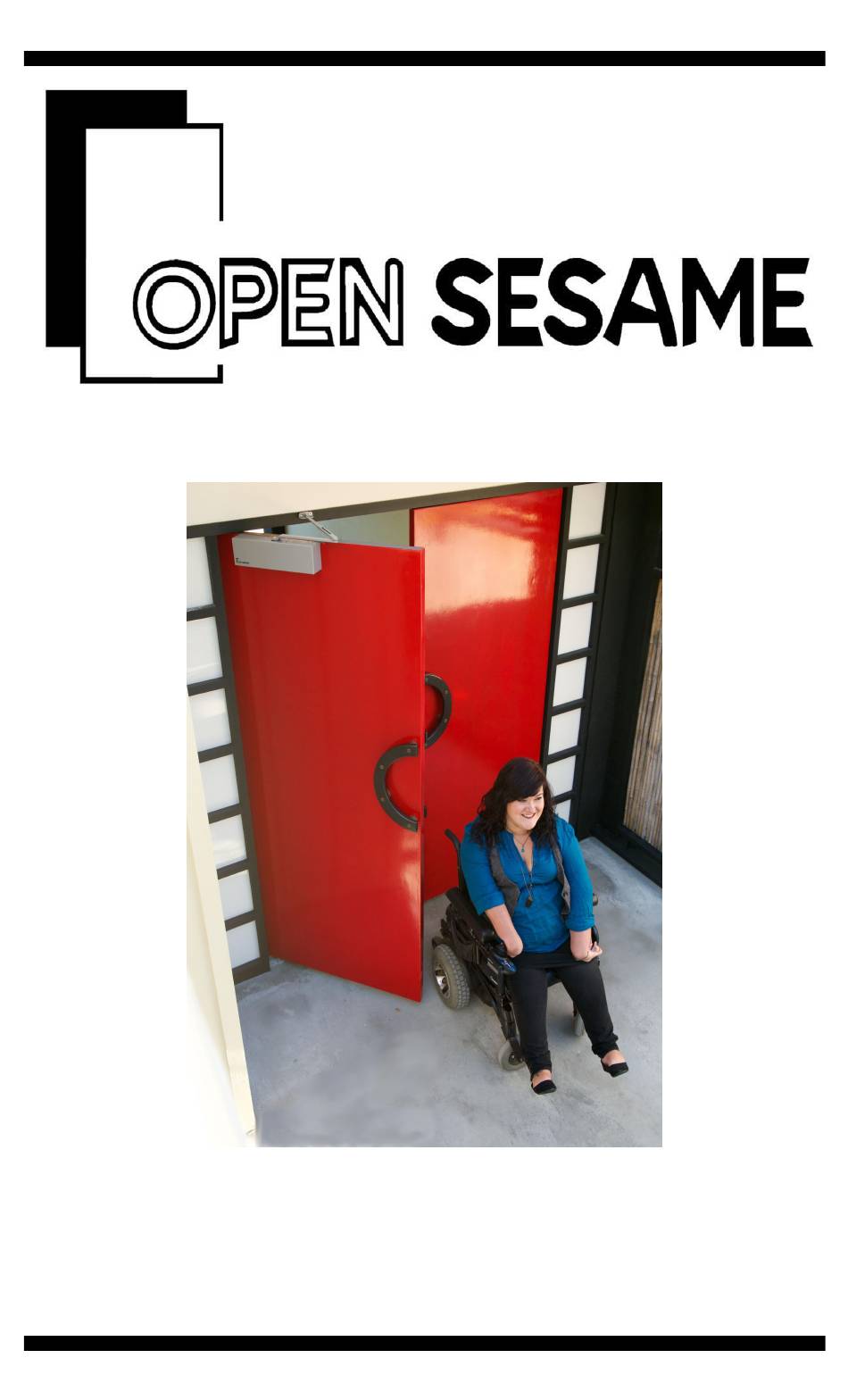

- Page 1 Owner's Manual Open Sesame Door Systems, Inc. Manufacturer of Disability Access products 1.800.673.6911...
- Page 2 Thank you for your purchase of the Open Sesame door operating system. This product is designed to be durable and provide years of trouble-free service. To ensure the Open Sesame Door System lives up to all expectations, it is important to read and comply with this owners manual.
-
Page 3: On/Off Switch
ON/OFF Switch You can locate the invoice number/serial number on the bottom of the Open Sesame operator and on the inside cover Bottom of Operator Inside Cover Page 2... -
Page 4: To Remove Cover
TO REMOVE COVER: Only screws need to be removed which are located on the top and bottom center of the operator. With the door closed, the screw on the top of the operator will be blocked by the arm; the door will need to be opened in order to access the top screw Top Screw Bottom... - Page 5 Adjustments Your Open Sesame door operator has three potentiometer (pot/knob) adjustments and one position jumper adjustment (auto-close). To change these settings at any point during or after installation you must first remove the Operator cover. The location of these adjustments are shown on the diagram on the inside cover of the operator.
- Page 6 Auto-close (for Model 133 only) is an optional feature used for elevator doors, public bathroom doors and doors off public hallways. When the auto-close adjustment feature is selected and the door is manually opened and left open, the door will automatically close after a delay. This feature disables the park-open feature.
- Page 7 Door Operator Battery Maintenance and Troubleshooting The battery in the door operator should last approximately 3-5 years. To test the function of the operator without using the remote, manually press the black button on the top surface of the operator. If the unit does not respond the door operator battery may be completely discharged and may need recharging or replacement.
-
Page 8: Testing The Battery
Testing the Battery: 1. Make sure the operator is switched OFF 2. Remove cover from the operator. 3. Unplug one of the terminals connected to the battery. 4. With your meter place the positive lead on the red terminal and the negative lead on the black terminal 5. -
Page 9: About Your Remote Control
About Your Remote Control Open Sesame remote controls are radio-frequency transmitters similar to controls used for automatic garage doors. They will transmit through walls and have a range of up to 100 ft. Your remote control contains batteries that will require replacement about once a year. -
Page 10: Remote Control Batteries
Remote Control Batteries The batteries used in our transmitters are shown below. They can be obtained at your local drug stores. 12v 23A 3v CR123 3v 2016 Page 9... - Page 11 How to Program Transmitters ECU Transmitter, Keychain Transmitter, 1-Button, 2-Button, and 4-Button Transmitters • Locate the RED program button on the upper right surface of the opener. Press an release this button momentarily for 1 seconds (one thousand and one). •...
- Page 12 To Change Code for Keyless Entry Pad You may have chosen to purchase the security entry system, also known as the keyless entry pad. If not, it is always available for purchase after your original installation. The keyless entry pad is primarily used to allow home healthcare personnel access to a residence without giving out keys.
- Page 13 Replacing Remote Controls If your remote control has been lost or damaged, you will need to acquire a new remote and program your Open Sesame operator to respond to it. For your security the Open Sesame operator will only respond to the remote control it has been programmed to.
- Page 14 90 Day Satisfaction Guarantee During the first 90 days after date of purchase*, if you are dissatisfied with the performance or the quality of materials of the Open Sesame door operator, you may return the door operator for a refund or exchange. For customized/special order items contact us to check return eligibility.
-
Page 15: Year Limited Warranty
The course of action necessary to return your door operator to a functional state is solely at the discretion of Open Sesame Door Systems, Inc. 5 Year Limited Warranty After the first year, Open Sesame will replace, exchange or repair all factory supplied components on a fee basis not to exceed $450 for an additional 5 years. -
Page 16: Troubleshooting
Troubleshooting Issue Cause Solution No Green (ON) light on the No power from transformer Plug transformer into a different outlet board (no green light on the transformer) Bad Transformer Replace transformer No red light on board Operator is switched OFF Move switch to ON position Realign H Sensor and red dot on disk Unaligned H Sensor and red dot... - Page 17 Door moves slower upon Weather stripping, dragging on Remove anything that might be opening/closing door.. dragging the door. Thick weather stripping may need to be removed Battery Failure Recharge or replace battery Strike does not release door Clutch is engaging and keeps Battery Failure-Turn off operator and latch running so it wont let you open...
- Page 18 For Technical Service Contact your local dealer/installer Dealer/Installer: Contact: Phone #: Invoice #: Open Sesame Door Systems, Inc. 1933 Davis Street, Suite 279 San Leandro, CA 94577 1.800.673.6911 Manufacturer of Disability Access Products www.opensesamedoor.com...
