Full middle boost with no bass or treble actually gives a near-flat frequency response,
allowing you to hear the natural sound of your pickups.

Fender and Marshall tone controls

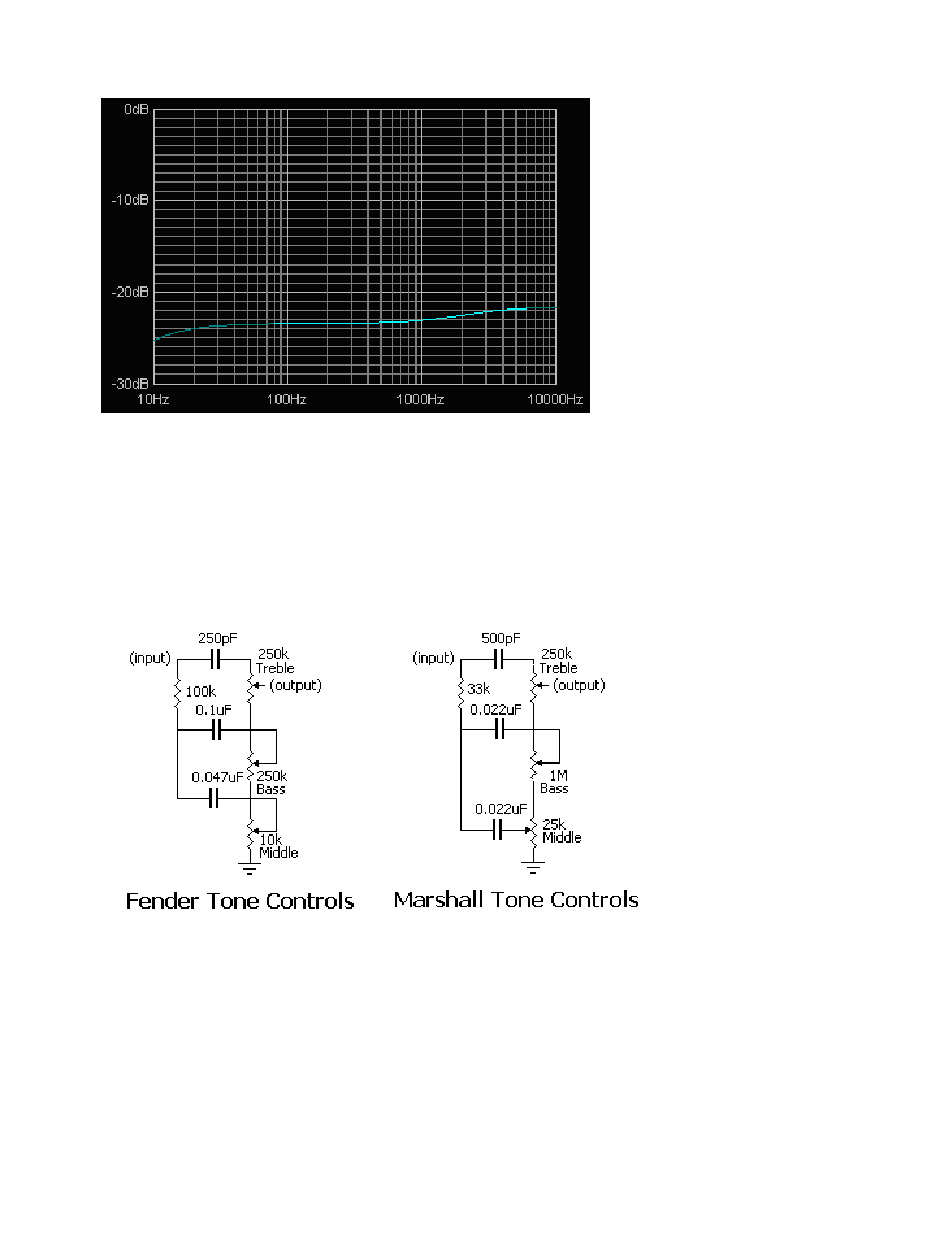

Here are circuit diagrams of typical Fender and Marshall tone controls. They both meet the
criteria of compensating for pickups' low-middle emphasis, as well as providing a useful
range of tone adjustment.
The Fender and Marshall circuits are each tailored to suit their own styles, which are quite
different. Although a generalization, Fender's market and consequently the power output
stage are geared towards provided clean and chunky tones at clean and early-overdrive
levels. Marshall amps are best at low-middley and crunchy rock tones, played at medium to
high overdrive levels.
Here is a simple comparison of Marshall and Fender response with what might loosely be
called 'typical settings' of Bass on 3, Middle on 4, and Treble on 6. The most obvious
difference is that the Marshall lets more level through, and their tone controls have less
range of adjustment. The higher level means that by using the same number of preamp tube
stages, a Marshall can overdrive the output stage more.
