CyberData 011039 Installation Quick Reference

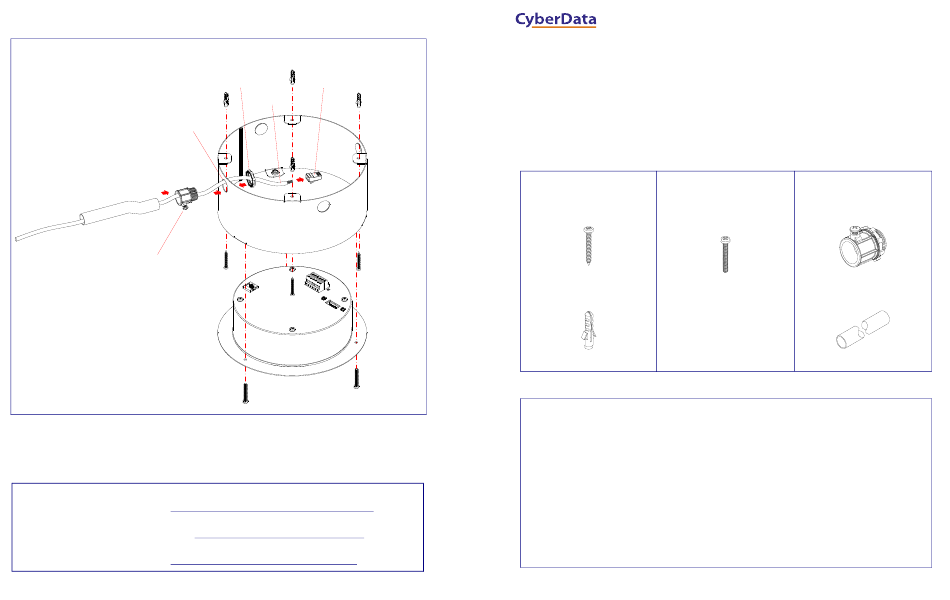

Installing the Conduit Speaker Mount
Pry & Remove
Knockout (KO)
1/2" Set Screw
Connector
1/2" Conduit
Network Cable
Tighten Screw
to Secure
1/2" Conduit
011021B, 011022A
or
011127A (As Shown)
Contacting CyberData
Corporate Headquarters Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.html
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status:
Phone: 831-373-2601
Fax: 831-373-4193
Warranty and RMA information is available at:
www.CyberData.net
Web: http://www.cyberdata.net/support/warranty/index.html
© 2011, CyberData Corporation, ALL RIGHTS RESERVED.
RJ-45
Connector
Nut,
Terminate after
Part of
Network Cable
1/2" Set Screw
Pass Through
Connector
1/2" Set Screw Connector
Network Cable
(KO)
(KO)
(KO)
Sheet Metal Screw
& Plastic Anchor
(4 Pieces Each)
Mounting Screw
(3 Pieces)
Comes with
Accessory Kit
http://www.cyberdata.net/support/rmastatus.html
930365C
The IP Endpoint Company
The Conduit Speaker Mount is an adapter that is built for a CyberData Ceiling speaker.
Parts
611056B
(4) #6 x 1.25-inch Sheet Metal Screw
Accessory Kit
121001A
(4)Size 6 Plastic Anchor
Procedure
071006A
To install the Conduit Speaker Mount:
1. Use the template to mark the hole locations on the ceiling.
2. Drill holes on the ceiling.
3. Insert the size #6 plastic anchor into the pre-drilled holes.
4. Line up the mounting adapter (part #611056B and install the #6 sheet metal screws.
5. Tighten the sheet metal screws to secure the mounting adapter.
6. Line up the ceiling speaker assembly to the mounting adapter.
7. Install the size #8 Pan Head Phillips Machine Screws (mounting screw).
8. Tighten the mounting screw to secure the ceiling speaker to the mounting adapter.
Quick Reference Quick Reference
Installation Quick Reference
Conduit Speaker Mount
011039
Accessory Kit Comes with the Ceiling Speaker
Accessory Kit
(3)#8 x 1.25-inch PanHead Phillips
Machine Screw (Mounting Screw)
930365C
Not Provided
(1) 0.5-inch EMT Set Screw Connector
(1) 0.5-inch EMT Conduit
