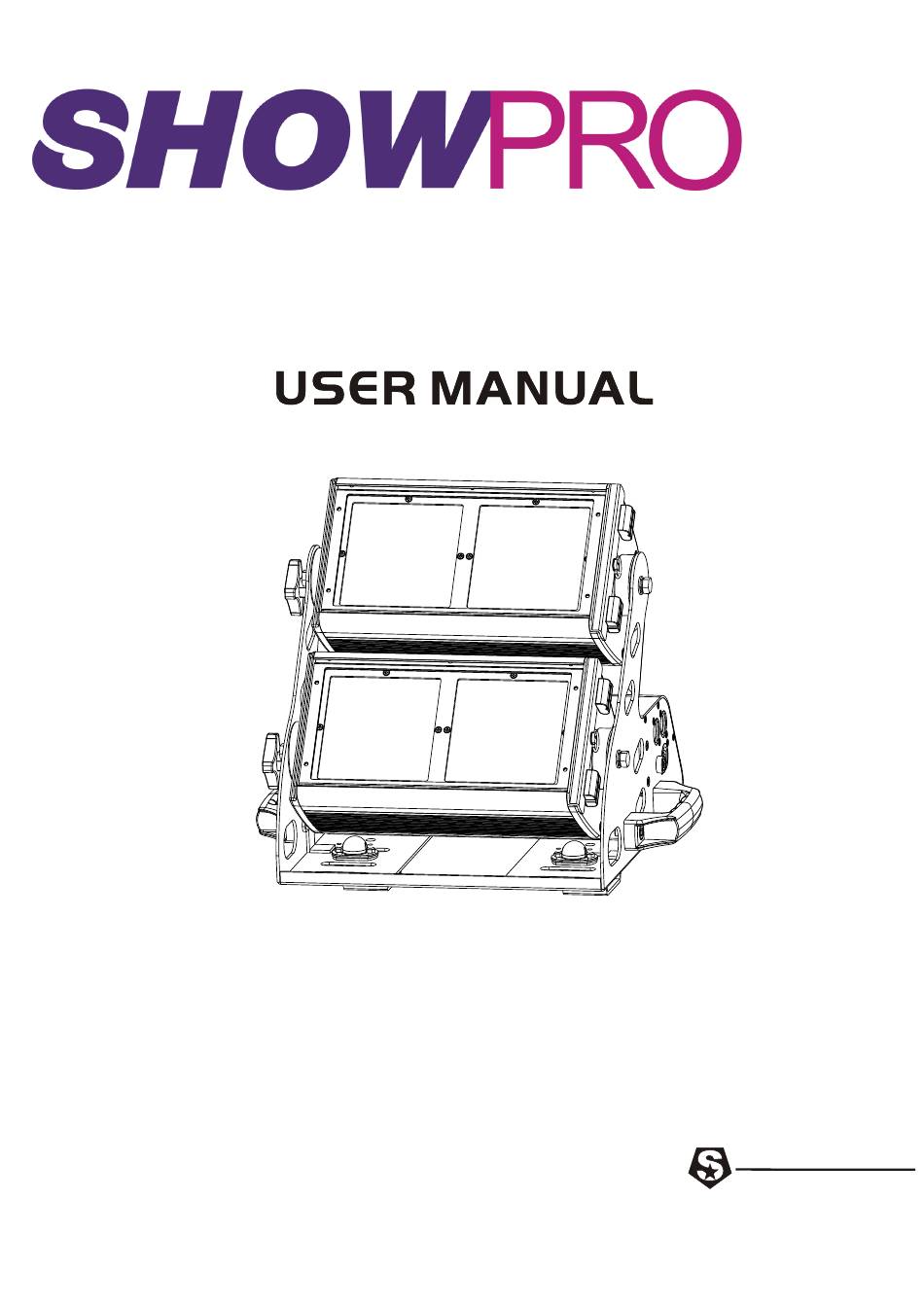

- Page 1 LED CYC2 RGBAL LEDCYC101 SILVER STAR SILVER STAR P ro f e s s i o n a l L i g h t i n g P ro f e s s i o n a l L i g h t i n g...
-
Page 2: Product Specifications
1 PRODUCT SPECIFICATIONS 1 PRODUCT SPECIFICATIONS 1.1 PRODUCT SPECIFICATIONS Voltage:AC100~240V 50/60Hz Max Power:150W Size: 390x310x298mm Weight:10kg 390.0... -
Page 3: Safety Warning
1.2 SAFETY WARNING IMPORTANT This product must be installed by a qualified professional. All maintenance must be carried out by a qualified electrician. A minimum distance of 0.5m must be maintained between the equipment and a combustible surface. The product must always be operated in a well ventilated area. DO NOT stare directly into the LED light source. -
Page 4: Installation
2 INSTALLATION MOUNTING HANGING The LED fixture can be mounted in a hanging position using the supporting bracket. The bracket should be secured to the mounting truss or structure using a standard mounting clamp. Please note that when hanging the unit a safety cable should also be used. -
Page 5: Display Panel Operation
DISPLAY PANEL OPERATION 3.1 DISPLAY OPERATION MENU BACK ENTER ENTER OR SAVE DOWN DOWN MENU ENTER DOWN 3.2 MENU MAP MENU STAT R.(0~255) GREEN G.(0~255) B.(0~255) BLUE AMBE W.(0~255) LIME A.(0~255) S.(0~25) STROBE L106 PRESET COLOR L194 L019 L213 R377 L202 L328 R3314... - Page 6 R.(0~255) EDIT PR.01 SC.01 G.(0~255) B.(0~255) A.(0~255) L.(0~255) S.(0~25) T.(0~255) PR.10 SC.30 F.(0~255) UPLOAD SETTING **** SEND **** RESET RESET **** COLOR RGBtoW DIMMER DIM4 DIM3 DIM2 DIM1 DMX ERROR SAVE BLACK MCON SELF MASTER PWM_RATE 600HZ 1200HZ 2000HZ 4000HZ 6000HZ 25000HZ POWER CCT...
-
Page 7: Edit Static Colour
EDIT STATIC COLOUR MENU STAT R.(0~255) GREEN G.(0~255) B.(0~255) BLUE AMBER A.(0~255) LIME L.(0~255) S.(0~25) STROBE Combine RED , GREEN , BLUE , AMBER LIME create an infinite range of colors (0-255) Set the value of the STROBE (0-25Hz) MIX-COLOR SETTING MENU PRESET COLOR L106... -
Page 8: Activating Auto Programs
ACTIVATING AUTO PROGRAMS MENU AUTO PROGRAM AUTO.01 P.(0~255) AUTO.10 PR.01 PR.10 Select the target AUTO PROGRAM program and press ENTER . Programs AUTO.01 to AUTO.10 are fully pre-programmed and will not be altered by changes in EDIT mode. Programs PR.01 to PR.10 are fully pre-programmed and can be edited EDIT mode. - Page 9 3.10 SPECIAL SETTINGS MENU UPLOAD SETTING **** **** SEND RESET RESET **** COLOR RGBtoW DIMMER DIM4 DIM3 DIM2 DIM1 DMX ERROR SAVE BLACK MCON SELF MASTER PWM_RATE 600HZ 1200HZ 2000HZ 4000HZ 6000HZ 25000HZ POWER CCT 3200K 4200K 5600K NORMAL [SETTING]...this menu allows the user to adjust key operation settings for this fixture. Select[UPLOAD] to upload the custom programs from the current MASTER unit to the SLAVE units.
-
Page 10: Activate The Password
3.11 ACTIVATE THE PASSWORD MENU Enter the KEY mode to select whether the access password is on or off. When the fixture is set as PASS ON , after 30 seconds or turn on the fixture next time, the fixture will need an access password to enter the display menu control. -
Page 11: Using A Dmx512 Controller
4 USING A DMX512 CONTROLLER CHANNEL ASSIGNMENT Note: This product have four DMX512 channel configuration: HSIC TOUR TR16 PIXEL.1 PIXEL.2 CHANNEL VALUE FUNCTION INTENSITY HUE FINE SATURATION NO FUNCTION 2700K 3000K 3200K 3500K 4000K 4200K 4500K 5600K 6000K 6500K 7200K 8000K STROBE NO FUNCTION... - Page 12 CHANNEL VALUE FUNCTION MASTER DIMMER GREEN BLUE AMBER LIME PRESET COLOR NO FUNCTION L106 L194 L019 L213 R377 L202 L328 R3314 L101 L768 NO FUNCTION STROBE NO FUNCTION STROBE FROM SLOW TO FAST 0-25Hz NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM SROBE DIMMER SPEED PRESET DIMMER SPEED FROM DISPLAY MENU...
- Page 13 CHANNEL VALUE FUNCTION MASTER DIMMER GREEN BLUE AMBER LIME PRESET COLOR NO FUNCTION L106 L194 L019 L213 R377 L202 L328 R3314 L101 L768 NO FUNCTION COLOR MARCOS NO FUNCTION RED 100% / GREEN UP / BLUE 0% RED DOWN / GREEN 100% / BLUE 0% RED 0% / GREEN 100% / BLUE UP RED 0% / GREEN DOWN / BLUE 100% RED UP / GREEN 0% / BLUE 100%...
- Page 14 CHANNEL VALUE FUNCTION 4200K 4500K 5600K 6000K 6500K 7200K 8000K STROBE NO FUNCTION STROBE FROM SLOW TO FAST 0-25Hz NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM SROBE AUTO NO FUNCTION ATUO1 ATUO2 ATUO3 ATUO4 ATUO5 ATUO6 ATUO7 ATUO8 ATUO9 ATUO10 PROGRAM1 PROGRAM2 PROGRAM3...
- Page 15 CHANNEL VALUE FUNCTION MASTER DIMMER MASTER DIMMER FINE RED FINE GREEN GREEN FINE BLUE BLUE FINE AMBER AMBER FINE LIME LIME FINE PRESET COLOR NO FUNCTION L106 L194 L019 L213 R377 L202 L328 R3314 L101 L768 NO FUNCTION COLOR MARCOS NO FUNCTION RED 100% / GREEN UP / BLUE 0% RED DOWN / GREEN 100% / BLUE 0%...
- Page 16 CHANNEL VALUE FUNCTION ALL LEDS AT FULL OUTPUT 2700K 3000K 3200K 3500K 4000K 4200K 4500K 5600K 6000K 6500K 7200K 8000K STROBE NO FUNCTION STROBE FROM SLOW TO FAST 0-25Hz NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM SROBE AUTO NO FUNCTION ATUO1 ATUO2 ATUO3...
- Page 17 CHANNEL VALUE FUNCTION DIMMER SPEED PRESET DIMMER SPEED FROM DISPLAY MENU DIM1 DIM2 DIM3 DIM4...
- Page 18 CHANNEL VALUE FUNCTION DIMMER RED1 GREEN1 BLUE1 PRESET COLOR NO FUNCTION L106 L194 L019 L213 R377 L202 L328 R3314 L101 L768 NO FUNCTION RED2 GREEN2 BLUE2 PRESET COLOR NO FUNCTION L106 L194 L019 L213 R377 L202 L328 R3314 L101 L768 NO FUNCTION...
- Page 19 CHANNEL VALUE FUNCTION DIMMER RED1 GREEN1 BLUE1 AMBER1 LIME1 PRESET COLOR NO FUNCTION L106 L194 L019 L213 R377 L202 L328 R3314 L101 L768 NO FUNCTION RED2 GREEN2 BLUE2 AMBER2 LIME12 PRESET COLOR NO FUNCTION L106 L194 L019 L213 R377 L202 L328 R3314 L101...
