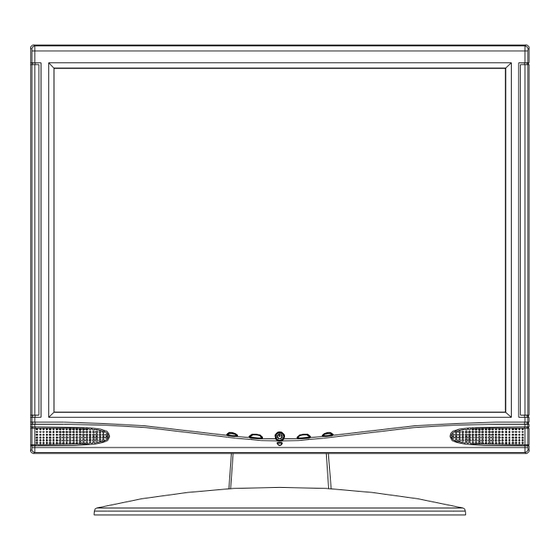

ViewSonic VS11147 User Manual

17" lcd display


LCD Display
- User Guide
- Guide de l'utilisateur
- Guía del usuario
- 使用手冊
Model No. : VS11147


Table of Contents

Summary of Contents for ViewSonic VS11147

  • Page 1 ® ViewSonic LCD Display - User Guide - Guide de l'utilisateur - Guía del usuario - 使用手冊 Model No. : VS11147...
  • Page 2: Table Of Contents

    Quick Installation ... 5 Using the LCD Display Operation... 6 OSD Menu... 7 Other Information Specifications ... 9 FAQ (Frequently Asked Question)... 11 Troubleshooting... 12 Customer Support ... 13 Cleaning the LCD Display ... 14 Limited Warranty ... 15 ViewSonic Q7...
  • Page 3: Compliance Information

    92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” User Information for all Countries Notice: Use the cables which are included with the unit or specified. ViewSonic Q7...
  • Page 4: Important Safety Instructions

    ViewSonic Q7...
  • Page 5: Copyright Information

    NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
  • Page 6: Getting Started

    Please turn off power before cleaning this monitor. Use a soft cloth with clean water and lightly wipe the LCD screen surface. This monitor operates at a high voltage and is potentially hazardous. Only qualified technicians are permitted to assemble or disassemble the device or access internal components. ViewSonic Q7 , 500:1 (subject to panel specification)
  • Page 7: Quick Installation

    Please check the label on the nameplate on the back cover first. Input voltage between 100V and 240V should be used with this monitor. Also please make sure this monitor and your main system (computer) is powered off before attaching any connectors. ViewSonic Q7 AC power input 100~240V, 50/60HZ To PC VGA...
  • Page 8: Using The Lcd Display

    5. Adjust the value or return to the main OSD menu by pushing the EXIT icon. 6. The OSD menu will close automatically after 8 seconds of inactivity. Adjust Volume Press the + o r - button to adjust volume without accessing the OSD menu. ViewSonic Q7 ) value. ) left ) value.
  • Page 9: Osd Menu

    For this model, horizontal frequency must be in the range of 30 ~ 80 KHz and vertical frequency in the range of 55~75Hz. Please make sure your input signal is within these ranges. ViewSonic Q7 Select function name Function’s value...
  • Page 10 Adjusts green gain Color B Adjusts blue gain Color Temperature Sets the screen to use cool Native. warm, or a user-defined value Recall Reset user changed and restores factory setting Exit Exits the main OSD menu Volume Adjusts brightness ViewSonic Q7...
  • Page 11: Other Information

    D-Sub 15 VGA, AC power jack, audio jack Control Button on front frame Power, Auto-Adjust, Menu, Up (+), Down (-) *** The above specifications may differ depending on the actual LCD panel utilized and are subject to change without prior notice ViewSonic Q7...
  • Page 12 720x400 70 Hz 640x480 800x600 832x624 1024x768 1152x864 1152x870 1280x960 1280x1024 ViewSonic Q7 Power Video Signal Power Indicator Green VESA 60/75 Hz 67 Hz 56 / 60 / 72 / 75 Hz 75 Hz 60 / 70 / 75 Hz...
  • Page 13: Faq (Frequently Asked Question)

    Check the Recall & AUTO ADJUST items of the OSD menu. Adjust horizontal and vertical position using the OSD menu. Make sure that your display card is compatible with the LCD specifications. (Please refer to relevant diagrams or manual and updated information as well). ViewSonic Q7...
  • Page 14: Troubleshooting

    Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic Control buttons do not work • Press only one button at a time.
  • Page 15: Customer Support

    Zealand Singapore, Southeast Asia, and India South Africa and other countries Hong Kong T= +852 3102 2900 Macau T= +853 700 303 Korean ViewSonic Q7 T = Telephone Email F = FAX T= (800) 688 6688
  • Page 16: Cleaning The Lcd Display

    LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. • ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol- based cleaners. ViewSonic Q7...
  • Page 17: Limited Warranty

    How long the warranty is effective: ViewSonic LCD displays are warranted for 1 year for all parts including the light source and 1 year for all labor from the date of the first consumer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser.
  • Page 18 Exclusion of damages: ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon incon- venience, loss of use of the product, loss of time, loss of profits, loss of business opportu- nity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
