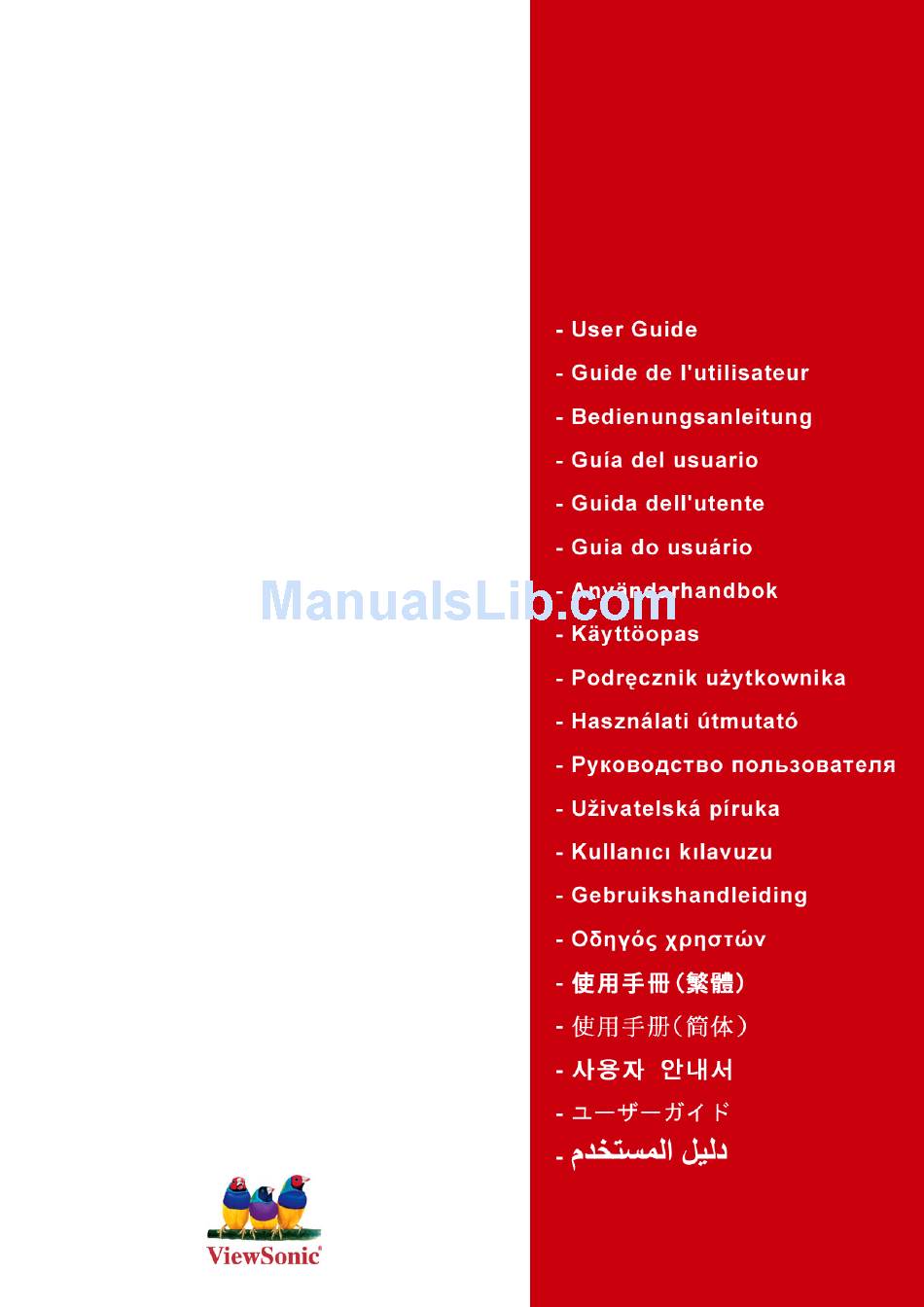

- Page 1 ® ViewSonic VA1703w/VA1703wb LCD Display Model No. : VS11668...
-
Page 2: Table Of Contents
OSD and Power Lock Settings ... 8 Adjusting the Screen Image ... 9 Main Menu Controls ... 11 Other Information Specifications ... 15 Troubleshooting... 16 Customer Support ... 17 Cleaning the LCD Display ... 18 Limited Warranty ... 19 ViewSonic VA1703w/VA1703wb... -
Page 3: Compliance Information
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. ViewSonic VA1703w/VA1703wb... -
Page 4: Important Safety Instructions
ViewSonic VA1703w/VA1703wb... -
Page 5: Declaration Of Rohs Compliance
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. ViewSonic VA1703w/VA1703wb Proposed Maximum Concentration 0.1% 0.1%... -
Page 6: Copyright Information
® NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 7: Getting Started
NOTE: The CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both the INF and ICM files. -
Page 8: Quick Installation
NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD. 4. Insert the ViewSonic Wizard CD into the computer’s CD drive. Follow the on-screen instructions. If your computer does not have a CD-ROM drive, please refer to Customer Support page. -
Page 9: Wall Mounting (Optional)
Wall Mounting (Optional) To obtain a wall-mounting kit, contact ViewSonic instructions that come with the base mounting kit. To convert your LCD display from a desk- mounted to a wall-mounted display, do the following: Four VESA screw holes ViewSonic VA1703w/VA1703wb or your local dealer. -
Page 10: Using The Lcd Display
LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow ViewSonic VA1703w/VA1703wb for 10 seconds. If any buttons are again for 10 seconds. -
Page 11: Adjusting The Screen Image
Also a shortcut to Auto Image Adjust. Displays the Main Menu or exits the control screen and saves adjustments. ViewSonic VA1703w/VA1703wb Main Menu with OSD controls Front Control Panel shown below in detail Power light Green = ON Orange = Power Saving... - Page 12 (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VA1703w/VA1703wb The line at the bottom of the screen shows the current functions of buttons 1 and 2: Exit or select the Brightness control.
-
Page 13: Main Menu Controls
9300K-Adds blue to the screen image for cooler white (used in most office settings with fluorescent lighting). 6500K-Adds red to the screen image for warmer white and richer red. 5400K-Adds green to the screen image for a darker color. ViewSonic VA1703w/VA1703wb and down buttons. - Page 14 Information displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic instructions on changing the resolution and refresh rate (vertical frequency). NOTE: VESA 1440 x 900 @ 60Hz (recommended) means that the resolution is 1440 x 900 and the refresh rate is 60 Hertz.
- Page 15 Memory Recall returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. Exception: This control does not affect changes made with the User Color control, Language Select or Power Lock setting. ViewSonic VA1703w/VA1703wb...
-
Page 16: Other Information
Preset Timing Mode (pre-adjusted to VESA Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. Macintosh computers older than G3 require a ViewSonic ViewSonic. ViewSonic VA1703w/VA1703wb 17”... -
Page 17: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic Control buttons do not work • Press only one button at a time. -
Page 18: Customer Support
United States www.viewsonic.com Canada www.viewsonic.com Latin America www.viewsonic.com (Mexico/Chile) United Kingdom www.viewsoniceurope.com/uk Europe, Middle East, Baltic countries, and www.viewsoniceurope.com North Africa Australia/New Zealand www.viewsonic.com.au Singapore/Malaysia/ www.ap.viewsonic.com Thailand South Africa and www.ap.viewsonic.com other countries India www.in.viewsonic.com Hong Kong www.hk.viewsonic.com Macau www.hk.viewsonic.com Korea www.kr.viewsonic.com... -
Page 19: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. • ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol- based cleaners. ViewSonic VA1703w/VA1703wb... -
Page 20: Limited Warranty
How long the warranty is effective: ViewSonic LCD displays are warranted for 3 years for all parts including the light source and 3 years for all labor from the date of the first consumer purchase.
