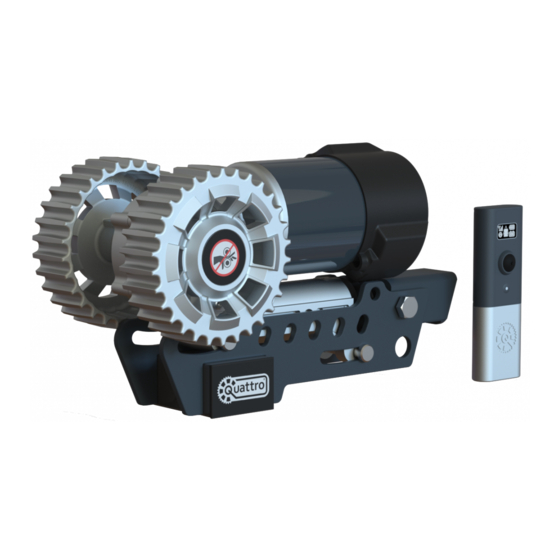

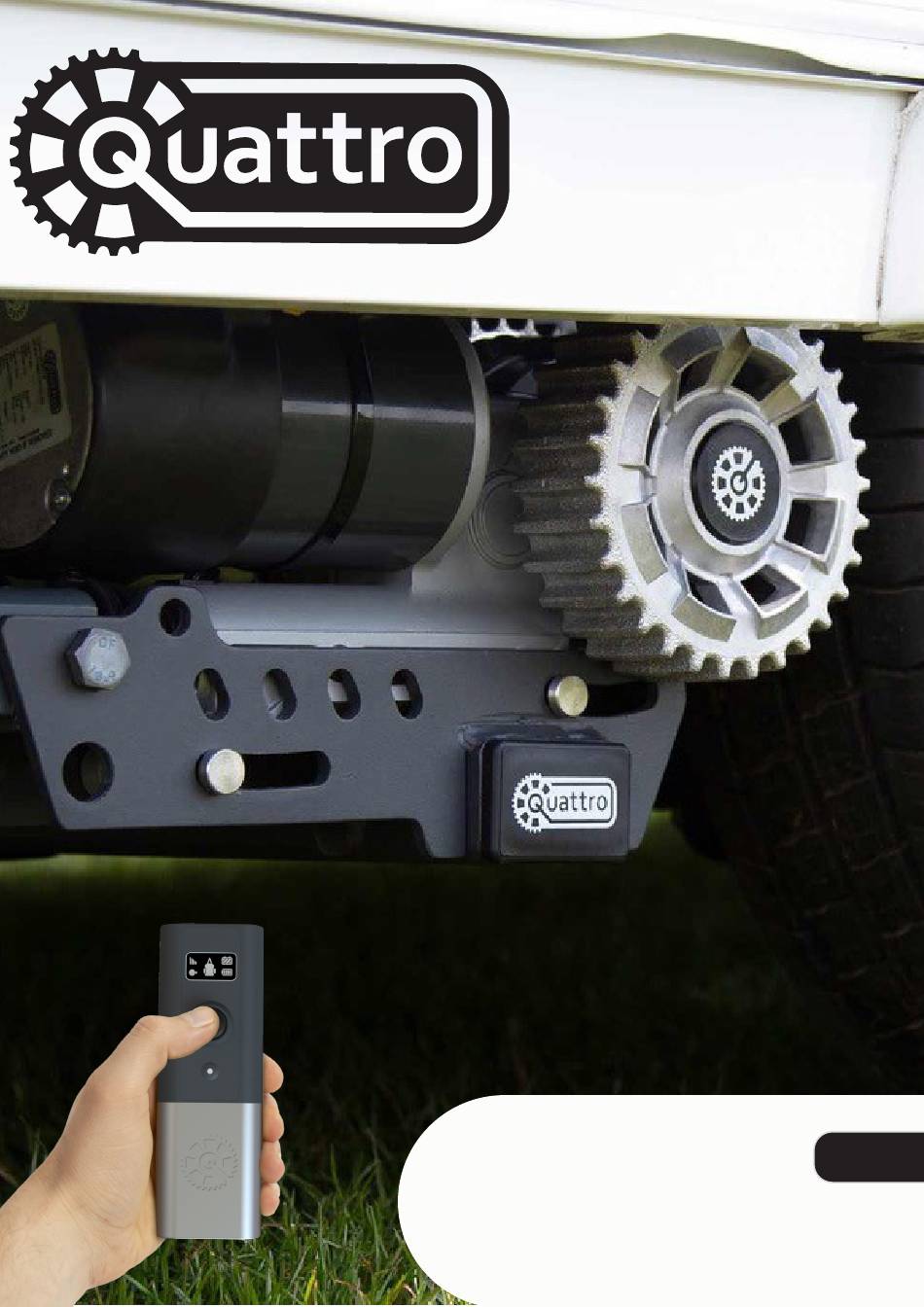

- Page 1 Model No. Quattro Diamond (Q600) Model No. Quattro Platinum (E500) Model No. Quattro Manual Movers REMOTE CARAVAN MOVER Electronics installation guide, user information and troubleshooting REF: SW v1.1...
- Page 2 Quick Start Guide IT IS STRONGLY RECOMMENDED THAT THE ENTIRE MANUAL IS READ AND UNDERSTOOD BEFORE OPERATING YOUR MOVER, THIS ENSURES PROPER SETUP AND SAFE USE. THIS QUICK START GUIDE PAGE ACTS AS A QUICK POINT OF REFERENCE FOR THE REGULARLY USED FUNCTIONS OF THE HANDSET. Power On Fig.1 1.
- Page 3 Fig.A Fig.1 Fig.2 Fig.3...
- Page 4 Fig.4 Positive Wire Negative Wire AUTO MODEL ONLY AUTO MODEL ONLY FUSE ISOLATION KEY Caravan Front Table of Contents Installation - Electrical/Electronic Components Page 3 Operation Safety Guidelines Page 4 Operation - First Use Pages 4/5 Operation - Remote Control Handset First Use Page 5 Operation - Setup &...
- Page 5 ‘A’ frame. Please refer to Table.B (below) for installation of the motor units to the REAR of the axle. Note: If you are fitting two sets of motors onto a twin-axle caravan to form a AWD Quattro system refer to the wiring diagrams on pages 9 & 10 of this manual to ensure rear axle is correctly wired.
- Page 6 Install the Isolation Switch (29) between the battery and the Control Unit on the positive (+) cable, use two of the 8mm Battery Terminal Connectors (22) to link the cable to the switch terminals. Nuts and bolts are provided to mount the switch but please substitute as necessary if they are not of a suitable type.
- Page 7 (Fig.2 - Installation Manual) A: Drive Roller B: 12V Motor C: Connection Terminals (+ and -) D: Base Unit E: Drive Unit F: Gear Housing Always ensure that you are close enough to engage the caravan’s handbrake when manoeuvring on uneven terrain and gradients/slopes in case of mechanical failure. Do not use the mover as a brake, when you have finished manoeuvring always engage the caravan’s handbrake, and disengage the movers when not in use.
- Page 8 10cm of control box. Once successfully paired the handset will return to the home screen. Axle Mode Selection - By default Quattro systems are set to work in single axle mode, if installed as a twin axle or AWD system this setting should be changed to suit.
- Page 9 (Fig.5 of installation manual). Operation - Shutdown procedure & battery replacement Turn off isolation key to cut power to the Quattro control box. To turn off the handset double-press multifunctional button (Fig.1C) twice.
- Page 10 Diagnostic settings menu icon. On the top face of the Quattro control box, under the Quattro logo are two small LED light indicators. If you are having an issue with your mover system, refer to the guide below to help identify the possible fault.
- Page 11 AWD - Front axle wiring Fig.4 Positive Wire Negative Wire AUTO MODEL ONLY AUTO MODEL ONLY FUSE ISOLATION KEY Caravan Front Page 9...
- Page 12 AWD - Rear axle wiring Fig.5 Positive Wire Negative Wire AUTO MODEL ONLY AUTO MODEL ONLY ISOLATION KEY FUSE Caravan Rear Quattro Diamond: The upper connector on each motor is always negative (black), while the lower is positive (red). Page 10...
- Page 13 AWD - Setup Refer to the table below, alongside Fig.4 and Fig.5 to wire the AWD system correctly. Note that if any part of the system is wired incorrectly it could cause damage to the movers or caravan tyres if all rollers do not move in the correct directions. AWD - FRONT AXLE FITTING AWD - REAR AXLE FITTING Table .
- Page 14 Product Registration & Guarantee Please register your Quattro caravan mover online within 14 days of purchase to benefit from our 7 year ® warranty. Registration is quick and simple, go to www.purpleline.co.uk/product-registration. Please retain your original purchase receipt. Please fill in the Serial Numbers + additional information and retain this manual for future reference.
- Page 15 Purple Line Ltd, Unit 1, Peninsula Business Centre, Wherstead, Suffolk IP92BB Web: www.quattromover.com Tel: +44 (0)1473 601200 Email: info@purpleline.co.uk...
