LYNDALE SWIVEL ROCKER
IMPORTANT ASSEMBLY INSTRUCTIONS
When using the furnishing, basic precautions should always be followed, including the
following:
Read all instructions before assembling or using the Lyndale Swivel Rocker.
Use the furnishing only for its intended use as described in these instructions.
42479 REV A 09.06.17
Assembly Instructions For:
LSR-CA & LSR-CS
SAVE THESE INSTRUCTIONS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Outdoor GreatRoom Company LYNDALE SWIVEL ROCKER LSR-CA
Summary of Contents for Outdoor GreatRoom Company LYNDALE SWIVEL ROCKER LSR-CA

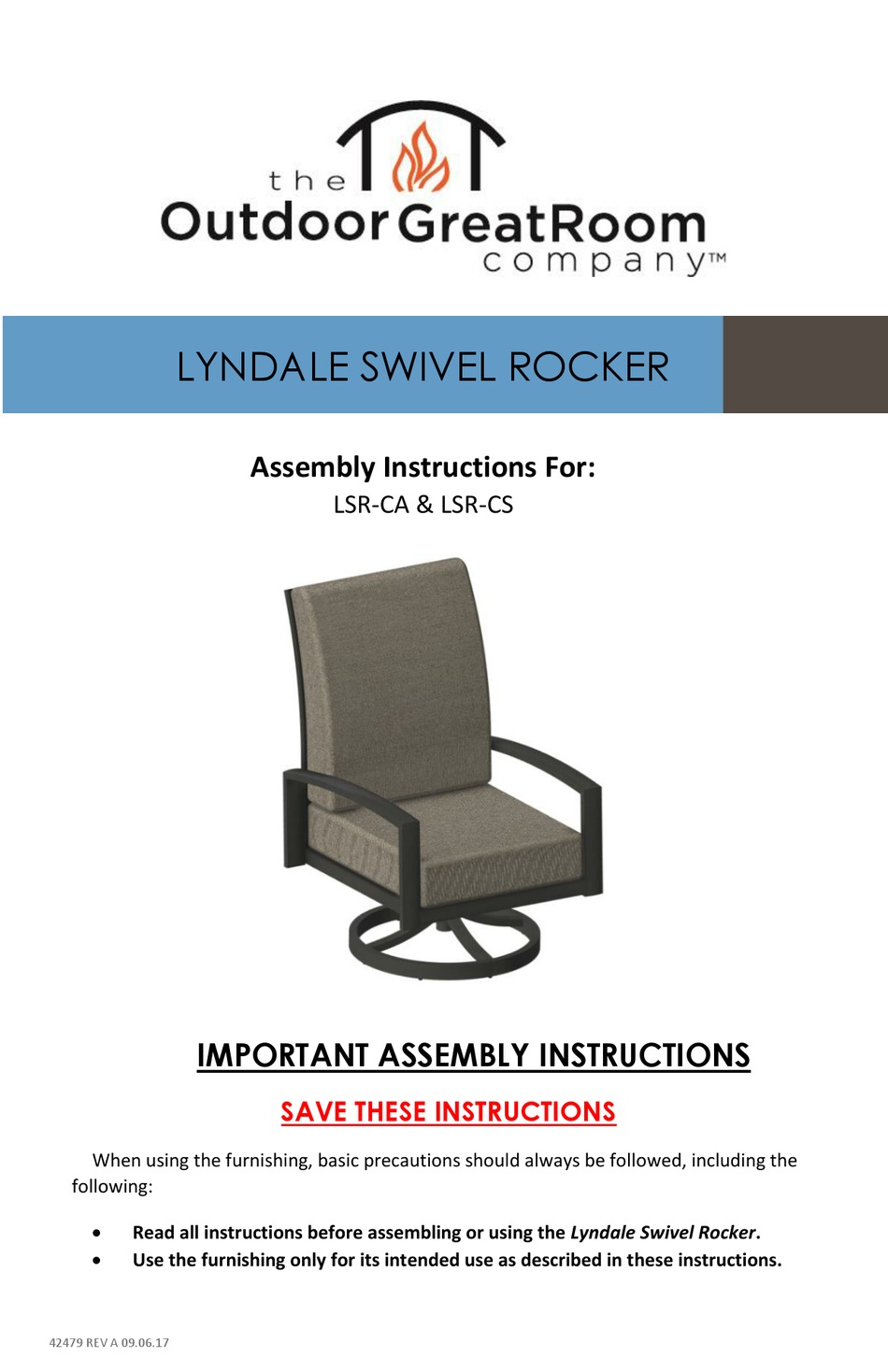

- Page 1 LYNDALE SWIVEL ROCKER Assembly Instructions For: LSR-CA & LSR-CS IMPORTANT ASSEMBLY INSTRUCTIONS SAVE THESE INSTRUCTIONS When using the furnishing, basic precautions should always be followed, including the following: Read all instructions before assembling or using the Lyndale Swivel Rocker. ...
- Page 2 INCLUDED PARTS Bolt 5/16 * 1.575” (8X) J – Nut (8X) Seat Cushion (2x) Flat Washer (16X) Chair Seat (2X) • LSR-CS-RC • LSR-CA-RC Lock Washer (8X) Metal Plate (8X) Chair Base (2X) Back Cushion (2x) Bolt Cover (8X) • LSR-CS-RC •...
- Page 3 Insert bolts (F) through flat washer (H), the metal plates (I), support bar, spring plate and the metal plates (I) as showed in the diagram. Secure bolts with flat washers (H), lock washers (G), and nuts (J). The support bar and spring plate should be sandwiched in between the metal plates (I).
