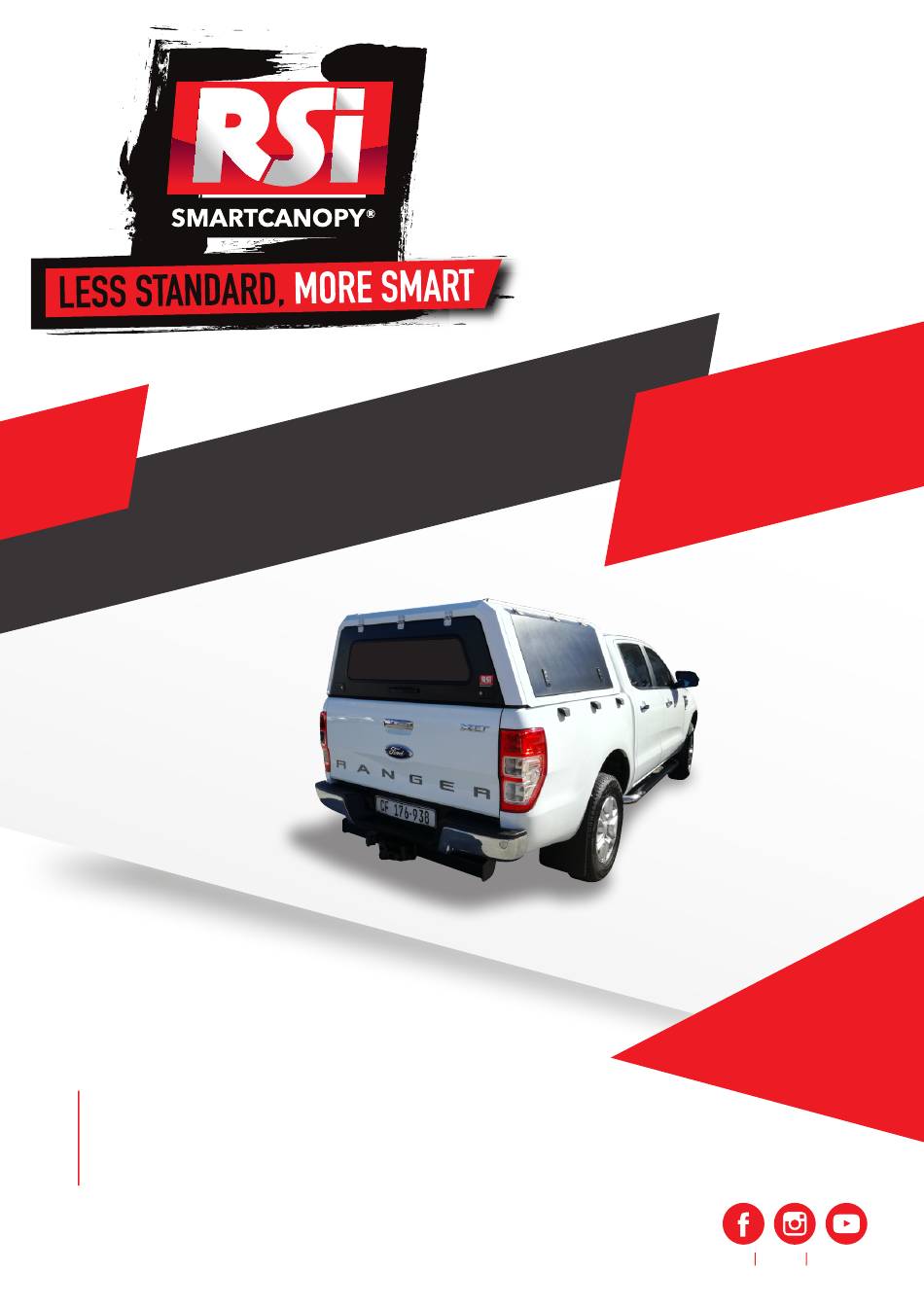

- Page 1 FITMENT INSTRUCTIONS FORD RANGER DOUBLE CAB FORD RANGER SINGLE CAB FORD RANGER SUPER CAB PLEASE ENSURE TO READ FITMENT INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL. LIKE SHARE FOLLOW...
- Page 2 FITMENT KIT CONTENTS FITMENT KIT CONTENT (HARDWARE) DESCRIPTION EXAMPLE Set Screw M8 x 30 Set Screw M6 x 20 M8 Nyloc Nut M6 X 16 Flat Washers M6 Spring Washer M8 X 20 Fender Washers M8 Spring Washer 5mm Foam Strip 4.5mm Rubber Pad (Front) 4.5mm Rubber Pad (Rear) M8 Stainless Steel Weld Nuts...
- Page 3 FITMENT KIT CONTENTS & REQUIRED TOOLS FITMENT KIT CONTENT (COMPONENTS) DESCRIPTION EXAMPLE Front Mount Bracket Left Front Mount Bracket Right Rear Mount Bracket Left Rear Mount Bracket Right Front Load Spreader Plate REQUIRED TOOLS CATEGORY TOOLS EXAMPLE NO. 10 Socket Socket Wrench &...
- Page 4 2. ONLY USE THE HARDW ARE PROVIDED IN THE FITMENT KIT OUTLINED ON THE PAGE BEFORE 3. HANDLE ALL RSI SMARTCANOPY FITMENT COMPONENTS WITH CARE UPON UNPACKING. 4. IT IS RECOMMENDED THAT THE MINIMUM OF FOUR PEOPLE ARE USED TO LIFT THE RSI SMARTCANOPY. WARNING 5.
- Page 5 FITMENT OF THE RSI SMARTCANOPY TO VEHICLE 1. POSITION THE REAR MOUNT BRACKET LEFT HAND IN THE REAR LEFT HAND CORNER OF THE LOAD BIN. STEP 2. USE TWO M8 X 30 SET SCREWS WITH M8 SPRING WASHERS AND M8 X 20 FLAT WASHERS TO LOOSELY SCREW THE BRACKET TO THE FRONT OF THE LOAD BIN.
- Page 6 INDICATED BELOW. 2. USE SIX M8 X 30 SET SCREWS WITH TWELVE M8 FLAT WASHERS AND SIX M8 NYLOC NUTS TO LOOSELY FASTEN THE RSI SMARTCANOPY TO THE FRONT MOUNT BRACKETS THROUGH THE LOAD SPREADER PLATES. SEVEN 3. USE TWO M8 X 30 SET SCREWS WITH FOUR M8 FLAT WASHERS AND TWO M8 NYLOC NUTS TO LOOSELY FASTEN THE RSI SMARTCANOPY TO THE REAR MOUNT BRACKETS.
- Page 7 FITMENT OF THE RSI SMARTCANOPY ONLY REQUIRED WHEN FITTING ROOF MOUNTED ACCESSORIES STEP EIGHT 1. SLIDE M8 WELDNUTS INTO ROOF RAILS. 2. BOLT ROOF MOUNTED ACCESSORIES TO THE WELDNUTS CLAMPING THE ACCESSORIES DOWN. M8 WELD NUTS SLIDE INTO ROOF RAILS WHEN BOLTING ROOF MOUNTED ACCESSORIES.
