Summary of Contents for PulseTec NANO 320 DC

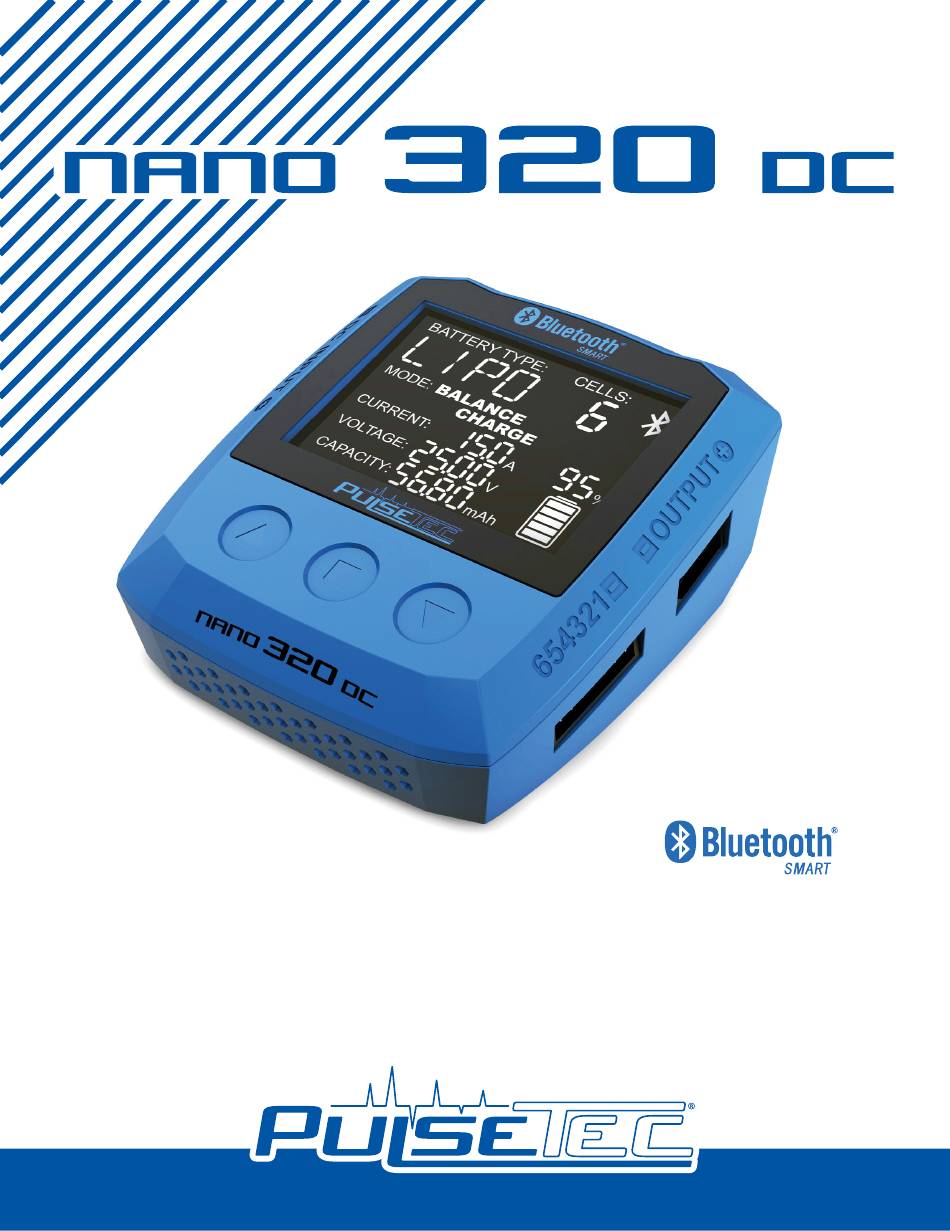

- Page 1 INSTRUCTION MANUAL #PC-020-003...
-
Page 2: Table Of Contents
Table Of Contents Introduction .........................1 Special Features......................3 Warning And Safety Notes ..................4 Operation Program .....................7 Error Message ......................12 Controlling the Charger Using the App ..............13 Specification ......................18 Regulatory Information .....................19 Commonly Used Terms ....................20 Warranty and Service ....................21 WARNING This charger is not intended for use by persons (including children) with reduced phys- ical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Introduction
Introduction Congratulations on your choice of PULSETEC NANO 320 DC. The operation and UI has been optimized to be hassle-free for basic usage. Being app-enabled, the user experi- ence can be largely expanded, more features and advanced settings are provided within the free app. - Page 4 Introduction Please read this manual carefully before use. This manual contains important information on the safe use of this charger. If you are a beginner in battery charging, please use this charger with an experienced user. LCD-Display DE CREASE Button START / STOP Button DC Input : 9-32V...
-
Page 5: Special Features
Special Features Adaptable to Various Types of Batteries The charger is adaptable to various types of batteries, such as LiPo, NiMH, Pb and the lastest LiHV batteries. Terminal Voltage Control(TVC) The charger allows user to change the end voltage. (for expert user only) Smart Phone Control via Bluetooth (both iOS and Android) The charger can be operated with a smart phone via Bluetooth connection. -
Page 6: Warning And Safety Notes
Warning and Safety Notes These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be dam- aged or at worst it can cause a fire. ● Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual. - Page 7 Warning and Safety Notes ● Never attempt to charge or discharge the following types of batteries. A battery pack which consists of different types of cells (including different manufacturers). A battery that is already fully charged or just slightly discharged. Non-rechargeable batteries (Explosion hazard).
- Page 8 Warning and Safety Notes Attention should be paid to the connection of lithium battery. Do not attempt to disassemble the battery pack arbitrarily. Please get highlighted that lithium battery packs can be wired in parallel and in series. In the parallel connection, the battery s capacity is calculated by multiplying single battery capacity by the number of cells with total voltage stay the same.
- Page 9 Power Supply and Pb Battery Connection IMPORTANT NOTICE To take advantage of the charger full power capability, the power source should be 9-32V DC, and output power should be capable of 380W or higher. Low quality DC power source may damage your charger. Pb Battery Connection.
-
Page 10: Operation Program
Operating Program 2. Connecting the Battery Battery Type Battery Cells Mode Current Percentage Battery Voltage Capacity Battery Type: select the chemistry of the battery to be processed. Cells: select how many cells of the battery to be processed. Mode: select which process the charger will run. Current: select the current of charge/ discharge process. - Page 11 Operating Program 3. Battery Type Setting Press button, the BATTERY TYPE will blinking. Then Press button to select the correct Battery Type. 4. Battery Cells Setting Press button, the BATTERY CELLS will blinking. Then Press button to select the correct Battery Cells. 5.
- Page 12 Operating Program 6. Charge Current Setting Press button, the CURRENT will blinking. Then Press button to select the Charge Current. 7. Program START Press and Hold button for 3 seconds to START the program. 8. Program STOP During the charging process, press button, to STOP the charging process.
- Page 13 Lithium Battery Program (LiPo/LiFe/LiIon/LiHV) CHARGING PROGRAM Depends on different battery type, the operation programs are different. BATT OPERATION DESCRIPTION TYPE PROGRAM This charging mode is for charging LiPo/LiFe/LiIon/LiHV CHARGE battery in normal mode. DISCHARGE This mode is for discharging LiPo/LiFe/LiIon/LiHV battery. LiPo Lilon This program is for charging or discharging lithium battery...
-
Page 14: Error Message
Lithium Battery Program (LiPo/LiFe/LiIon/LiHV) No battery attached. The cell number is wrong. The battery voltage is higher than the maximum voltage which the user sets when charging in balance mode. Balance port voltage error. Battery is full. Incorrect polarity connected. The internal temperature of the unit goes too high. -
Page 15: Controlling The Charger Using The App
Setting the Charger with the PULSETEC app The Bluetooth connectivity allows the user to control and monitor the NANO 320 DC com- fortably through an app on a portable device such as smartphone or tablet. The iOS app can be downloaded from ‘App Store’, the Android app from ‘Google Play Store’. Operation of the app is self-explanatory and the same on iOS and on Android. - Page 16 Setting the Charger with the PULSETEC app How to reset password B A T T / P R O G R A M Press ENTER Button. S Y S T E M S E T T I N G - >...
- Page 17 Setting the Charger with the PULSETEC app 3). How to use Memory Program Pulsetec Pulsetec Pulsetec Edit BACK Battery Battery Operation Battery Battery Operation Type Cells Mode Type Cells Mode BAL.CHARGE BAL.CHARGE LiPo LiPo LiIon CHARGER LiIon CHARGER LiFe DISCHARGER...
- Page 18 Enter into System Setting 5). SCAN TO GO A very unique feature of NANO 320 DC is SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident.
- Page 19 Setting the Charger with the PULSETEC app How to Print the QR Code Pulsetec Pulsetec Pulsetec LiP o BAL.CHAR GE Cells： 6 Charge Curretn： 5.0A 5.0A Voltage：4.20V Gallery Save the QR Press the QR code Open Gallery code to Gallery...
-
Page 20: Specification
Specification • • DC Input Voltage: ..9-32V Display Backlight: ..Black • • Display Type: ...LCD Controls: ..Three Buttons •... -
Page 21: Regulatory Information
Declaration of Conformity TCRP INTERNATIONAL LLC Ltd declares under sole responsibility that the battery charger NANO 320 DC to which this declaration relate, conforms with the following LVD standards; TEST STANDARDS TITLE Electromagnetic compatibility – Requirements EN55014-1: 2006+ for household appliances, electric tools and simi- A1: 2009+A2: 2011 lar apparatus –... -
Page 22: Commonly Used Terms
Unless otherwise required by law, PULSETEC is in no way whatever liable to provide compensation for damages arising from the improper use of the model (including personal injury, death, damage to buildings, loss of turnover, loss of business, or interruption of business, or any other direct, or indirectly caused, consequential damage). -
Page 23: Warranty And Service
This manual is protected by a copyright. Any publication, transmission or commercial use of this manual is prohibited without written permission. PULSETEC and TCRP INTERNATIONAL LLC Ltd assumes no responsibility for printing errors in this manual. This manual is subject to technical changes. - Page 24 TCRP INTERNATIONAL LLC Ltd 21B Moskovska Street. Floor 3 • 1000 Sofia - Bulgaria info@tcrp-intl.com - www.pulsetec.eu...
