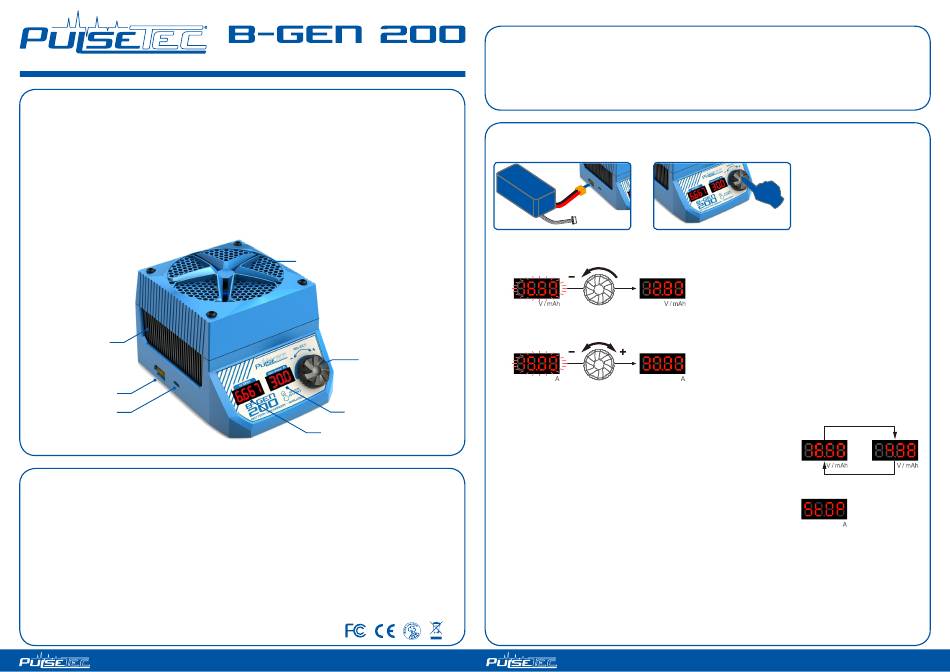

PulseTec B-GEN 200 Instruction Manual

INTRODUCTION
Thank you for choosing the PULSETEC Battery Discharger & Analyzer
is a powerful discharging device that allows the user to discharge a battery at up to 30 amps or 200
watts and also measures and compares the performance of batteries.
measurement of battery capacity and takes the guesswork out of choosing the best battery for your
application.
The B-GEN 200 is much more than a simple battery discharger or a battery load tester. It will test virtually
any type or size of battery, any chemistry or number of cells, up to 35 volts.
The B-GEN 200 is ruggedly built and uses XT60 connector for battery connection. It is small with a high
performance cooling system. Digital LED indicates battery voltage, discharge capacity and discharge
current.
Heat Sink
XT-60 Battery Port
DATA Link
SPECIFICATIONS
Accepted Voltage Range : . . . . . . 5,40 - 35,00V
Low Voltage Alert : . . . . . . . . . . . . . . . . . . .<5,2V
High Voltage Alert : . . . . . . . . . . . . . . . . . . . >35V
Max Discharge Power : . . . . . . . . . . . . . . . .200W
Discharge Current range : . . . . . 0,01A - 30,00A
Current consumption in Sleep Mode . . . <100uA
Standby Current : . . . . . . . . . . . . . . . . . . <35mA
Current Display Accuracy: . 0.01-10.00A ±60mA
10.00-30.00A ±2%
INSTRUCTION MANUAL
B-GEN 200. The B-GEN 200
B-GEN 200 allows for the precise
Cooling Fan
ROTARY DIAL
for Setting Cut-off Voltage
Discharging Current
Start/Stop Button
Current Display (A)
Battery Voltage / Capacity
Display (mAh)
Voltage Display Accuracy: . . . . . 5.4-10V ±60mV
10-20V ±120mV
20-35V ±160mV
Capacity Display Accuracy : . . . . . . . . . . . . . ±3%
Dimension : . . . . . . . . . . . . . . . . 136x105x96mm
Weight : . . . . . . . . . . . . . . . . . . . . . . . . . . . . 858g
1
FEATURES
•
It displays real time battery voltage, discharged capacity and discharge current.
•
#PC-022-001
It can test battery capacity that helps select batteries with desired capacity.
•
It saves time when user wishes to store their large capacity batteries.
•
It helps activate the best performance of your batteries for competition.
FEATURES
1- BATTERY CONNECTION
3- SELECT CUT-OFF VOLTAGE AND DISCHARGE CURRENT
The LED(V/mAh) shows the current battery voltage.
By rotating the Dial button to change cut-off voltage, then press Dial button once to confirm.
Use the Dial button to modify the discharge current
4- START DISCHARGING PROCESS
Press and hold Dial button for 2 seconds, the discharger will start
with beep sound.
During the discharging process, the digital LED(V/mAh) will alternate
the display of battery voltage and discharging capacity.
5- STOP DISCHARGING PROCESS
During the discharging process, Press the dial once to stop the
discharging process, the digital LED(A) shows "Stop".
5- PROCESS FINISHED
When the discharging process has finished, the discharger will beep
5 times, and the LED(V/mAh) will show battery voltage and discharge
capacity respectively.
2- POWER ON
Press the Dial once to power
ON the discharger, the LED
(V/mAh) will blink with beep
sound.
2
