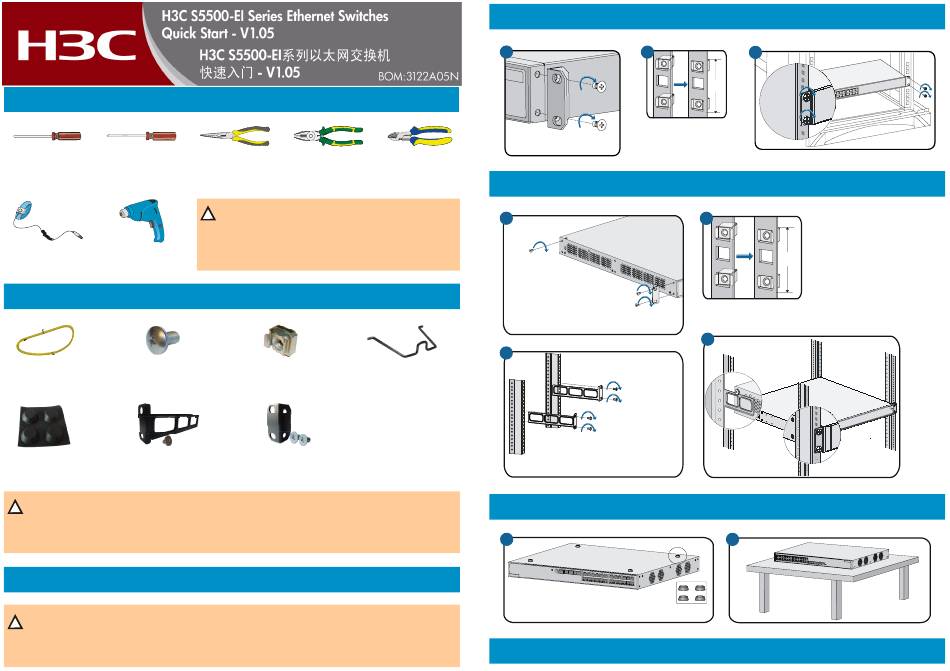

H3C S5500-EI Series Quick Start

Tool list 工具参考
Flathead screwdriver Phillips screwdriver
一字螺丝刀 十字螺丝刀
ESD-preventive wrist strap Blow dryer
防静电腕带 热吹风
Introduction to installation accessories 安装附件介绍
Grounding cable M6 screw (User supplied)
M6螺钉（请用户自备）
地线
Rear mounting bracket and
Rubber pads
load-bearing screw
胶垫贴
后挂耳和承重螺钉
Before installation, wear an ESD-preventive wrist strap, and make sure that the wrist strap
has a good skin contact and is well grounded. 在以下安装交换机的过程中，操作者需佩
戴防静电腕带，请确保防静电腕带已经正确接地并与皮肤良好接触。
Mounting the switch to a rack 安装交换机到机柜
When the depth of a switch is greater than 300 mm (11.81 in), the front mounting
brackets only secure the switch rather than bear its weight. 当交换机的深度大于300mm
时，前挂耳只对交换机起固定作用，不能用来承重。
Needle-nose pliers Wire-stripping pliers
尖嘴钳 剥线钳
The installation tools are not provided with the
switch. Prepare them by yourself.交换机不随机
提供安装工具，请用户根据实际安装需求自己
准备安装工具。
Cage nut (User supplied)
浮动螺母（请用户自备）
Front mounting bracket
and M4 screws
前挂耳和M4螺钉
Method 1—Using only front mounting brackets 仅使用前挂耳安装
1
Install front mounting brackets
安装前挂耳
Diagonal pliers
斜口钳
Method 2—Using front and rear mounting brackets 前挂耳和后挂耳配合安装
1
Install the load-bearing
screw 安装承重螺钉
3
Bail latch
电源线卡钩
Mount the rear mounting brackets to
the square holes on the rear post of
the rack安装后挂耳到机柜后方孔条
Mounting the switch to a workbench 安装交换机到工作台
1
Stick the rubber pads to the appropriate
positions on the switch bottom
粘贴脚垫到交换机底部
Connecting the grounding cable 连接保护地线
2
3
1U
Install cage nuts to the square
holes of the rack
安装浮动螺母到机柜方孔条
2
Install the front mounting
bracket 安装前挂耳
4
2
Install cage nuts to the square
1U
holes of the rack
安装浮动螺母到机柜方孔条
