James Loudspeakers CDI2|300 Manual

CDI2|300 / CDI2|600 / CDI2|1200
Every CDi amp is preprogrammed with presets that will cover most James Loudspeaker installations. The CDi should power up with the preset needed
with your order.
Preset # (Display Name)
Preset 1: (DSP OFF)
Preset 2: (STE FR) — Stereo Fullrange
Preset 3: (MN BI 60HZ) — Mono bi-amp 60Hz
Preset 4: (MN BI 80HZ) — Mono bi-amp 80Hz
Preset 5: (MN BI 100HZ) — Mono bi-amp 100Hz
Preset 6: (SATS 60HZ) — Stereo Sats 60Hz (Additional Sub Amp Required)
Preset 7: (SATS 80HZ) — Stereo Sats 80Hz (Additional Sub Amp Required)
Preset 8: (SATS 100HZ) — Stereo Sats 100Hz (Additional Sub Amp Required)
Preset 9: (SUBS 60HZ) — Stereo Subs 60Hz (Additional Sat Amp Required)
Preset 10: (SUBS 80HZ) — Stereo Subs 80Hz (Additional Sat Amp Required)
Preset 11: (SUBS 100HZ) — Stereo Subs 100Hz (Additional Sat Amp Required)
Preset 12: (109AT70) — System Fullrange
Preset 13: (129AT70) — Stereo Sats 80Hz
Preset 14: (159AT70) — Stereo Sats 80Hz
Preset 15: James Loudspeaker Custom Order Preset
DSP Presets and Processes

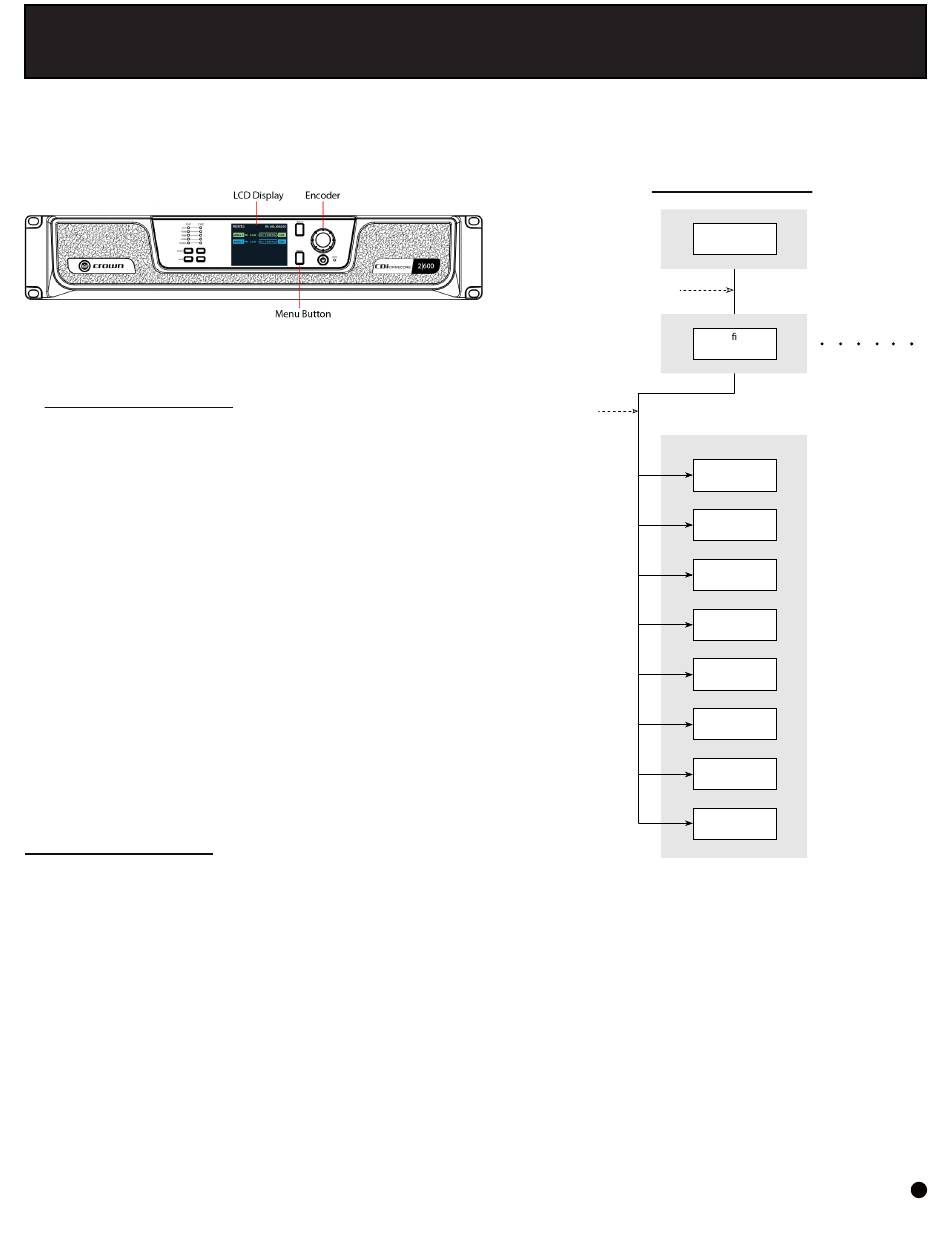

Figure 1.1 shows the LCD screen and the two Menu
navigation buttons: MENU, and Encoder.These controls
let you step through the menu items,displayed on the
screen, and select the user presets.
USER PRESETS can be configured with custom settings through the LCD screen. When the amplifier is powered off and back on,
the settings will be as they were when you shut off the amplifier. However, If you recall a user preset, all custom settings will be
lost - unless the presets were saved using the System Architect software ( a free download from www.harmanpro.com). Custom
settings cannot be saved by the front panel display, only by using the System Architect software.
The ICONS in the display illuminate to show which DSP functions are currently in use for each preset.
Figure 1.1
PRESET GUIDE
Preset Menu Tree
HOME
Home Screen
Press MENU Button
Con gure
Select from list
using ENCODER*
CONFIGURE AMPLIFIER MENU
Guided Setup
Amp Wiring
(Y, Bridge)
Input Source
Output Mode Amp Wiring
(70V / 100V) (Y, Bridge)
Speaker Tunings /
Output Fader
Save Preset
Load Preset
*Turn then press the ENCODER to make selections.
Figure 1.2
Amplif ier
DSP
Linking
+1. 775. 4 61. 75 0 0
www.jam esl o u d sp ea ker. co m
1
