Northwestern Bell Excursion 39765 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Excursion
39765
®
®

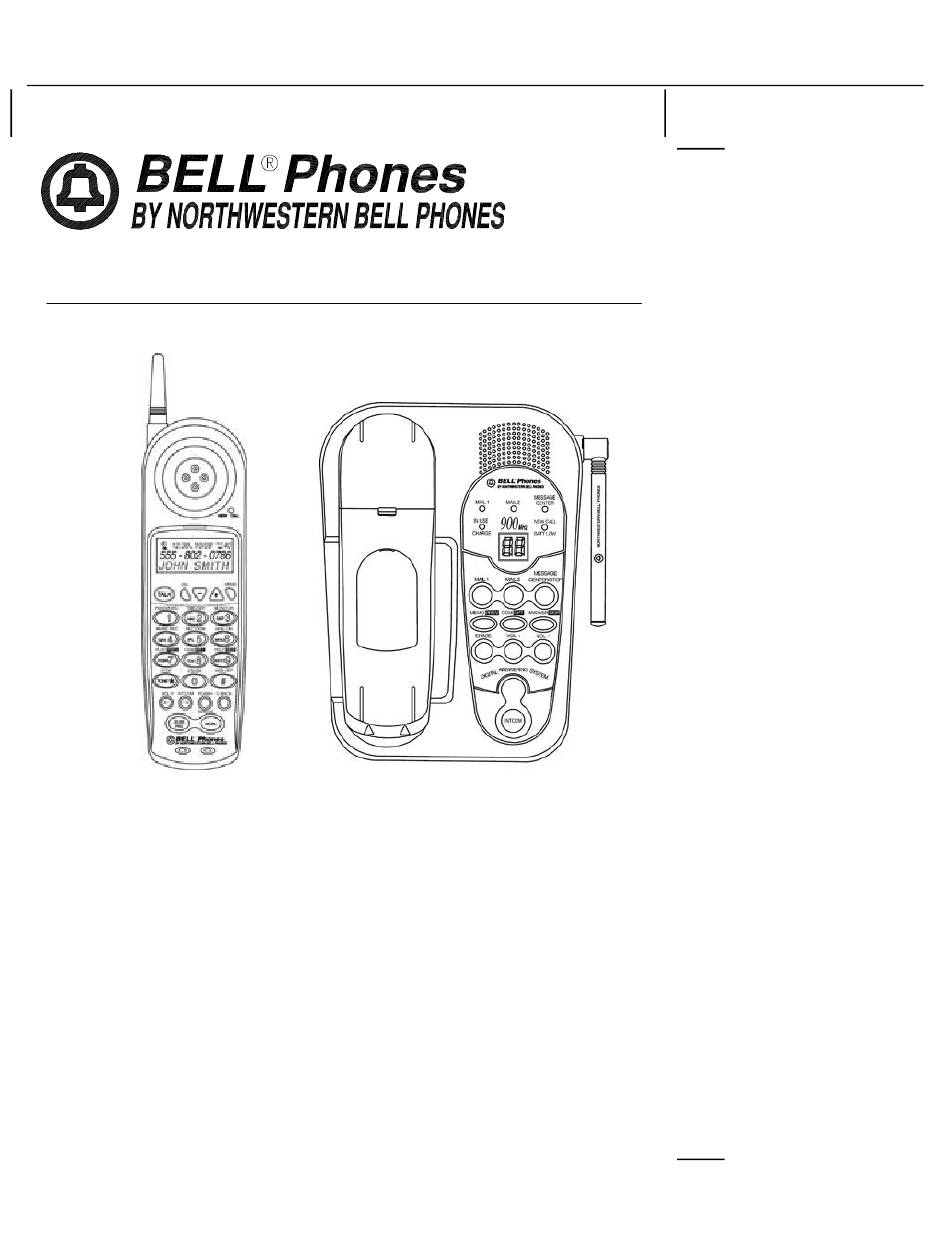

Congratulations on your selection of the Excursion
39765 from Northwestern
Bell Phones. This quality 900MHz cordless telephone All Digital Answering
®
System with Intercom and Call Waiting Caller ID, like all Genuine BELL
products, has been designed to give you many years of continuous service and
represents the best value for your money. It requires little maintenance and is
easy to setup and operate.
1
08099A-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Excursion 39765 and is the answer not in the manual?

Questions and answers

Related Manuals for Northwestern Bell Excursion 39765

Summary of Contents for Northwestern Bell Excursion 39765

  • Page 1 Excursion 39765 ® ® Congratulations on your selection of the Excursion 39765 from Northwestern Bell Phones. This quality 900MHz cordless telephone All Digital Answering ® System with Intercom and Call Waiting Caller ID, like all Genuine BELL products, has been designed to give you many years of continuous service and represents the best value for your money.

  • Page 2: Important Service Information

    IMPORTANT SERVICE INFORMATION Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action.
  • Page 3 CARTON CONTENTS HANDSET BASE UNIT RECHARGEABLE Ni-Cd BATTERY BELT CLIP ADAPTER TELEPHONE LINE WALL MOUNT (DC9V, 500 mA) LINE CORD BRACKET (Short & Long) USER’S MANUAL WARRANTY CARD ACCESSORY ORDER FORM 08099A-1...

  • Page 4: Battery Safety Instruction

    SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning.

  • Page 5: Installation Precautions

    the battery electrolyte may occur causing burns or irritation to eyes or skin. When inserting the batteries into this product, the proper polarity or direction must be observed. Reverse insertion of batteries can cause charging that may result in leakage or explosion. Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the battery could leak in the product.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SERVICE INFORMATION CARTON CONTENTS IMPORTANT SAFETY INSTRUCTIONS BATTERY SAFETY INSTRUCTION INSTALLATION PRECAUTIONS FCC NOTICE CONTROLS’ LOCATION AND FUNCTION HANDSET CONTROLS - Cordless Telephone HANDSET CONTROLS - Answering System BASE UNIT CONTROLS - Cordless Telephone BASE UNIT CONTROLS - Answering System MOUNTING POSITION DESKTOP USE WALL USE...
  • Page 7 REMOTE OPERATION USING THE REMOTE OPERATION FUNCTION REMOTE COMMANDS CALLER ID OPERATION INTRODUCTION TO CALLER ID AND CALL WAITIING ID RECEIVING NEW CALL VIEWING CALL RECORDS AND NEW CALL RECORDS SAVING CALL RECORDS DELETING CALL RECORDS CALLBACK FROM CALL RECORDS PROGRAMMING MODE NEW CALL / MESSAGE INDICATOR TALKING TIME AND CHANNEL DISPLAY...

  • Page 8: Controls' Location And Function

    DESCRIPTION CONTROLS’ LOCATION AND FUNCTION (Figure 1) HANDSET CONTROLS - Cordless Telephone Antenna LCD Display: Shows the phone status, Caller ID Call Record information and function menus. (+) Button: Allows you to enter to your Caller Record list. It is also used to scroll up in Call Record list, memory and program mode.

  • Page 9: Handset Controls - Answering System

    HANDSET CONTROLS - Answering System 12,13 9,10 (Figure 2) PASSWORD Button: Press to change password for remote operation. MEMO REC Button: Press to record MEMO in mailboxes. REC OGM Button: Press to record outgoing messages (OGMs). PLAY Button: Press to playback messages. PREV Button: Press to skip to the previous message during playback.

  • Page 10: Base Unit Controls - Answering System

    TONE / PULSE Switch: Allows you to select the appropriate dialing service. TONE for tone dialing or PULSE for rotary service. Charge Terminals: Used for charging handset battery. Microphone: Used to receive audio signals during conversation at intercom and during recording in answering system mode. INTCOM Button: Used to alert the person near the handset when using two-way intercom feature.

  • Page 11: Mounting Position

    MOUNTING POSITION DESKTOP USE: Install and attach the wall mount bracket onto the bottom of the base at the position as shown in Figure 5. Connect the telephone line cord to the TEL LINE jack on the rear of the base unit and connect the opposite end to the telephone modular jack.

  • Page 12: Connecting The Headset

    CONNECTING THE HEADSET For hands free conversation, a headset (not included) is connected to the headset jack as shown in Figure 9. The handset receiver and microphone are disabled when the headset is connected. (Figure 9) Press the TALK button to answer or place a call using the headset.

  • Page 13: Initial Setup

    (Figure 12) INITIAL SETUP Before you can use your cordless telephone, the handset must be charged for at least 12 hours. See charging instruction in the MAXIMIZING BATTERY LIFE section of this manual. TONE / PULSE SETTING Select the appropriate dialing service by moving the TONE/PULSE switch on the side of the base...

  • Page 14: Telephone Operation

    TELEPHONE OPERATION TO PLACE A CALL IN TALK MODE Press the TALK button on the handset. The LCD Display will show "TALK" and the symbol will flash while the unit auto- scans and will light steadily when it finds a clear channel. (Figure 16) The [M] symbol means that the volume level is medium.

  • Page 15: Deleting Stored Telephone Number

    Example: JOHN 1 Press 5 Press 6 three times Press 4 two times Press 6 two times (Space) Press button two times Press 1 four times Press MEMO to store the name field. The cursor or marker moves to the telephone number line entry. Enter the telephone number you want to store.

  • Page 16: Flash Function

    FLASH FUNCTION • Used to access custom calling features such as Call Waiting or Three-Way Calling provided by your local phone company. Flash can also be used to restore a dial tone to make a new call. CHANNEL SELECTION (40 Channels) AUTO CHANNEL SCAN •...

  • Page 17: Time / Day Stamp

    guide you through key operational procedures. TIME / DAY STAMP ICMs and Memo messages are automatically voice-stamped with the current time and day. NOTE: If the system clock is not set, the unit will announce “The time is OFF” after each message playback. Please refer to the INITIAL SETUP or REMOTE OPERATION section on how to set the system time and day.

  • Page 18: Recording The Ogm

    “This is Mary. Please leave a message after the tone. Thanks!" D. DEFAULT OGM • ® The Excursion 39765 has a built-in default OGM. If you do not record your own OGM(s), the unit will automatically answer incoming calls with the following message: “Please record your message after the beep.” ®...

  • Page 19: Playing Back Messages / Memos

    NOTE: The unit returns to idle state if no mail button is pressed within 10 seconds. RECORDING A MEMO INTO THE MESSAGE CENTER Press and hold the MEMO button. The MESSAGE CENTER LED will turn on. The unit will announce “Please record your message after the beep.”...

  • Page 20: Two - Way Recording

    If you decide to take the call, simply press the TALK button and begin speaking. FROM THE HANDSET (In the Base Unit Cradle) ® When the Excursion 39765 answers a call, you will hear your OGM followed by the caller's message through the speaker. If you decide to take the call, simply pick up the handset.
  • Page 21 5 + Mailbox no.(0,1,2,3) Record Announcement (OGM) Set Answer Mode to ON 7 + Mailbox no. (0,1,2) Playback Message (MEMO, ICM) 8 +Mail box no.(0,1,2,3) Playback Announcement (OGM) Voice Help Menu Stop Function Set Answer Mode to OFF During playback, you can press the following keys: Playback Previous Message Repeat a Message Skip Forward to the Next Message...
  • Page 22 After playback, the unit will then prompt, “Enter next command.” NOTE: If no user OGM is recorded, the unit will say “You have no announcement.” RECORDING A MEMO Press 4 and the unit will prompt “Enter mailbox number.” Press one of the following keys: MEMO Message Center MEMO Mailbox 1 MEMO...
  • Page 23 charge added to your monthly telephone bill for this service. Before using this unit, please read this instruction manual carefully. RECEIVING NEW CALL • When you receive a new call, the call information is stored under CALLER ID Call Record. In standby mode, you can find how many calls and new calls you have.
  • Page 24 is set to 10. set to 10. • • See page on setting the See page on setting the CALLBACK NUMBER. CALLBACK NUMBER. • • 2. The area code of incoming 10 digits 10 digits telephone number is same as neighboring area code. •...
  • Page 25 This is the number of digits to be called back when making a call using the Call Record and when the area code of the incoming telephone number is same as your area code. Refer to Callback Dial Operation. The factory setting is 7 digits. Press SCAN / PRG button.
  • Page 26 LCD DISPLAY SYMBOLS AND MESSAGE Different messages are displayed on the LCD display to indicate the status of the Caller ID. Screen Shown Meaning ALL CALLS and NEW CALLS This message lets you know how many call records and new ALL: 10 NEW: 05 call records you have.
  • Page 27 TALK The handset is ON and ready for you to dial. TALK [ M ] [ M ] means that the volume level is medium. [ L ] for low level and [ H ] for high level. OUT OF RANGE The handset has tried to call but failed or the handset is OUT OF RANGE moved out of range from the base unit in talk mode.
  • Page 28 IMPROVING CORDLESS RECEPTION Follow these guidelines to improve cordless sound quality: • ® Select an area to install the Excursion 39765 where it is closest to the center of your home or office. This will improve the operating range of the unit. •...
  • Page 29 TROUBLESHOOTING SYMPTOMS POSSIBLE SOLUTION / CAUSE • No dial tone Check for the telephone line cord connectors at both ends that they are pushed in firmly until they click. • If you had a power failure or had unplugged the base unit, replace the handset on the base unit for two to five seconds to reset the system.
  • Page 30 connections are secure and connected. • If you pick up the phone before the second ring, the caller information will not be correctly received. If you have telephone answering device (TAD) connected with the unit, set the TAD to answer after two ring s or more. •...
