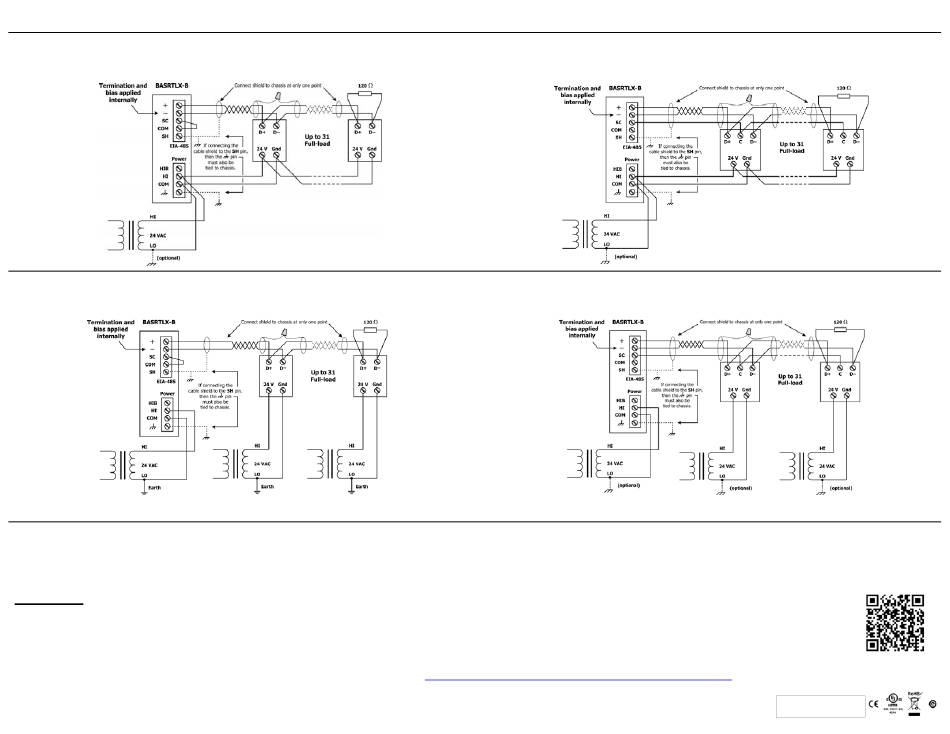

MS/TP Physical Layer Connection Options
For MS/TP devices that share a power source with the BASRTLX-B
2-wire MS/TP Bus with Shared Power Source
For MS/TP devices that use a power source separate from the BASRTLX-B
2-wire MS/TP Bus with Separate Power Sources
Web Page Configuration
The BASrouterLX is web page configurable using recent versions of most standard web browsers. To configure the router initially, connect it to a PC using an Ethernet cable
and set the PC's IP and subnet mask in Local Area Connection –> Properties. In the Internet Protocol Version 4 (TCP/IPv4) settings of your Windows PC, specify an IP
address and a Subnet mask in the same subnet as the BASrouter (e.g. 192.168.92.5 /24).
BASrouterLX's factory-programmed: Default IP address is 192.168.92.68 and a Class C subnet mask of 255.255.255.0 (/24). User Name is: admin and Password is: admin
ATTENTION: The default login credentials must be changed before the BASrouterLX can be used or its system configuration altered. Please
change the username to an 8-63 character alphanumeric value (at least one letter and one number), and the password to an 8-63 character
alphanumeric and the optional special characters allowed (~!@#%^+[ ]{ }_) value. This ensures authorized access to the router only.
Reset IP switch is located on the front, underneath Power LED. Press and hold the Reset IP button using a paper clip for at least 5 seconds while
the router is powered. Remove power and restore power again to complete the reset IP, User ID, and Password procedure to factory-programmed defaults. For complete
details on BASrouterLX, please download our BASrouterLX. User Manual at:
More Information.
