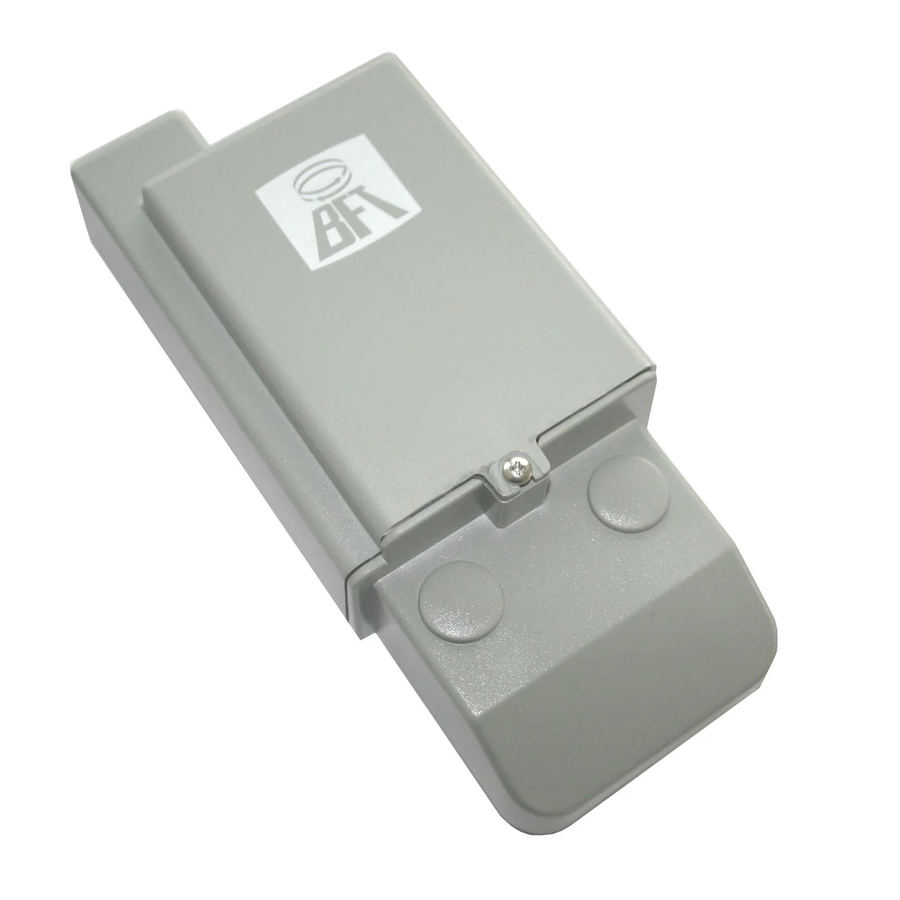

BFT Clonix 2E Programming Manual

Hide thumbs Also See for Clonix 2E:

Assembly of your receiver:

1. Unplug your motor. Verify that you have a 12V or 24V feed with an alternating or direct

current. Connect the feed between the "–" and "+" terminals (you don't have to respect any

direction if the feed is alternating). If the feed is stronger, you will have to install an adapter.

2. Connect the first channel between the CH1 terminals.

3. Connect the second channel between the CH2 terminals.

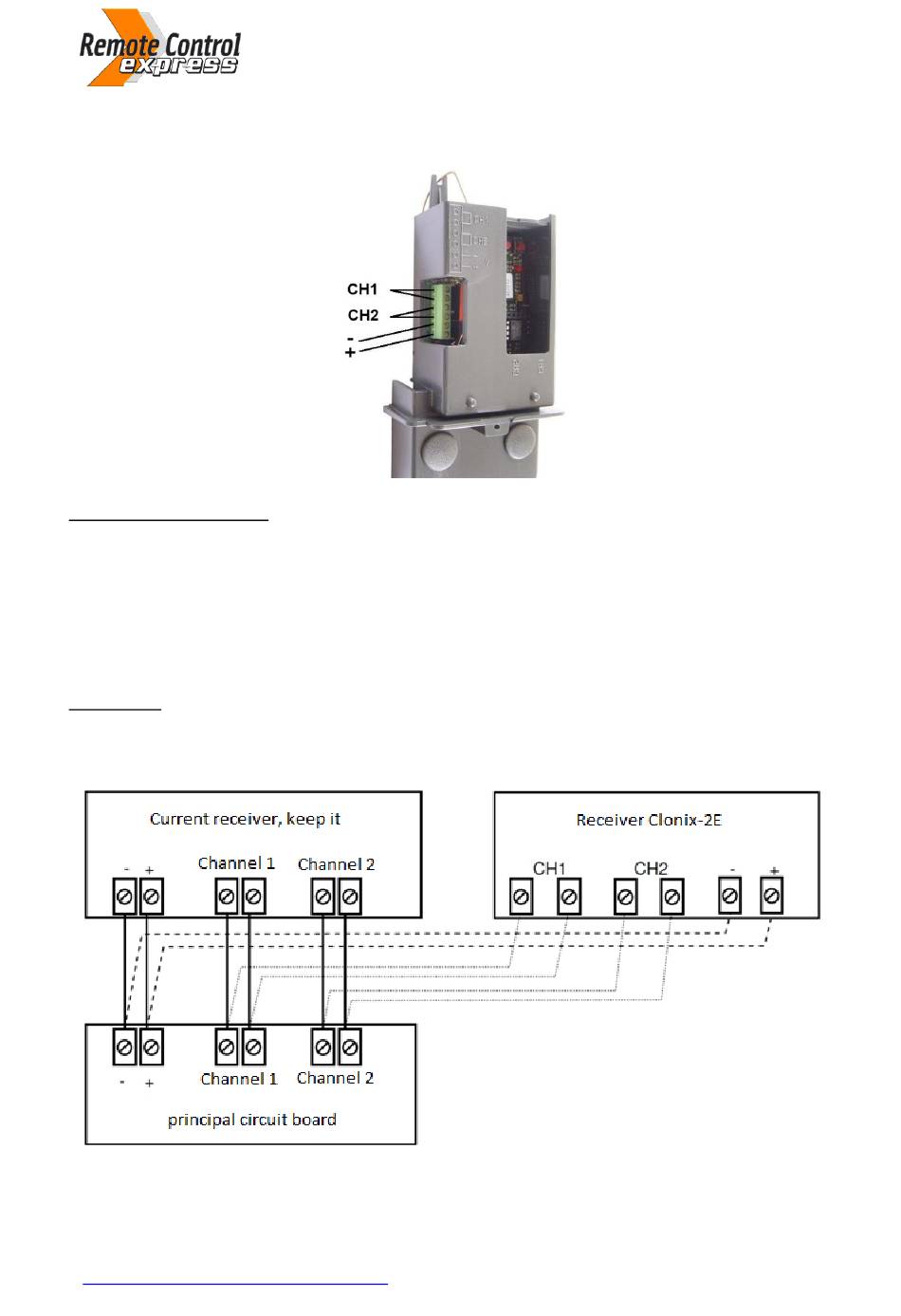

Please note: there are several ways to connect your receiver, either as a replacement for an old

receiver (check the compatibility of your remote controls with your new receiver), or in parallel with

the current receiver (example):

4. Your new receiver is programmed.

http://www.remotecontrol-express.com

Programming Manual

BFT Clonix 2E

- TEL : +44 (0) 207 399 7782 - FAX : +44 (0) 207 927 3151

Table of Contents

Do you have a question about the Clonix 2E and is the answer not in the manual?

Page 1 Programming Manual BFT Clonix 2E Assembly of your receiver: 1. Unplug your motor. Verify that you have a 12V or 24V feed with an alternating or direct current. Connect the feed between the “–” and “+” terminals (you don’t have to respect any direction if the feed is alternating).
Page 2 Programming Manual Programming of your new remote control: 1. Open the casing of your receiver. 2. On the receiver circuit board, press the SW1 button. Let it go. The Led light of the receiver blinks. 3. Press both buttons on your new remote control (both superior buttons if your remote control has 4 buttons) until the LED light of the receiver illuminates fixedly.
