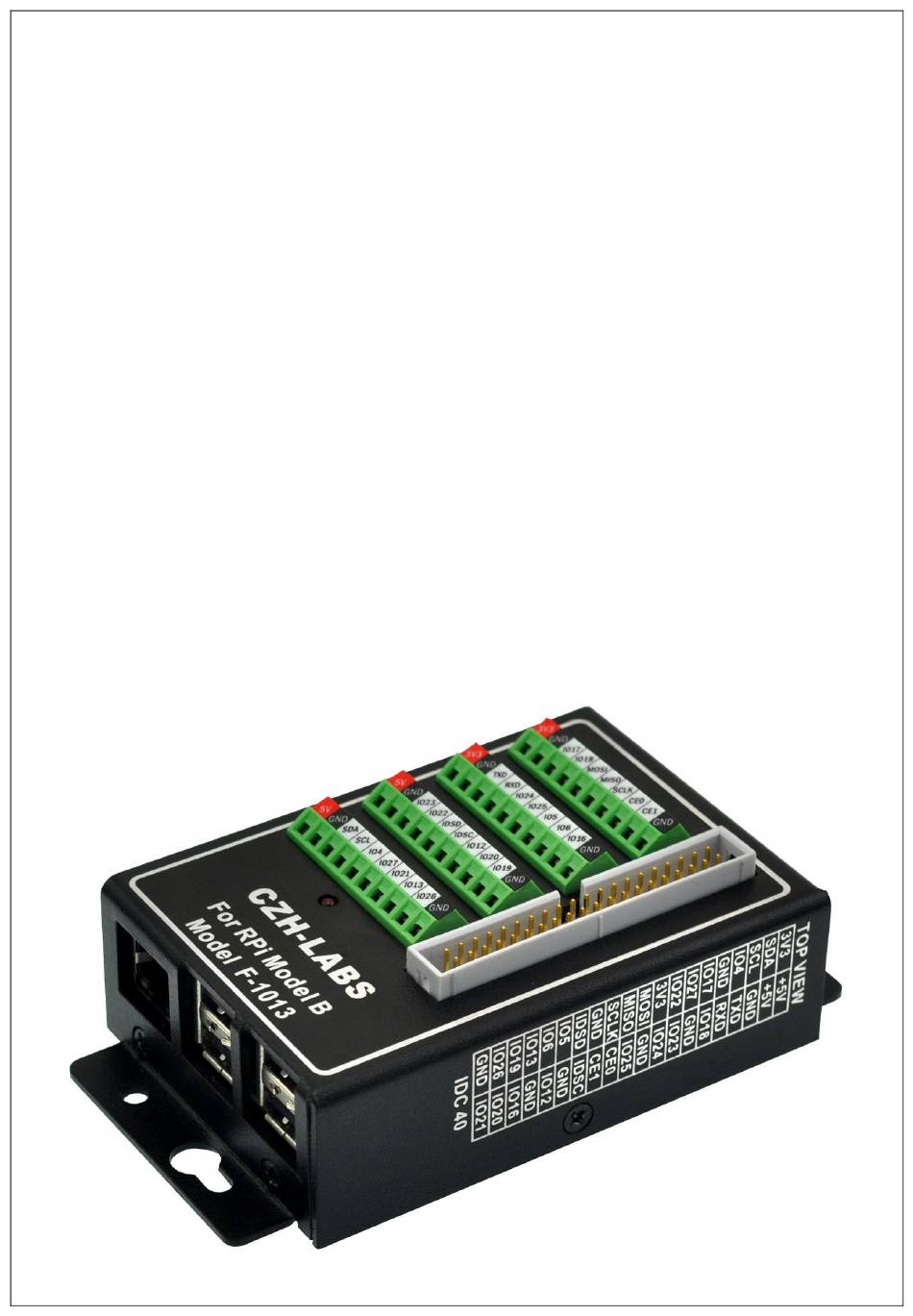

- Page 1 CZH-LABS.com Electronics-Salon RPi Screw Terminal Block Breakout Module with Aluminum Enclosure. for Raspberry Pi 1 2 3 Model B/B+ Model: F-1013...
- Page 2 Feature: RPi Screw Terminal Block Breakout Module with Aluminum Enclosure. With the adapter module you can easily extend Raspberry-Pi projects to industrial control applications. Applications for Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+ ( NOTE: the item not include Raspberry Pi).
- Page 3 Schematic:...
- Page 4 Dimensions:...
- Page 5 Assembly Step: 1, Place your Raspberry Pi on the bottom cover. 2, Install brass standoffs to Raspberry Pi holes with a slotted screwdriver.
- Page 6 3, Install the RPi terminal block board to Raspberry Pi. 4, Install M2.5x8mm screws to terminal block board holes with a phillips screwdriver.
- Page 7 5, Cover the top cover. 6, Install 5pcs black flat head screws with a phillips screwdriver.
- Page 8 7, Install DIN rail adapter bracket with a phillips screwdriver. But if you want Vertical place, you must install the bracket before step 1.
