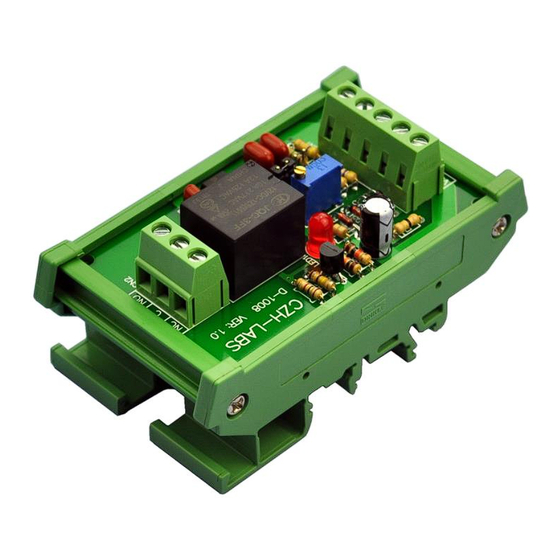

- Page 1 CZH-LABS Electronics-Salon Model: D-1008 Voltage Comparator Relay Module...
- Page 2 Features： Support internal or external reference voltage. LED indication for relay action. Hongfa JQC-3FF 10 Amp power relay. Panel mount or DIN rail mount types to choose. DIN rail mount version can support width 35 / 32 / 15mm rails.
- Page 3 For internal reference voltage mode: setting: J2 - IN shorted and J1 – EX disconnect. REF OPTION Terminal block connect power supply +12V DC. Terminal block connect power supply ground(neutral, 0V) and input signal ground. Terminal block not connect any circuit and wires. Terminal block TRIG connect input signal.
- Page 4 When the input voltage > reference voltage, relay switch disconnected and connected. when the input voltage < reference voltage, relay switch connected and disconnected.
