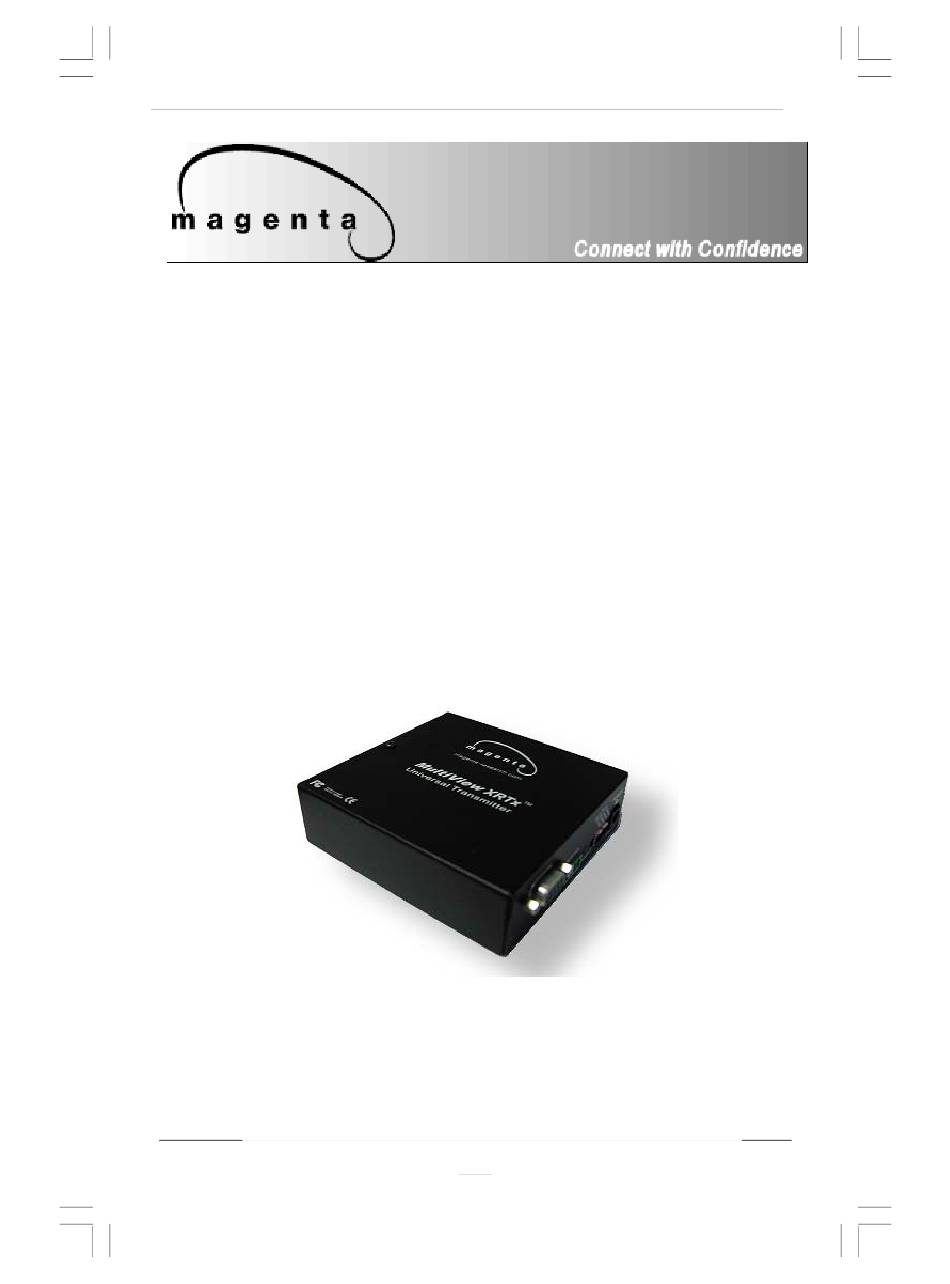

Connect with Confidence
MultiView
XRTx
Transmitter
Quick Reference
&
Setup Guide
Magenta Research
128 Litchfield Road, New Milford, CT 06776 USA
(860) 210-0546 FAX (860) 210-1758
www.magenta-research.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiView XRTx and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Magenta Research MultiView XRTx

  • Page 1 Connect with Confidence MultiView XRTx Transmitter Quick Reference & Setup Guide Magenta Research 128 Litchfield Road, New Milford, CT 06776 USA (860) 210-0546 FAX (860) 210-1758 www.magenta-research.com...
  • Page 2 This document and the Magenta Research products to which it relates, and the copyright in each, is the property of Magenta Research. Neither the document nor the products may be reproduced by any means, in whole or in part, without the prior written permission of Magenta Research.
  • Page 3 Radio Interference Regulation of Industry Canada. EUROPEAN UNION DECLARATION OF CONFORMITY The manufacturer declares that this product meets the requirements of EU Directive 2004/108//EC. This Magenta Research LTD product is Underwriters Laboratories I.T.E. listed when installed accordingly to this guide.
  • Page 4: Table Of Contents

    MAGENTA MULTIVIEW™ SERIES Contents Chapter Page Specifications....................3 Introduction ........…............4 2.1 Overview.....................4 2.2 Equipment You May Also Need............…..4 2.3 Compatible Cabling ................…...….4 3. Setup and Installation..........… ........….5 3.1 Data Mode Configuration................5 3.2 Cabling Considerations................5 3.3 Making the Connections........…..........5 3.3.1 Connections and Setup in General ........……..5 3.3.2 Connections on the Single-Port VGA/Audio……....………..…..6 3.3.3 Connections on the Single-Port VGA/RS-232………………..………7 3.3.4 Connections on the T4 VGA/Audio Transmitter...
  • Page 5: Specifications

    CHAPTER 1: Specifications 1.Specifications Cable Required: Category 5, 5e, 6 shielded or unshielded twisted pair Compliance: CE; FCC Class A, IC Class/class A, UL listed I.T.E Device Video Support: VGA, SVGA, XGA, XGA-2, RGBHV, RGB, Composite, S-Video, Component Video modes Resolution and Refresh Rate: Up to 2048 x 1536 at up to 72 Hz (receiver dependent)
  • Page 6: Introduction

    • CAT5 cable. 2.2 Compatible Cabling Magenta Research products are compatible with Cat5/5e/6 data cabling as well as skew free CAT5/5e cabling manufactured for video applications. Note that some skew free Cat5 is specific to a particular vendor and is not compatible with our products. Please ensure any skew free CAT5 cable is non-proprietary prior to purchase/installation.
  • Page 7: Setup And Installation

    CHAPTER 3: SETUP & INSTALLATION 3. Setup and Installation 3.1 Data Mode Configuration (RS232 and SA versions) XRTx 232 serial transmitters are configured in full modem bidirectional serial modes. If you are using the daisy chain receivers or a multi-output transmitter (T4,T5) a MultiView™...
  • Page 8: Connections On The Single-Port Vga/Audio

    MAGENTA MULTIVIEW™ SERIES 4. Connect the CAT5 cable to the transmitter. 5. Apply power on the transmitter. The LED should light and, if there’s a local monitor attached, a video image should appear on the monitor’s screen. At the receiver end (refer to the appropriate receiver manual): 1.
  • Page 9: Connections On The Single-Port Vga/Rs-232

    CHAPTER 3: Setup and Installation Figure 3-2. Connections on the AK600 with audio. 3.3.3 CONNECTIONS ON THE SINGLE-PORT VGA/RS-232 The Single-Port MultiView™ CAT5 Video System with RS-232 supports video and full- modem serial (RS-232) signals over CAT5 cable. You can also use the transmitters and receivers to make video-only connections without serial communications.
  • Page 10: Connections On The T4 Vga/Audio Transmitter T4 Vga/Rs-232 Transmitter

    MAGENTA MULTIVIEW™ SERIES Figure 3-4. Receiver connections on the AK600 232 3.3.4 CONNECTIONS ON THE VGA/AUDIO T4/T5 TRANSMITTERS The T4 four-port transmitter is used when the same signal is distributed to multiple display devices. You set it up and cable it the same as you would with the single-port transmitter.
  • Page 11: Connections On The Single Port Sa/Sap Series

    At this time the Magenta MultiView units that support the SA/SAP versions are the Magenta MultiView XRTx & UTx Universal Transmitters, AK600, AK1200, and XR2000 receivers. The Magenta MultiView T4, T5 transmitters do not support SA/SAP versions.
  • Page 12: Troubleshooting

    MAGENTA MULTIVIEW™ SERIES 4. Troubleshooting 4.1. Common Problems In most cases, nearly every issue with the MultiView™ CAT5 Video System can be resolved by checking the CAT5 termination and making sure that it’s pinned to the TIA/EIA 568B wiring specification. However, there may be other problems that cause the system to not perform as it’s designed.
  • Page 13 CHAPTER 4: Troubleshooting Problem: Serial communication doesn’t work correctly. Solution: • Are the serial devices connected properly? Are the serial parameters correct for source/destination devices? • Are the serial cables terminated correctly? If a null-modem cable is used, it must be placed at the receiver end. •...
  • Page 14: Appendix A. Cabling Pinouts

    MAGENTA MULTIVIEW™ SERIES Appendix A. Cabling Pinouts Table A-1. HD15 video connector. RGBHV RGBS RGsB Com- SVHS (VGA) posite (Y/C) Red + Red + Red + Green+ Green+ Green+ Blue+ Blue+ Blue+ — — — Red- Red- Red- Green- Green- Green- Blue- Blue-...
  • Page 15 APPENDIX A: Cable Pinning Appendix A. Cabling Pinouts Table A-3. DB9 Female Serial connector Full Duplex 3 wire (SA/SAP) Simplex Ground Ground Ground Table A-4. T568B CAT5 pinout...
  • Page 16: Appendix B. Setting Sync Signal Output Termination

    MAGENTA MULTIVIEW™ SERIES Appendix B. Setting Sync Signal Output Termination In some cases, it may be necessary to disable the 75-ohm termination of the video outputs on the MultiView™ CAT5 Video System units. This can be done by opening the case of each unit and installing jumpers on the circuit board. The settings disable/ enable the 75-ohm termination on individual units.
  • Page 17: Appendix C. Dc Restore For Ac Coupled Signals

    This is a result of the sync clamping on the Red and Blue channels in the MultiView. The MultiView XRTx Universal transmitter has been designed with full DC restore capability. A simple switch setting is all that is required.
  • Page 18: Appendix D. Xrtx Configuration Settings

    The factory configuration may be changed or checked by using the following jumper location diagram as well as Table D-1 for jumper settings. MultiView XRTx Jumper Locations and Settings:...
  • Page 19 APPENDIX D: XRTX Configuration Settings Table D-1: MultiView XRTx Configuration Jumper Settings Configuration Option (all options utilize 4th pair, except special configurations): RGBHV Computer Video 1 Off 1 ON 1 Off 1 ON 2 ON 2 ON 2 Off 2 ON...
  • Page 20: Appendix E. Serial Daughterboard Sdb Setting

    MAGENTA MULTIVIEW™ SERIES Appendix E. Serial Daughterboard (SDB) Settings The single-port serial transmitters and single-port and dual daisy chainable serial receivers contain an internal serial daughterboard (SDB) that can be configured for various serial modes. Multi Port Cat5 transmitters do not utilize the SDB and are configured for Mode 1 only.
  • Page 21 APPENDIX D: Serial Settings Appendix E. Serial Daughterboard (SDB) Settings, cont Table D-2. Receiver SDB jumper settings Mode Type Baud (Max) Simplex 115k 1-2 See Notes 1-2 IN (one way) 3-4 See Notes 3-4 OUT (to 1500 ft) 5-6 IN 5-6 OUT 7-8 OUT 7-8 OUT...
  • Page 22: Appendix F. Mounting Options

    MAGENTA MULTIVIEW™ SERIES Appendix F. Rackmounting Units The Rackmount Kits include brackets for mounting a single transmitter, single receiver, or a single dual daisychainable receiver. Figure F-1 shows the 1-Unit Rackmount Bracket , which can be used to mount a single unit on a wall. Figure F-2 shows the 4-Unit Rackmount Bracket, which holds four units in a 19"...
  • Page 23: Appendix G. Pollable Serial Mode

    APPENDIX F: Pollable Serial Mode Appendix G. Pollable Serial Mode The SAP pollable serial daisychainable receivers with video, audio and RS232 serial feature the ability to open a bi-directional session between a pollable transmitter and a single pollable receiver in a daisychain installation. Each pollable receiver must have a unique address set first.
  • Page 24 MAGENTA MULTIVIEW™ SERIES Appendix G. Pollable Serial Mode Address Chart...
  • Page 25 APPENDIX F: Pollable Serial Mode Appendix G. Pollable Serial Mode Address Chart (cont.)
  • Page 26: Appendix H. Ddc Modes

    MAGENTA MULTIVIEW™ SERIES Appendix H. DDC Modes The MultiView XRTx features the ability to send DDC/EDID display identifiers to the video source in order to determine display capabilities. The DDC is a data communication channel used in plug and play devices to accurately report a displays capabilities and identify the manufacturer.
  • Page 27: Appendix I. Setting Sync Mode

    APPENDIX I: Setting Sync Mode Appendix I. Setting Sync Mode The XRTx has the capability for fixed and agile sync. The default sync mode setting is for agile sync which replicates the source sync polarity signals. However some displays require a fixed sync polarity that is not possible to change at the video source. NOTE: Both transmitter and receiver must have the same settings.
  • Page 28 MAGENTA MULTIVIEW™ SERIES Magenta Research 128 Litchfield Road, New Milford, CT 06776 USA (860) 210-0546 FAX (860) 210-1758 www.magenta-research.com PN UL 5310197-01, Rev 04, Jan-2010...
