DOCUMENT OVERVIEW
INTRODUCTION ........................................................................................................................................ 1
CI-202 Specifications ............................................................................................................................... 2
Features ..................................................................................................................................................... 2
OPERATING INSTRUCTIONS .................................................................................................................. 3
Measure .................................................................................................................................................... 3
View Data ................................................................................................................................................. 4
Manipulate Files ....................................................................................................................................... 5
Transfer Data from a File ......................................................................................................................... 6
Clear a File ............................................................................................................................................... 6
Delete a File .............................................................................................................................................. 6
Create a File .............................................................................................................................................. 7
Close a File ............................................................................................................................................... 8
Set-Up Instrument..................................................................................................................................... 8
Set-Up Measure Parameter ....................................................................................................................... 8
Set-Up Scanner Thresholds ...................................................................................................................... 9
Manual Threshold Adjustment ............................................................................................................. 9
Set-Up Storage (check space or erase) ................................................................................................... 10
Set-Up Auto Store Parameter ................................................................................................................. 10
Calibrating the CI-202 ............................................................................................................................ 12
CI-202 Threshold Set-up Procedure ................................................................................................... 12
CHARGING THE BATTERY ................................................................................................................... 15
Care and Cleaning .................................................................................................................................. 15
THEORY OF OPERATION ....................................................................................................................... 16
Overview of the Parts of the Instrument ................................................................................................. 16
The Width Scanner ................................................................................................................................. 16
Computing the Parameters ...................................................................................................................... 16
Computing Aspect Ratio and Shape Factor Information ........................................................................ 17
TROUBLESHOOTING .............................................................................................................................. 18
Updating the Firmware ........................................................................................................................... 18
Technical Support ................................................................................................................................... 19
Customer Service .................................................................................................................................... 19
Frequently Asked Questions ................................................................................................................... 20
Troubleshooting the LIBUSB.dll Error .................................................................................................. 22
CID Hardware Warranty ............................................................................................................................. 23
CI-202 PRODUCTION TEST CHECK SHEET ........................................................................................ 24
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at their own expense.
Warning: This equipment has been tested and found to comply with the limits of CISPR 22 and EN 61326-1:2006 Class A. These limits are designed
to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Warning: This is a Class A product. In a domestic environment, this product may cause interference in which case the user may be required to take
adequate measures.
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for CID CI-202
Summary of Contents for CID CI-202
-
Page 1: Table Of Contents
CID Hardware Warranty ..........................23 CI-202 PRODUCTION TEST CHECK SHEET ..................24 NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 2: Introduction

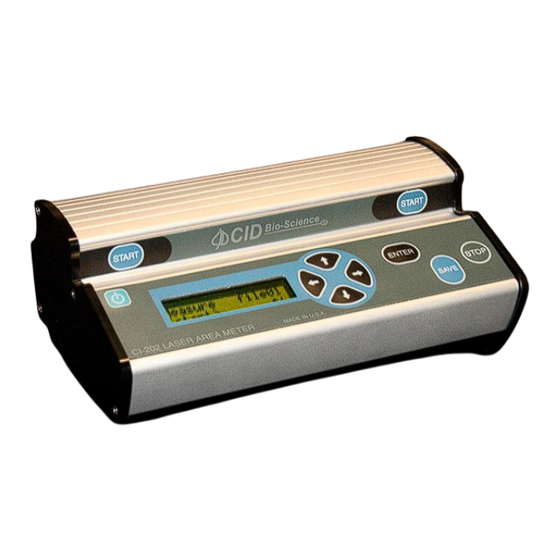

Congratulations on the purchase of your new CI-202 Portable Leaf Area Meter. Making leaf measurements in the field or laboratory is now very easy with the CI-202 Portable Leaf Area Meter. This state-of-the-art instrument has been designed to be the most portable leaf area measurement system available. Although you are anxious to use your new meter, please take the time to read this manual first. -
Page 3: Ci-202 Specifications
CI-202 Instruction Manual rev. 6/20/2016 CI-202 Specifications Scanner: 670 nm Laser Diode Max. Measuring Length 36cm Max. Measuring Width: 150mm Max. Measuring Thickness: 15mm Max. Scanning Speed: 127 mm/second Area Units: Accuracy: ±1% for samples > 10cm² Data Storage: 8,000 Measurements Computer Interface: USB 2.0... -
Page 4: Operating Instructions
1/2 second. Following this, several words will appear on the display with the word “Measure” appearing in the upper left-hand corner of the display. You are now in the CI-202 menu system. NOTE: When there are no files to store data to, the measure menu items will not be available. -
Page 5: View Data
= 44.04 cm NOTE: Because of the amount of information displayed on this screen, the CI-202 cannot display any prompts in this mode. To bring another parameter into view, press the RIGHT or LEFT arrow key. Repeatedly pressing the right arrow key will step you through area, length, width, perimeter, aspect ratio and shape factor, in that order. -
Page 6: Manipulate Files
Manipulate Files The CI-202 gives an expanded ability to organize data collection by using a file structure similar to that used by personal computers. The CI-202 has up to 256 files available. Select a unique name for each file to control the data stored in each file to optimize the amount of data stored for research that is carried out. -
Page 7: Transfer Data From A File
Transfer Data from a File Data can be downloaded from the CI-202 to a PC at any time the instrument is idle. Plug in the USB cable to both the instrument and the PC and run the CI202dfV1006.exe program on the PC (downloadable on the CID Bio-Science website). -
Page 8: Create A File
CI-202 Instruction Manual rev. 6/20/2016 To delete a file, use the UP or DOWN arrow keys to select a file. Once a file is selected to be deleted, press the START/ENTER key. The instrument will confirm the deletion with the line “<erase> <stop>”. To key. -
Page 9: Close A File
PC. Set-Up Instrument The CI-202 has a number of utility functions that allow the user to manage the instrument’s capability. These functions are accessed using the setup mode. When the instrument is in the setup mode, the top line of the display reads “Setup”... -
Page 10: Set-Up Scanner Thresholds
Press the down arrow to get back to the Measure display. Press both the left and the right arrows at the same time. The CI-202 will turn on the laser for a short period while it measures the width. Press the up arrow and then the ENTER key to get back into the setup scanner menu. -
Page 11: Set-Up Storage (Check Space Or Erase)
Pressing the START/ENTER key when “format storage” is displayed on the top line indicates the unit is in the storage format mode. Be careful! Formatting the storage space of the CI-202 will erase all data and all files. This is convenient when starting a new year’s work, for example, but treat this command with care. - Page 12 CI-202 Instruction Manual rev. 6/20/2016 In the auto store setup mode, the top line of the display will read “auto store =” on the left and either “yes” or “no” on the right. The bottom line of the display will read “stop” and “save” and the directional arrows.
-
Page 13: Calibrating The Ci-202
Each time a parameter is adjusted on the CI-202, the instrument should have its timing parameters re-computed the next time it is powered on. The CI-202 can require adjustment after extensive use in the field or downloading/updating firmware. The recalibration is very quick and simple. - Page 14 CI-202 Instruction Manual rev. 6/20/2016 7) Use the UP or DOWN arrow key to get to “Filter off.” Press STOP TWICE and then SAVE. The screen will flash “Root params saved” indicating that the root parameters have been saved. This will turn the filter off and save the changes.
- Page 15 CI-202 Instruction Manual rev. 6/20/2016 29) Use the UP or DOWN arrows to change the setting to “Measure Leaf.” Press SAVE. The screen will flash “Measure = leaf saved.” 30) Use the UP or DOWN arrow to get to “Set-up Measure.”...
-
Page 16: Charging The Battery
Care and Cleaning Treat the CI-202 as any other fine optical instrument. Keep the lens clean and free from scratches. When not in use, keep the instrument in its protective case. Use only a mild detergent and damp cloth to clean the exterior areas of the instrument. -
Page 17: Theory Of Operation
Overview of the Parts of the Instrument The CI-202 consists of a number of sub-systems. It has a laser width scanner that is capable of measuring the width of an object in its objective 500 times a second to a resolution of 0.1 mm. The entire instrument is controlled by a microcomputer system that allows the user unparalleled flexibility in configuring the instrument to make measurements accurately, easily and quickly. -
Page 18: Computing Aspect Ratio And Shape Factor Information
CI-202 Instruction Manual rev. 6/20/2016 Computing Aspect Ratio and Shape Factor Information Aspect ratio and shape factor information can be easily determined from other calculated values. These derived quantities are not stored but calculated, whenever necessary, for the purposes of display or data dumping. -
Page 19: Troubleshooting
TROUBLESHOOTING Updating the Firmware If the firmware on the CI-202 needs to be updated or is deleted, follow the steps below to reload the firmware onto the CI-202. 1. Download the ‘CI-202 Firmware UpdateV308 and Driver.zip’ from the software page: https://www.cid-inc.com/support/CI-202/software/... -
Page 20: Technical Support
Technical Support If you have a question about the CI-202 features and functions, first look in the CI-202 Instruction Manaul. If you cannot find the answer, you can access troubleshooting information and the CI-202 Product Support Forum at: http://www.cid-inc.com/leaf-area/ci-202-support.php... -
Page 21: Frequently Asked Questions
Save key. 5. What is the resolution? a. The CI-202 with filter turned off is able to reliably detect objects up to 0.2mm across. Be aware the CI-202 does not process pixels, all measurements are done based on scan times to the edges of the physical object. - Page 22 CI-202 Instruction Manual rev. 6/20/2016 a. Stay in Leaf mode, turn off the filter from Setup->Scanner menu and make a regular measurement. Use the perimeter value divided by 2 as the Root length value, this estimation is good if the width of the roots is negligible; if not, the user should use area in final computation 9.
-
Page 23: Troubleshooting The Libusb.dll Error
6. Find the device in the list of USB devices: it will most likely be named a set of numbers, such as 0425:0500: if you can’t determine which device is the CI-202, unplug it from the computer and see which one disappears. -
Page 24: Cid Hardware Warranty
Material and equipment which is not manufactured by CID Bio-Science is to be covered only by the warranty of its manufacturer. CID Bio-Science will not be liable to the Buyer for loss, damage, or injury to persons or to property by the use of equipment manufactured by other companies. -
Page 25: Ci-202 Production Test Check Sheet
CI-202 Instruction Manual rev. 6/20/2016 CI-202 PRODUCTION TEST CHECK SHEET SERIAL NUMBER: THRESHOLD SET: PRECHARGE: SCAN WIDTH: SCAN TIME: STEP LENGTH: NOTES: 1554 NE 3 Ave, Camas, WA 98607, USA Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com... - Page 26 Ave, Camas, WA 98607, USA Phone: (360) 833-8835 Fax: (360) 833-1914 e-mail: sales@cid-inc.com Web: www.cid-inc.com PRODUCT REGISTRATION CARD Please complete and return this form to CID within 30 days to validate your Warranty on Parts and Labor. Registration Information: Your Name:____________________________________ Title:__________________...
