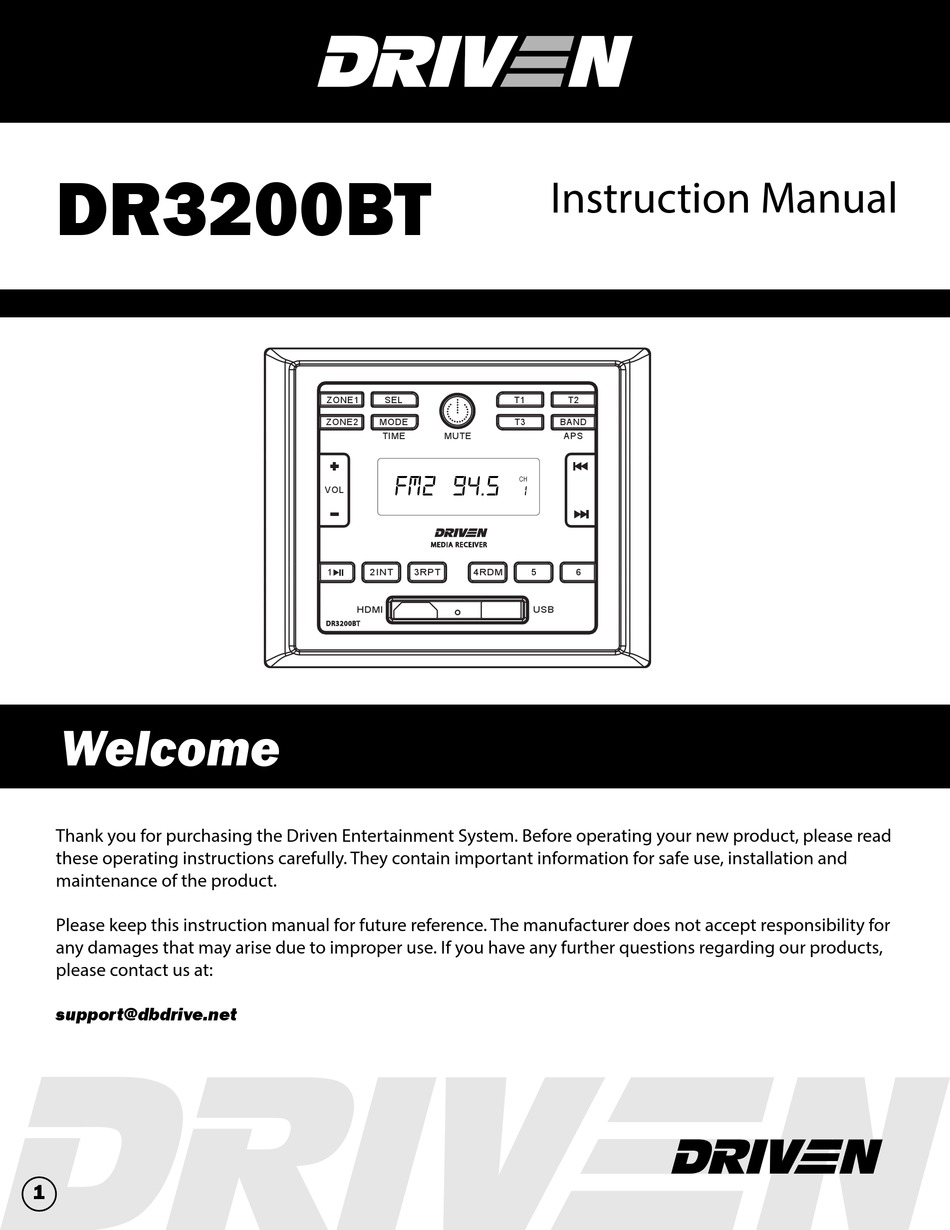

Welcome
Thank you for purchasing the Driven Entertainment System. Before operating your new product, please read
these operating instructions carefully. They contain important information for safe use, installation and
maintenance of the product.
Please keep this instruction manual for future reference. The manufacturer does not accept responsibility for
any damages that may arise due to improper use. If you have any further questions regarding our products,
please contact us at:
support@dbdrive.net
1
ZONE1
SEL
ZONE2
MODE
TIME
MUTE
FM2 94.5
VOL
MEDIA RECEIVER
1
2
INT
3RPT
4RDM
HDMI
DR3200BT
Instruction Manual
T1
T2
T3
BAND
APS
CH
1
5
6
USB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DRIVEN DR3200BT
Summary of Contents for DRIVEN DR3200BT
- Page 1 HDMI DR3200BT Welcome Thank you for purchasing the Driven Entertainment System. Before operating your new product, please read these operating instructions carefully. They contain important information for safe use, installation and maintenance of the product. Please keep this instruction manual for future reference. The manufacturer does not accept responsibility for any damages that may arise due to improper use.
-

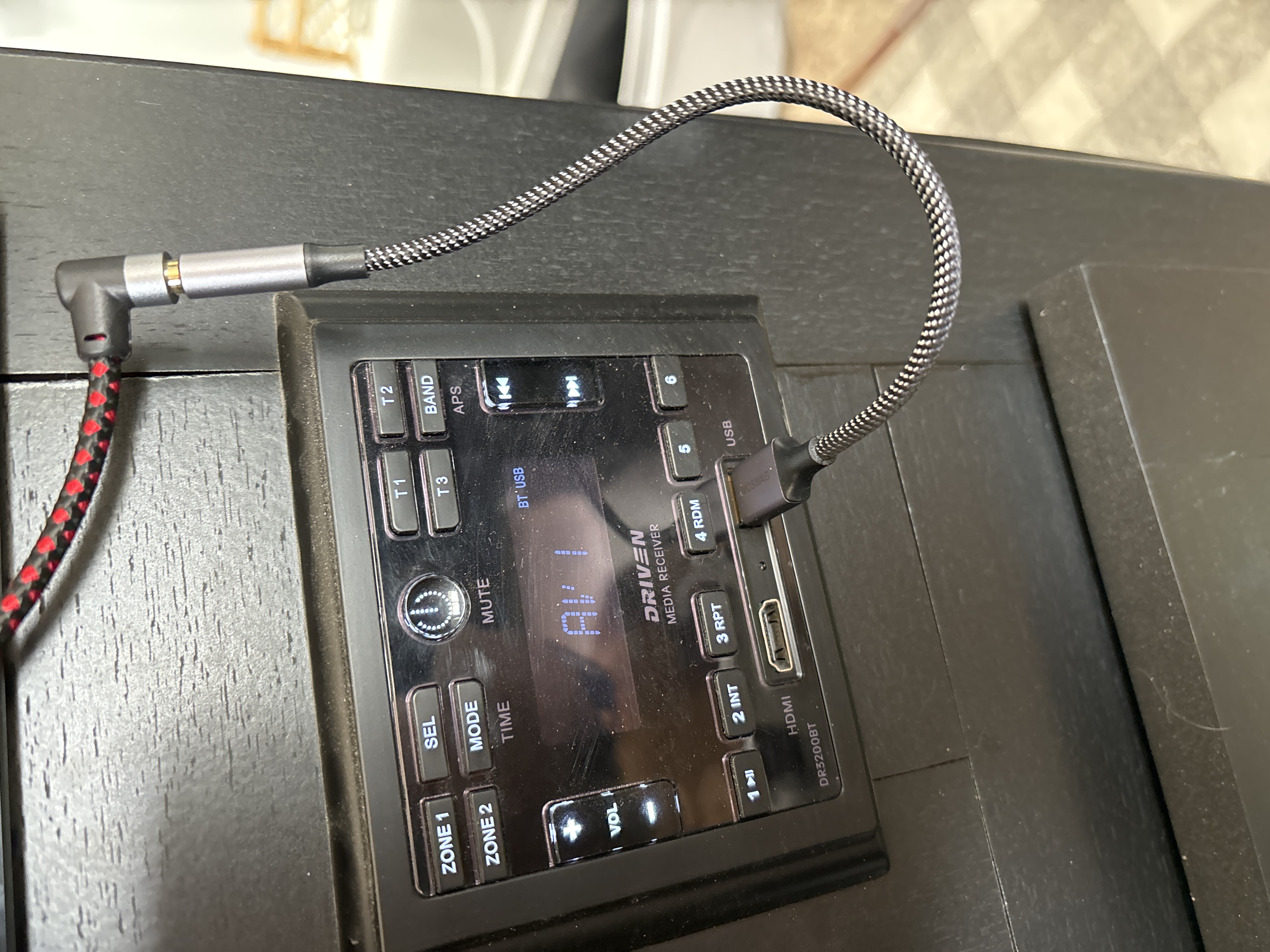

Page 2: Front Panel Diagram
BAND TIME MUTE FM2 94.5 MEDIA RECEIVER 3RPT 4RDM HDMI DR3200BT Zone 1 Track Select / Radio Station Search Speakers on/o Next Play Pause / P1 Zone 2 Radio Mode: Short press to select station P1, Long press Speakers on/o to save station in P1. -
Page 3: Remote Control Diagram
Remote Control Diagram 1.5 in (38.00mm) Note: DR3200REM optional remote available, sold seperately. Remote Control Buttons Power Zone 2 Play / Pause Mute Band Volume Mode Forward Trigger Functions Previous Zone 1... -
Page 4: Installation
Installation Location • Choose a mounting location away from humid areas, water sources, burning products or any equipment that can radiate heat. • Select an area on the wall or cabinet, which is free from cable, fuel or brake lines. •... -
Page 5: Wiring Diagram
Connections Wiring Diagram Harness Pin Connections Brown (Black) / SW- Brown / SW+ Red / ACC Grey (Black) / ZONE 1R- Audio Out Grey / ZONE 1R+ Subwoofer Out Purple (Black) / ZONE 2R- AV OUT 1 Purple / ZONE 2R+ AV OUT 2 AV OUT Pink / T3-CON... -
Page 6: Common Operation
Operation Common Operation 1. To power the unit On/O When the unit is powered Off, it may be switched On by pressing the POWER button. When the unit is switched On, press and hold the POWER button to switch it o . 2. -
Page 7: Radio Operation
8. To reset the unit - 1) Press RESET button with a cuspidal object. The unit will be reset to factory default settings. Radio Operation 1. To select radio band Press BAND button repeatedly to select a desired radio band in sequence and circulating as: -->FM1-->FM2-->FM3-->AM1-->AM2 2. -
Page 8: Bluetooth Operation
2. You should see NOT PAIR displayed on the LCD. If you see BT LINK and the Bluetooth icon is on, that means DR3200BT is already connected to another device. You can clear it by pressing and holding the BT button for ~2 seconds until NO LINK is shown, then continue with the rest of the steps below. - Page 9 DR3200BT will not auto-reconnect. • If you turn o Bluetooth from your device while the unit is connected, DR3200BT will not auto-reconnect when you turn on the device’s Bluetooth option. Some devices will try to reconnect with the last Bluetooth connected device.
-
Page 10: Specifications
Specifications AM Section General Supply DC 12V Voltage Frequency 522kHz - 1620kHz (USA) Range Current Max. 5A Consumption E ective Power 4 x 9 W RMS 40dBu Sensitivity Output (4 Ohm speakers) Number of 4 Channels Channels Preamp 1V Output Mounting Output 3.80 x 3.80 x 3.14 in... -
Page 11: Limited Waranty
(1) year. This warranty applies to the original purchase only. Driven will either repair or replace (at its own discretion) any unit that has been found to be defective and under warranty provided the defect occurs within the one (1) year warranty period.
